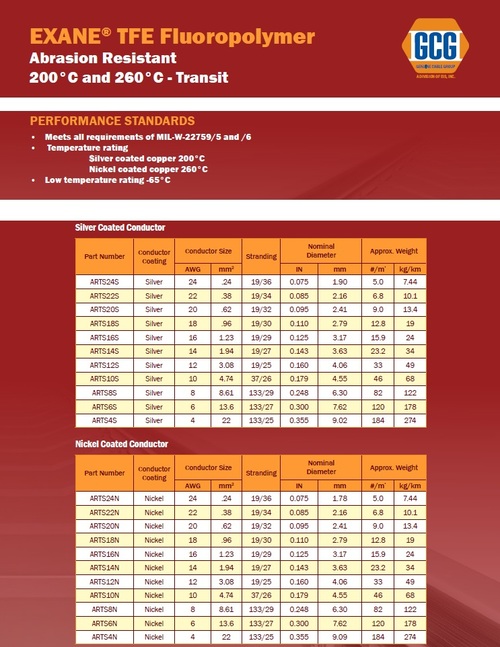

Exane-TFE Fluoropolymer
Abrasion Resistant 200°C and 260°C CAA1038, Transit wire 鐵氟龍鍍銀鍍鎳耐高溫耐磨損鐵路和運輸電線
200°C • 260°C • 600V • Standard Wall
SPEC. CAA1038
Scope
Abrasion Resistant TFE (ART) transit wires are intended for electrical or electronic use wherever a high temperature, abrasion resistant wire is required. The mineral reinforced TFE insulation provides excellent mechancial strength plus outstanding fluid and solvent resistance at high temperatures. Both wires are standard wall thickness constructions with silver-coated or nickel-coated conductors.
Features
• Superior mechanical properties
• High temperature rating
• Excellent low temperature characteristics
• Excellent resistance to most chemicals and fluids
Performance Standards
• Meets all requirements of MIL-W-22759/5 and /6
• Temperature rating
– Silver coated copper 200°C
– Nickel coated copper 260°C
• Low temperature rating -65°C
Construction
Conductors: Silver or nickel coated copper
Insulation: Standard wall, extruded abrasion resistant TFE fluoropolymer
Part Number
|
Conductor
Coating
|
Conductor Size
|
Stranding
|
Nominal
Diameter
|
Approx. Weight
|
AWG
|
mm2
|
In
|
mm
|
#/m’
|
kg/km
|
ARTS24S
|
Silver
|
24
|
.24
|
19/36
|
0.075
|
1.90
|
5.0
|
7.44
|
ARTS22S
|
Silver
|
22
|
.38
|
19/34
|
0.085
|
2.16
|
6.8
|
10.1
|
ARTS20S
|
Silver
|
20
|
.62
|
19/32
|
0.095
|
2.41
|
9.0
|
13.4
|
ARTS18S
|
Silver
|
18
|
.96
|
19/30
|
0.110
|
2.79
|
12.8
|
19
|
ARTS16S
|
Silver
|
16
|
1.23
|
19/29
|
0.125
|
3.17
|
15.9
|
24
|
ARTS14S
|
Silver
|
14
|
1.94
|
19/27
|
0.143
|
3.63
|
23.2
|
34
|
ARTS12S
|
Silver
|
12
|
3.08
|
19/25
|
0.160
|
4.06
|
33
|
49
|
ARTS10S
|
Silver
|
10
|
4.74
|
37/26
|
0.179
|
4.55
|
46
|
68
|
ARTS8S
|
Silver
|
8
|
8.61
|
133/29
|
0.248
|
6.30
|
82
|
122
|
ARTS6S
|
Silver
|
6
|
13.6
|
133/27
|
0.300
|
7.62
|
120
|
178
|
ARTS4S
|
Silver
|
4
|
22
|
133/25
|
0.355
|
9.02
|
184
|
274
|
Nickel Coated Conductor
Part Number
|
Conductor
Coating
|
Conductor Size
|
Stranding
|
Nominal
Diameter
|
Approx. Weight
|
AWG
|
mm2
|
In
|
mm
|
#/m’
|
kg/km
|
ARTS24N
|
Nickel
|
24
|
.24
|
19/36
|
0.075
|
1.78
|
5.0
|
7.44
|
ARTS22N
|
Nickel
|
22
|
.38
|
19/34
|
0.085
|
2.16
|
6.8
|
10.1
|
ARTS20N
|
Nickel
|
20
|
.62
|
19/32
|
0.095
|
2.41
|
9.0
|
13.4
|
ARTS18N
|
Nickel
|
18
|
.96
|
19/30
|
0.110
|
2.79
|
12.8
|
19
|
ARTS16N
|
Nickel
|
16
|
1.23
|
19/29
|
0.125
|
3.17
|
15.9
|
24
|
ARTS14N
|
Nickel
|
14
|
1.94
|
19/27
|
0.143
|
3.63
|
23.2
|
34
|
ARTS12N
|
Nickel
|
12
|
3.08
|
19/25
|
0.160
|
4.06
|
33
|
49
|
ARTS10N
|
Nickel
|
10
|
4.74
|
37/26
|
0.179
|
4.55
|
46
|
68
|
ARTS8N
|
Nickel
|
8
|
8.61
|
133/29
|
0.248
|
6.30
|
82
|
122
|
ARTS6N
|
Nickel
|
6
|
13.6
|
133/27
|
0.300
|
7.62
|
120
|
178
|
ARTS4N
|
Nickel
|
4
|
22
|
133/25
|
0.355
|
9.09
|
184
|
274
|
