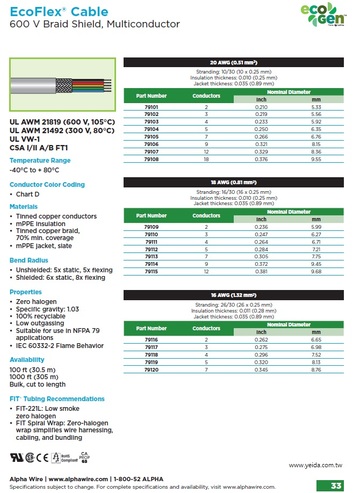

ALPHA-EcoFlex® Cable (Awg20, 18, 16) UL21819, UL21492, 600V Braid Shield, Multiconductor, Flexing recyclable Control Cable 小外徑, 質量輕, 可回收再利用, 環境友善型, 超柔軟屏蔽隔離控制電纜 (mPPE, Rated for over 1 million flex life cycles 額定超過100萬次撓曲壽命)
EcoFlex is the latest innovation in flexible control cable. Up to 32% smaller and 55% lighter than traditional PVC flexible Control cable, EcoFlex also offers up to 91% lower outgassing in a fully recyclable cable.
UL AWM 21819 (600 V, 105°C)
UL AWM 21492 (300 V, 80°C)
UL VW-1
CSA I/II A/B FT1
Temperature Range
-40°C to + 80°C
Conductor Color Coding
• Chart D
Materials
• Tinned copper conductors
• mPPE insulation
• mPPE jacket, slate
Bend Radius
• Unshielded: 5x static, 5x flexing
• Shielded: 6x static, 8x flexing
Properties
• Zero halogen
• Specific gravity: 1.03
• 100% recyclable
• Low outgassing
• Suitable for use in NFPA 79
applications
• IEC 60332-2 Flame Behavior
Availability
100 ft (30.5 m)
1000 ft (305 m)
Bulk, cut to length
FIT® Tubing Recommendations
• FIT-221L: Low smoke
zero halogen
• FIT Spiral Wrap: Zero-halogen
wrap simplifies wire harnessing,
cabling, and bundling
Part # |
AWG |
Stranding |
Construction Type |
# of Elements |
Shielding |
Jacket Diameter |
Temperature Range |
Voltage |
79101 |
20 |
10/30 |
COND |
2 |
BRAID |
0.21 |
-40 to 105 |
600 |
79102 |
20 |
10/30 |
COND |
3 |
BRAID |
0.219 |
-40 to 105 |
600 |
79103 |
20 |
10/30 |
COND |
4 |
BRAID |
0.233 |
-40 to 105 |
600 |
79104 |
20 |
10/30 |
COND |
5 |
BRAID |
0.25 |
-40 to 105 |
600 |
79105 |
20 |
10/30 |
COND |
7 |
BRAID |
0.266 |
-40 to 105 |
600 |
79106 |
20 |
10/30 |
COND |
9 |
BRAID |
0.321 |
-40 to 105 |
600 |
79107 |
20 |
10/30 |
COND |
12 |
BRAID |
0.329 |
-40 to 105 |
600 |
79108 |
20 |
10/30 |
COND |
18 |
BRAID |
0.376 |
-40 to 105 |
600 |
79109 |
18 |
16/30 |
COND |
2 |
BRAID |
0.236 |
-40 to 105 |
600 |
79110 |
18 |
16/30 |
COND |
3 |
BRAID |
0.247 |
-40 to 105 |
600 |
79111 |
18 |
16/30 |
COND |
4 |
BRAID |
0.264 |
-40 to 105 |
600 |
79112 |
18 |
16/30 |
COND |
5 |
BRAID |
0.284 |
-40 to 105 |
600 |
79113 |
18 |
16/30 |
COND |
7 |
BRAID |
0.305 |
-40 to 105 |
600 |
79114 |
18 |
16/30 |
COND |
9 |
BRAID |
0.372 |
-40 to 105 |
600 |
79115 |
18 |
16/30 |
COND |
12 |
BRAID |
0.381 |
-40 to 105 |
600 |
79116 |
16 |
26/30 |
COND |
2 |
BRAID |
0.262 |
-40 to 105 |
600 |
79117 |
16 |
26/30 |
COND |
3 |
BRAID |
0.275 |
-40 to 105 |
600 |
79118 |
16 |
26/30 |
COND |
4 |
BRAID |
0.296 |
-40 to 105 |
600 |
79119 |
16 |
26/30 |
COND |
5 |
BRAID |
0.32 |
-40 to 105 |
600 |
79120 |
16 |
26/30 |
COND |
7 |
BRAID |
0.345 |
-40 to 105 |
600 |
CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL AWM 21492, UL AWM 21819, UL VW-1
