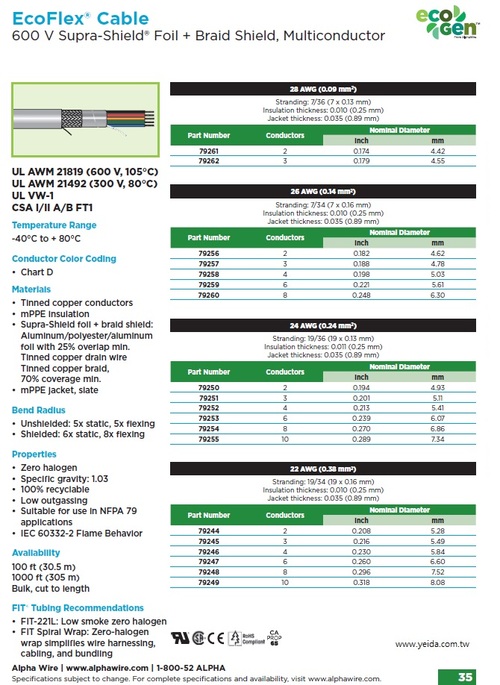

ALPHA-EcoFlex® Rated for over 1 million flex life cycles (Awg28, 26, 24, 22) UL21819, UL21492, 600V, mPPE, Supra-Shield® Foil + Braid Shield, Multiconductor, Flexing recyclable Control Cable 小外徑, 質量輕, 可回收再利用, 環境友善型, 超柔軟鋁箔+銅網屏蔽隔離控制電纜 (額定撓曲壽命超過100萬次)
(Alpha79261, Alpha79262, Alpha79256, Alpha79257, Alpha79258, Alpha79259, Alpha79260, Alpha79250, Alpha79251, Alpha79252, Alpha79253, Alpha79254, Alpha79255, Alpha79244, Alpha79245, Alpha79246, Alpha79247, Alpha79248)
EcoFlex is the latest innovation in flexible control cable. Up to 32% smaller and 55% lighter than traditional PVC flexible Control cable, EcoFlex also offers up to 91% lower outgassing in a fully recyclable cable.
UL AWM 21819 (600 V, 105°C)
UL AWM 21492 (300 V, 80°C)
UL VW-1
CSA I/II A/B FT1
Temperature Range
-40°C to + 80°C
Conductor Color Coding
• Chart D
Materials
• Tinned copper conductors
• mPPE insulation
• Supra-Shield foil + braid shield:
Aluminum/polyester/aluminum
foil with 25% overlap min.
Tinned copper drain wire
Tinned copper braid,
70% coverage min.
• mPPE jacket, slate
Bend Radius
• Unshielded: 5x static, 5x flexing
• Shielded: 6x static, 8x flexing
Properties
• Zero halogen
• Specific gravity: 1.03
• 100% recyclable
• Low outgassing
• Suitable for use in NFPA 79
applications
• IEC 60332-2 Flame Behavior
Availability
100 ft (30.5 m)
1000 ft (305 m)
Bulk, cut to length
FIT® Tubing Recommendations
• FIT-221L: Low smoke
zero halogen
• FIT Spiral Wrap: Zero-halogen
wrap simplifies wire harnessing,
cabling, and bundling
Part # |
AWG |
Stranding |
Construction Type |
# of Elements |
Shielding |
Jacket Diameter |
Temperature Range |
Voltage |
Applicable Specifications |
79244 |
22 |
19/34 |
COND |
2 |
SupraShield (Premium Foil/Braid) |
0.208 |
-40 to 105 |
600 |
79245 |
22 |
19/34 |
COND |
3 |
SupraShield (Premium Foil/Braid) |
0.216 |
-40 to 105 |
600 |
79246 |
22 |
19/34 |
COND |
4 |
SupraShield (Premium Foil/Braid) |
0.23 |
-40 to 105 |
600 |
79247 |
22 |
19/34 |
COND |
6 |
SupraShield (Premium Foil/Braid) |
0.26 |
-40 to 105 |
600 |
79248 |
22 |
19/34 |
COND |
8 |
SupraShield (Premium Foil/Braid) |
0.296 |
-40 to 105 |
600 |
79249 |
22 |
19/34 |
COND |
10 |
SupraShield (Premium Foil/Braid) |
0.318 |
-40 to 105 |
600 |
79250 |
24 |
19/36 |
COND |
2 |
SupraShield (Premium Foil/Braid) |
0.194 |
-40 to 105 |
600 |
79251 |
24 |
19/36 |
COND |
3 |
SupraShield (Premium Foil/Braid) |
0.201 |
-40 to 105 |
600 |
79252 |
24 |
19/36 |
COND |
4 |
SupraShield (Premium Foil/Braid) |
0.213 |
-40 to 105 |
600 |
79253 |
24 |
19/36 |
COND |
6 |
SupraShield (Premium Foil/Braid) |
0.239 |
-40 to 105 |
600 |
79254 |
24 |
19/36 |
COND |
8 |
SupraShield (Premium Foil/Braid) |
0.27 |
-40 to 105 |
600 |
79255 |
24 |
19/36 |
COND |
10 |
SupraShield (Premium Foil/Braid) |
0.289 |
-40 to 105 |
600 |
79256 |
26 |
7/34 |
COND |
2 |
SupraShield (Premium Foil/Braid) |
0.182 |
-40 to 105 |
600 |
79257 |
26 |
7/34 |
COND |
3 |
SupraShield (Premium Foil/Braid) |
0.188 |
-40 to 105 |
600 |
79258 |
26 |
7/34 |
COND |
4 |
SupraShield (Premium Foil/Braid) |
0.198 |
-40 to 105 |
600 |
79259 |
26 |
7/34 |
COND |
6 |
SupraShield (Premium Foil/Braid) |
0.221 |
-40 to 105 |
600 |
79260 |
26 |
7/34 |
COND |
8 |
SupraShield (Premium Foil/Braid) |
0.248 |
-40 to 105 |
600 |
79261 |
28 |
7/36 |
COND |
2 |
SupraShield (Premium Foil/Braid) |
0.174 |
-40 to 105 |
600 |
79262 |
28 |
7/36 |
COND |
3 |
SupraShield (Premium Foil/Braid) |
0.179 |
-40 to 105 |
600 |
CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL AWM 21492, UL AWM 21819, UL VW-1
