    首頁 > > ALPHA-EcoCable® Mini 小體積薄外徑電纜

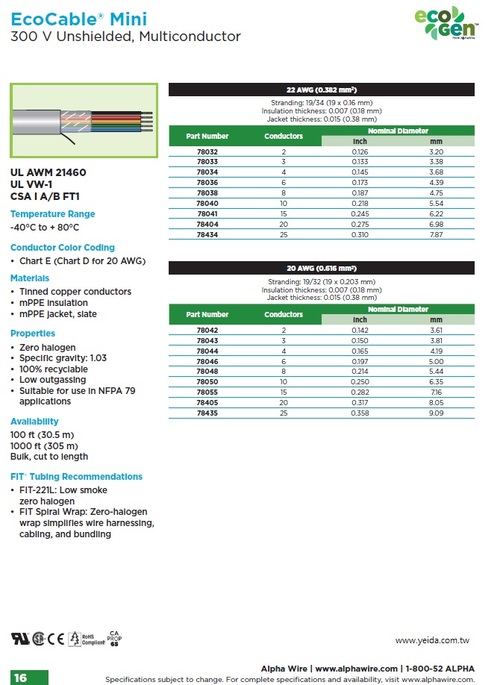

    Alpha EcoCable® Mini 300V UL21460, mPPE, Awg(22, 20)Unshielded, Multiconductor, Cable 體積小, 重量輕, 可回收再利用, 環保型, 超迷你多心控制電纜
    看原圖
    		ALPHA-78032

    Alpha EcoCable® Mini 300V UL21460, mPPE, Awg(22, 20)Unshielded, Multiconductor,
    Communication Cable 體積小, 重量輕, 可回收再利用, 環保型, 超迷你多心控制電纜

     Alpha78033, Alpha78034, Alpha78035, Alpha78036, Alpha78037, Alpha78038, Alpha78039,
    Alpha78040, Alpha78404,Alpha78434,Alpha78042, Alpha78048, Alpha78050, Alpha78055, Alpha78405,

    Alpha78435, Alpha78032,

    CA Prop 65, CE, CSA AWM I A/B, CSA FT1, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL - VW-1, UL AWM 21460

    Small Just Got Mini. EcoCable Mini recyclable cable was developed in response to our customers’ need for a smaller, lighter 300 V cable.
    • Up to 32% smaller than PVC
    • Up to 44% lighter than PVC
    • 92% lower outgassing
    than PVC
    • 100% recyclable mPPE
    insulation and jacketing
    • Contains no halogens,
    phthalates, or heavy metals
    Conductors: Stranded
    tinned copper
    Insulation: mPPE
    Jacket: mPPE, slate
    Shielding: Foil or foil + braid
    Voltage: 300 V
    Temperature Range: -40°C
    to + 80°C
    Configurations
    • Multiconductor or multipair
    • Unshielded
    • Overall foil shielded
    • Individually shielded pairs +
    overall foil shield
    • Supra-Shield® foil + braid
    • Custom and composite
    configurations available
    Approvals
    • UL AWM 21460
    • UL VW-1
    • CSA I A/B FT1
    • CE
    • RoHS
    • REACH
    • WEEE
    • Suitable for use in
    NFPA 79 applications
    • ISO 10993-5

    FIT® Tubing Recommendations
    • FIT-221L: Low smoke
    zero halogen
    • FIT Spiral Wrap: Zero-halogen
    wrap simplifies wire harnessing,
    cabling, and bundling

    Part # AWG Stranding Construction Type # of Elements Shielding Jacket Diameter Temperature Range Voltage
    78040 22  19/34  COND  10  UNSHIELDED  0.218  -40 to 80  300
    78041 22  19/34  COND  15  UNSHIELDED  0.245  -40 to 80  300
    78050 20  19/32  COND  10  UNSHIELDED  0.25  -40 to 80  300
    78055 20  19/32  COND  15  UNSHIELDED  0.282  -40 to 80  300
    78404 22  19/34  COND  20  UNSHIELDED  0.275  -40 to 80  300
    78405 20  19/32  COND  20  UNSHIELDED  0.317  -40 to 80  300
    78434 22  19/34  COND  25  UNSHIELDED  0.31  -40 to 80  300
    78435 20  19/32  COND  25  UNSHIELDED  0.358  -40 to 80  300
    78032 22  19/34  COND  2  UNSHIELDED  0.126  -40 to 80  300
    78033 22  19/34  COND  3  UNSHIELDED  0.133  -40 to 80  300
    78034 22  19/34  COND  4  UNSHIELDED  0.145  -40 to 80  300
    78035 22  19/34  PAIR  5  UNSHIELDED  0.239  -40 to 80  300
    78036 22  19/34  COND  6  UNSHIELDED  0.173  -40 to 80  300
    78038 22  19/34  COND  8  UNSHIELDED  0.187  -40 to 80  300
    78039 22  19/34  PAIR  9  UNSHIELDED  0.309  -40 to 80  300
    78042 20  19/32  COND  2  UNSHIELDED  0.142  -40 to 80  300
    78043 20  19/32  COND  3  UNSHIELDED  0.15  -40 to 80  300
    78044 20  19/32  COND  4  UNSHIELDED  0.165  -40 to 80  300
    78045 20  19/32  PAIR  5  UNSHIELDED  0.274  -40 to 80  300
    78046 20  19/32  COND  6  UNSHIELDED  0.197  -40 to 80  300
