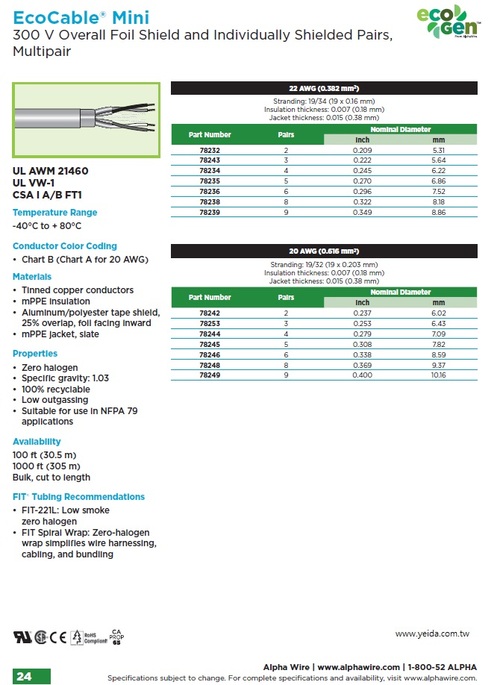

Alpha-78232
Alpha, EcoCable® Mini 300V, UL21460, smaller, lighter, Halogen Free, Foil Shielded+Individually Shielded Pairs, Recyclable mPPE Cable 體積小, 重量輕, 可回收再利用, 環保型, 超迷你多對型個別鋁箔屏蔽隔離訊號控制電纜(Awg20, Awg22 )
CA Prop 65, CE, CSA AWM I A/B, CSA FT1, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL - VW-1, UL AWM 21460
(Alpha78232, Alpha78243, Alpha78234, Alpha78235, Alpha78236, Alpha78238, Alpha78239, Alpha78242, Alpha78253, Alpha78244, Alpha78245, Alpha78246, Alpha78248, Alpha78249 )
EcoCable® Mini is the next generation of 300 V cables. By combining better performance and minimum environmental impact, EcoCable Mini uses its mPPE insulation and jacketing to provide all of the advantages in a smaller, lighter cable.
UL AWM 21460
UL VW-1
CSA I A/B FT1
Temperature Range
-40°C to + 80°C
Conductor Color Coding
• Chart B (Chart A for 20 AWG)
Materials
• Tinned copper conductors
• mPPE insulation
• mPPE jacket, slate
• Aluminum/polyester tape shield,
25% overlap, foil facing inward,
and 26 AWG stranded drain wire
Properties
• Zero halogen
• Specific gravity: 1.03
• 100% recyclable
• Low outgassing
• Suitable for use in NFPA 79
applications
FIT® Tubing Recommendations
• FIT-221L: Low smoke
zero halogen
• FIT Spiral Wrap: Zero-halogen
wrap simplifies wire harnessing,
cabling, and bundling
Part # |
AWG |
Stranding |
Construction Type |
# of Elements |
Shielding |
Jacket Diameter |
Temperature Range |
Voltage |
78232 |
22 |
19/34 |
PAIR |
2 |
Ind/Overall Foil |
0.209 |
-40 to 80 |
300 |
78234 |
22 |
19/34 |
PAIR |
4 |
Ind/Overall Foil |
0.245 |
-40 to 80 |
300 |
78235 |
22 |
19/34 |
PAIR |
5 |
Ind/Overall Foil |
0.27 |
-40 to 80 |
300 |
78236 |
22 |
19/34 |
PAIR |
6 |
Ind/Overall Foil |
0.296 |
-40 to 80 |
300 |
78238 |
22 |
19/34 |
PAIR |
8 |
Ind/Overall Foil |
0.322 |
-40 to 80 |
300 |
78239 |
22 |
19/34 |
PAIR |
9 |
Ind/Overall Foil |
0.349 |
-40 to 80 |
300 |
78242 |
20 |
19/32 |
PAIR |
2 |
Ind/Overall Foil |
0.237 |
-40 to 80 |
300 |
78243 |
22 |
19/34 |
PAIR |
3 |
Ind/Overall Foil |
0.222 |
-40 to 80 |
300 |
78244 |
20 |
19/32 |
PAIR |
4 |
Ind/Overall Foil |
0.279 |
-40 to 80 |
300 |
