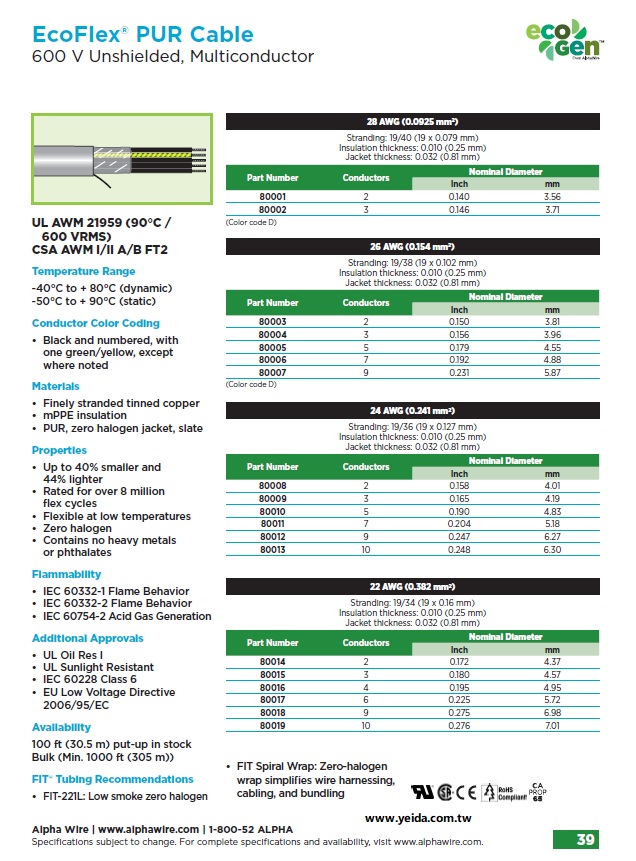

ALPHA-80001
ALPHA-80001, UL21959 600V mPPE, zero halogen Awg28x2C EcoFlex® PUR Cable 抗UV, 無鹵, 超柔耐磨環保電纜 (超過800萬次)
UL AWM 21959 (90°C /
600 VRMS)
CSA AWM I/II A/B FT2
Temperature Range
-40°C to + 80°C (dynamic)
-50°C to + 90°C (static)
Conductor Color Coding
• Black and numbered, with
one green/yellow, except
where noted
Materials
• Finely stranded tinned copper
• mPPE insulation
• PUR, zero halogen jacket, slate
Properties
• Up to 40% smaller and
44% lighter
• Rated for over 8 million
flex cycles
• Flexible at low temperatures
• Zero halogen
• Contains no heavy metals
or phthalates
Flammability
• IEC 60332-1 Flame Behavior
• IEC 60332-2 Flame Behavior
• IEC 60754-2 Acid Gas Generation
Additional Approvals
• UL Oil Res I
• UL Sunlight Resistant
• IEC 60228 Class 6
• EU Low Voltage Directive
2006/95/EC
EcoFlex PUR電纜提供耐磨,抗紫外線和耐油堅韌,零鹵素聚氨酯外套。 要看小40%,輕44%比其他600 V連續柔性電纜。
EcoFlex PUR cable provides
abrasion, UV, and oil resistance
with a tough, zero-halogen
polyurethane jacket. It’s up to
40% smaller and 44% lighter
than other 600 V continuous
flex cables.
• Up to 40% smaller and
44% lighter
• Rated for over 8 million
flex cycles
• Flexible at low temperatures
• Unshielded or braid shielding
• 28 to 10 AWG
• Zero halogen
• Contains no heavy metals
or phthalates
• 2 to 36 conductors
Conductors: Finely stranded
tinned copper (IEC 60228
Conductors, Class 6)
Insulation: mPPE
Jacket: PUR, zero halogen, slate
Shi elding:
Unshielded
Tinned copper braid,
85% coverage
Voltage: 600 V (UL)
Temperature Range:
-40°C to + 80°C (dynamic)
-50°C to + 90°C (static)
Availability:
100’ put-up in stock
Bulk (Min. 1000’)
Configurations
• Unshielded multiconductor
• Braid shielded multiconductor
• Custom configuration
available
Approvals
• UL AWM 21959 (90°C /
600 VRMS)
• UL Oil Res I
• UL Sunlight Resistant
• CSA AWM I/II A/B FT2
• IEC 60332-1 Flame Behavior
• IEC 60332-2 Flame Behavior
• IEC 60754-2 Acid Gas
Generation
• IEC 60228 Class 6
• EU Low Voltage Directive
2006/95/EC
• RoHS
• REACH
