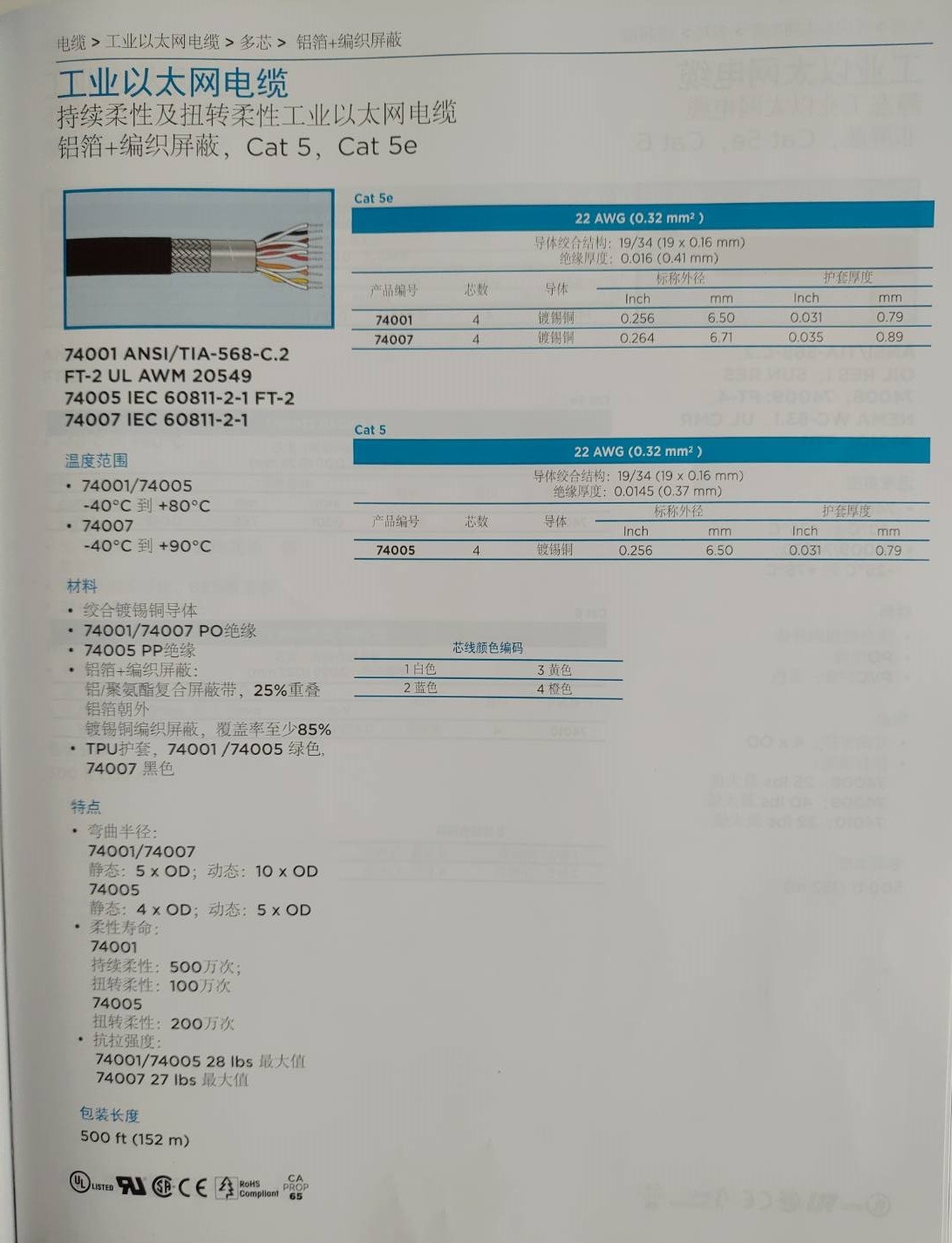

ALPHA74001, 4C 22 AWG, INDUSTRIAL ETHERNET PROFINET TYPE C, SHIELDED ANSI/TIA-568-C.2 CAT5E FT2, NFPA 79, 高達 500 萬次的撓曲壽命CAT-5E Awg22 x 4C 持續柔性及扭轉柔性工業乙太網路雙層屏蔽電纜

ALPHA-74001

ALPHA-74001
ALPHA74001, 4C 22 AWG, INDUSTRIAL ETHERNET PROFINET TYPE C, SHIELDED ANSI/TIA-568-C.2 CAT5E FT2, NFPA 79, 高達 500 萬次的撓曲壽命CAT-5E Awg22 x 4C 持續柔性及扭轉柔性工業乙太網路雙層屏蔽電纜

撓曲以太網電纜 74001

擁有高達 1000 萬次的撓曲壽命，Alpha Essentials Flex Ethernet Cat 5e 電纜結合了先進的以太網通信技術以及堅固耐用的 TPE 護套，使其成為苛刻應用的完美解決方案。

連續撓曲，撓曲壽命高達 1000 萬次
-40℃ 至 80℃（靜態），-10 至 80℃（動態）
彎曲半徑：8X（靜態），10X（動態）
符合 ISO/IEC 11801 Category 5e Patch Cable、ICEA 661 Category 5 Patch & NEMA WC-63.1 Category 5E Patch 要求
耐紫外線、耐液
適用於 NFPA 79 應用

Construction

Diameters (In)

1) Component 1

1 X 4 COND

a) Conductor

22 (19/34) AWG Tinned Copper

0.032

b) Insulation

0.016" Wall, Nom. Polyolefin

0.064

(1) Color(s)

Cond	Color	Cond	Color	Cond	Color
1	WHITE	3	YELLOW
2	BLUE	4	ORANGE

c) Cabling

4 COND Cabled

(1) Twists:

6.9 Twists/foot (min)

d) Jacket

0.005" Wall, Nom.,FRNHPO

0.166

(1) Color(s)

WHITE

2) Shield:

Alum/Mylar Tape, 25% Overlap, Min.

a) Foil Direction

Foil Facing Out

b) Braid

Tinned Copper,85% Coverage, Min.

3) Jacket

0.031" Wall, Nom., TPU (ZH)

0.256 (0.271 Max.)

a) Color(s)

GREEN

b) Jacket Separator

Nonwoven Polyester Tape, 25% Overlap, Min.

c) Print

ALPHA WIRE-* P/N 74001 4C 22 AWG
INDUSTRIAL ETHERNET PROFINET TYPE C
SHIELDED ANSI/TIA-568-C.2 CAT5E VERIFIED FT2
CE ROHS (SEQ FOOTAGE)
* = Factory Code

1) UL	AWM/STYLE 20549	80°C / 300 V_RMS
2) CSA International	FT2
3) IEC	EN 60811-2-1 Oil Resistance
4) Other	ISO/IEC 11801 Category 5
5) CE:	EU Low Voltage Directive 2014/35/EC

1) CE: EU Directive 2011/65/EU(RoHS2):
	This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011and the amending Directive 2015/863/EU of 4 June 2015 . No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C.
2) REACH Regulation (EC 1907/2006):
	This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration.

Physical & Mechanical Properties

1) Temperature Range

-40 to 80°C

2) Bend Radius

5X Cable Diameter(static), 10X Cable Diameter(dynamic)

3) Pull Tension

28 Lbs, Maximum

4) Continuous Flex

5 million cycles

5) Torsional Flex

1 million cycles

Electrical Properties

(For Engineering purposes only)

1) Max. operating voltage UL

300 V_RMS

2) Test voltage wire-wire/wire-screen

2.5kVdc

3) Maximum conductor DC-resistance @ 20°C

57.1 Ω/km

4) Transfer impedance @ 10MHz

< 10 mOhm/m

5) Nom. velocity of propagation

68 %

6) Delay

< 5.3 ns/m

7) Impedance @ 1 – 100 MHz

100 ± 15 Ω

8) ISO/IEC 11801 ed. 2.0, Cat.5 as a minimum.

Frequency(MHz)	Max. Attenuation(dB/100m)	Min. NEXT(dB)	Min. ELFEXT(dB/100m)	Min. RL(dB)
1	2.1	65	64	-
4	4	56	52	23
10	6.3	50	44	25
16	8	47	40	25
31.25	11.4	43	34	23.6
62.5	16.5	38	28	21.5
100	21.3	35	24	20.1
