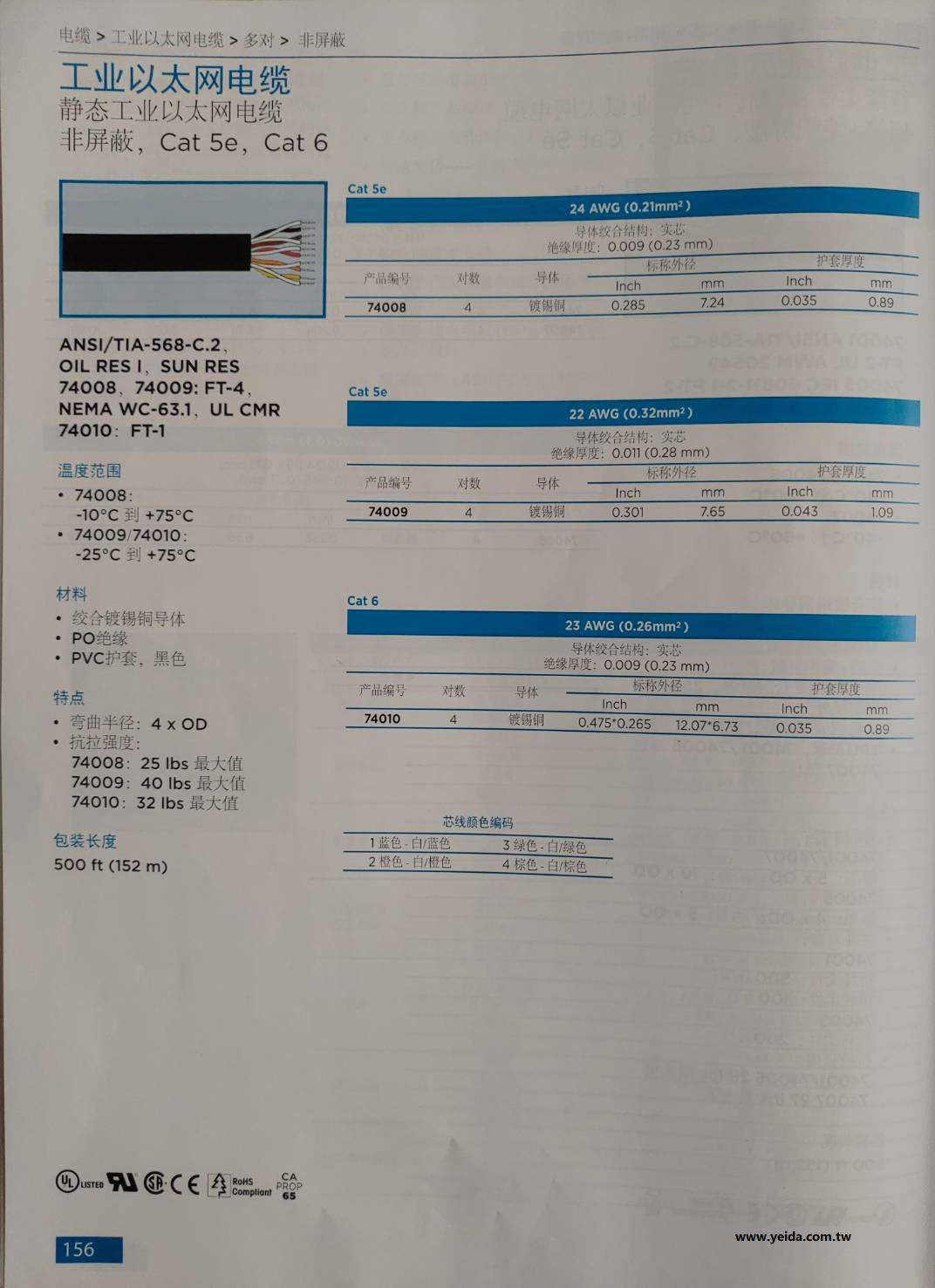

ALPHA74008, UTP 4PR24 AWG VERIFIED (UL) CAT 5E CMR 靜態工業以太網路電纜

ALPHA-74008

ALPHA-74008
ALPHA74008, UTP 4PR24 AWG VERIFIED (UL) CAT 5E CMR 靜態工業以太網路電纜

ISO/IEC 11801 CAT 5E
SUN RES OIL RES II --- US PATENT 6273977, 5821467

Alpha Essentials工業以太網系列由10種結構組成，全部與RJ45連接器完全兼容。擴展涵蓋了廣泛的類別，包括CAT 5，CAT 5e，CAT 6和CAT7。現在擴展的產品包括CAT 5e LSZH結構（74007）和扁平CAT 6結構（74010），非常適合有限的空間。電纜的導體尺寸為26-22 AWG，溫度範圍為-40°C至+ 90°C。

Alpha Wire的工業以太網電纜是機器人，醫療，自動化和運輸行業中應用的理想解決方案。該系列包括各種撓性電纜（連續，扭轉和中等撓性）和認證（VW-1，EN 50173，ISO / IEC 11801等）。可用的外套材料包括ZH-PUR，PVC和TPE。

鋁箔/編織，TC編織和非屏蔽選項
PO，PP和PE（泡沫皮）絕緣
鍍錫銅，裸銅和銅合金導體
黑色和綠色（74001＆74005）夾克顏色選擇

Construction

Diameters (In)

1) Component 1

1 X 4 PAIR

a) Conductor

24 (SOLID) AWG Bare Copper

0.020

b) Insulation

0.009" Wall, Nom. Polyolefin

0.035

(1) Color(s)

Pair	Color	Pair	Color	Pair	Color
1	BLUE - WHITE/BLUE	3	GREEN - WHITE/GREEN
2	ORANGE - WHITE/ORANGE	4	BROWN - WHITE/BROWN

c) Pair

2/Cond Cabled Together

(1) Twists:

Staggered Lays

d) Cabling

4 PAIR Cabled

(1) Twists:

4.8 Twists/foot (min)

e) Jacket

0.018" Wall, Nom.,PVC

0.202

(1) Color(s)

BLUE

2) Jacket

0.035" Wall, Nom.,PVC

0.285 (0.299 Max.)

a) Color(s)

BLACK

b) Ripcord

1 End 810 Denier Nylon

c) Print

ALPHA WIRE-* P/N 74008 4PR24 AWG VERIFIED (UL)
CAT 5E CMR OR C(UL) CMR --- ISO/IEC 11801 CAT 5E
SUN RES OIL RES II --- US PATENT 6273977, 5821467
CE ROHS (2 FT, 7 DIGIT SEQUENTIAL NUMBER) FT
[Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]
* = Factory Code

1) UL	CMR	75°C
	OIL RES I/II
2) CSA International	C(UL) TYPE CMR	75°C
	FT4
3) Other	ISO/IEC 11801 Category 5e Horizontal Cable
	TIA-568-C.2 Cat5e
	NEMA WC-63.1 Category 5e
4) CE:	EU Low Voltage Directive 2014/35/EC

1) CE: EU Directive 2011/65/EU(RoHS2):
	This product complies with European Directive 2011/65/EU (RoHS Directive) of the European Parliament and of the Council of 8 June 2011and the amending Directive 2015/863/EU of 4 June 2015 . No Exemptions are required for RoHS Compliance on this item. Consult Alpha Wire's web site for RoHS C of C.
2) REACH Regulation (EC 1907/2006):
	This product does not contain Substances of Very High Concern (SVHC) listed on the European Union's REACH candidate list in excess of 0.1% mass of the item. For up-to-date information, please see Alpha's REACH SVHC Declaration.
3) California Proposition 65:	Exempt from warning labels based on the Consent Judgment. Please see Alpha's CA Prop 65 Statement for more information.

Physical & Mechanical Properties

1) Temperature Range

-10 to 75°C

2) Bend Radius

4X Cable Diameter

3) Pull Tension

25 Lbs, Maximum

4) Sunlight Resistance

Yes

5) Cable Weight

30 Lbs/1000Ft

Electrical Properties

(For Engineering purposes only)

1) Voltage Rating

300 V_RMS

2) Characteristic Impedance

100 Ω +/- 15

3) Mutual Capacitance

15 pF/ft @1 kHz, Nominal

4) Velocity of Propagation

70 %

5) Conductor DCR

27.4 Ω/1000ft @20°C, Nominal

Frequency(MHz)	Max. Attenuation(dB/100m)	Min. NEXT(dB)	Min. PSNEXT(dB)	Min. ACR(dB)	Min. PSACR(dB)
1	2	65.3	65.3	63.3	63.3
4	4	56.3	56.3	52.3	52.3
8	5.7	51.8	51.8	46.1	46.1
10	6.4	50.3	50.3	43.9	43.9
16	8.1	47.3	47.3	39.1	39.1
20	9.2	45.8	45.8	35.2	35.2
25	10.3	44.3	44.3	34.1	34.1
31.25	11.6	42.9	42.9	31.3	31.3
62.5	16.8	38.4	38.4	21.6	21.6
100	21.7	35.3	35.3	17.1	17.1

Frequency (MHz)	Input (unfitted) Imp. (Ohms)	Fitted Imp. (Ohms)	Min. ELFEXT(dB)	Min. PSELFEXT(dB)	Min. RL(dB)
1	100±12	100±10	63.8	60.8	20
4	100±12	100±10	51.7	48.7	23
8	100±12	100±10	45.7	42.7	24.5
10	100±12	100±10	43.8	40.8	25
16	100±12	100±10	39.7	36.7	25
20	100±12	100±10	37.7	34.7	25
25	100±15	100±10	35.8	32.8	24.3
31.25	100±15	100±10	33.9	30.9	23.6
62.5	100±15	100±10	27.8	24.8	21.5
100	100±15	100±10	23.8	20.8	20.1
