    Hosiwell-C-RG11-QS 7C 100% 雙鋁網雙鋁箔同軸電纜
    看原圖
    HOSIWELL-C-RG11-QS


    商品編號: Hosiwell-C-RG11-QS

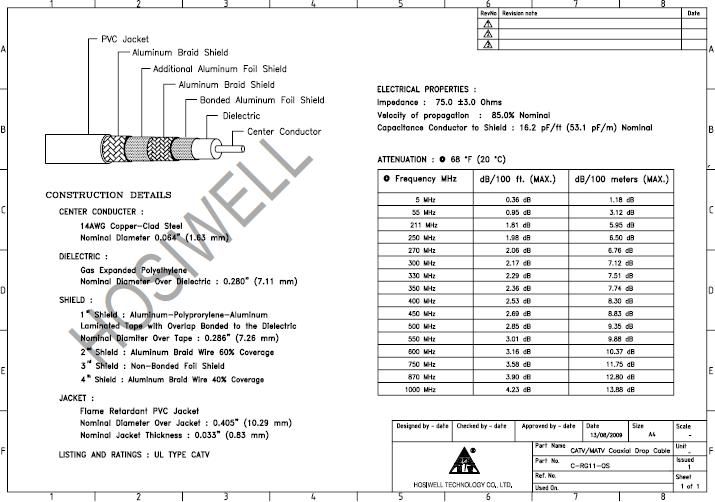

    Hosiwell-C-RG11-QS 7C 100% 雙鋁網雙鋁箔同軸電纜


    Bonded foil, 60% braid, non-bonded tape, 40% braid, PVC jacket , 14 AWG, 1C, 1/1.63 mm.
    Product Description
    Application :
    RG 11 drop cable suitable for CATV/MATV, Vroadband, HDTV and Satellite Broadcasting Transmission use. RG 11 can be used as trunk cable.

    Standard Construction :
    14 AWG (1.63 mm (0.064 in.)) copper covered steel center conductor; gas expanded polyethylene dielectric; inner shield aluminum-polypropylene-aluminum laminated tape with overlap bonded to dielectric; outer shield of 34 AWG (0.16 mm) bare aluminum braid wire; jacket of black PVC (LSZH optional) Nominal outside diameter is 10.03 mm. (0.395 in.). Messenger Breaking Strength (Min) is 166 kgf.
