    首頁 > > LAPP- Special applications工業級連接線

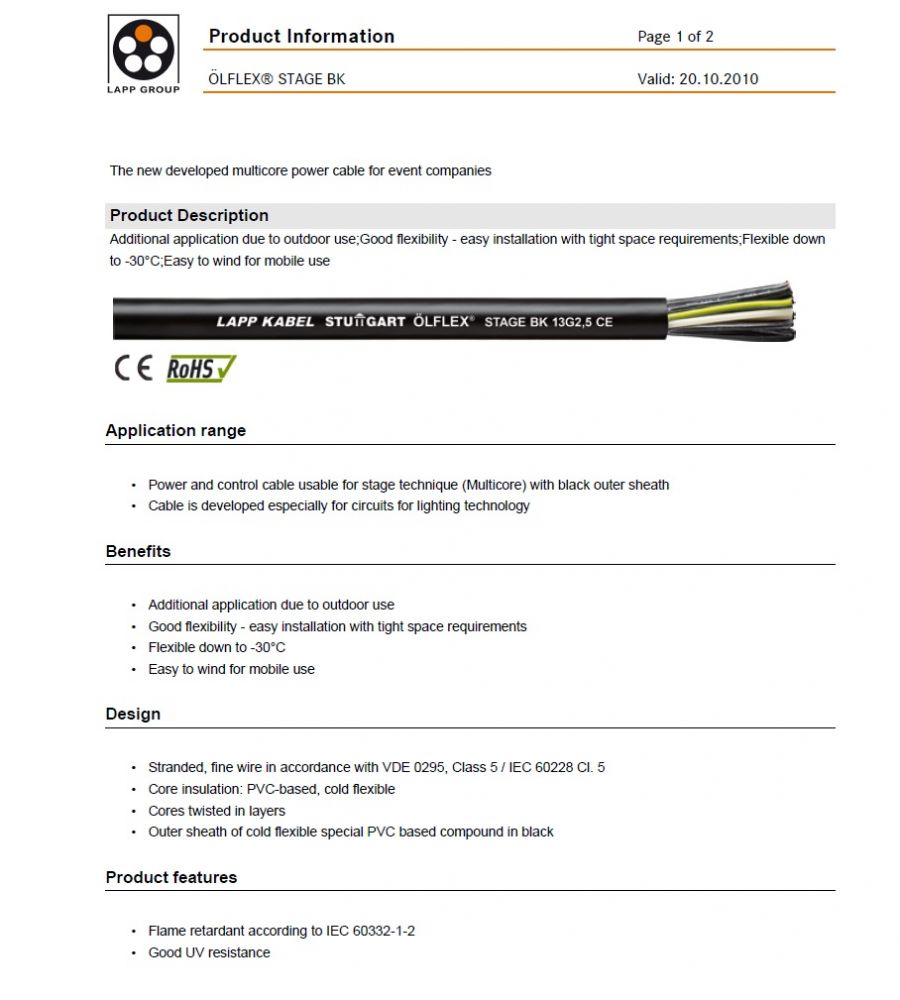

    LAPP- ÖLFLEX®  STAGE BK 工業級(超柔移動式抗紫外線)連接線 Additional application due to outdoor use; Good flexibility - easy installation with tight space requirements; Flexible down to -30°C; Easy to wind for mobile
    看原圖
    5318544

    商品編號: LAPP-OLFLEX-STAGE-BK

    LAPP- ÖLFLEX® STAGE BK 工業級(超柔移動式抗紫外線)連接線 Additional application due to outdoor use; Good flexibility - easy installation with tight space requirements; Flexible down to -30°C; Easy to wind for mobile

    The new developed multicore power cable for event companies

    Additional application due to outdoor use; Good flexibility - easy installation with tight space requirements; Flexible down to -30°C; Easy to wind for mobile use

    Application range

    • Power and control cable usable for stage technique (Multicore) with black outer sheath
    • Cable is developed especially for circuits for lighting technology
    Part number Number of cores and mm² per conductor Number of cores and MCM per conductor Outer diameter in mm Copper index kg/km Weight kg/km
    ÖLFLEX® STAGE BK
    3036877 13G1,5   13,2 187.6 325
    3036878 17G1,5   14,8 244.6 407
    3036879 13G2,5   16,3 312 482
    3036880 17G2,5   18,2 408 639



    Design

    • Stranded, fine wire in accordance with VDE 0295, Class 5 / IEC 60228 Cl. 5
    • Core insulation: PVC-based, cold flexible
    • Cores twisted in layers
    • Outer sheath of cold flexible special PVC based compound in black

    Product features

    • Flame retardant according to IEC 60332-1-2
    • Good UV resistance
