    ALPHA-PIF-200, SF-200 -70°C to +200°C Natural Silicone-Coated Fiberglass Sleeving 超柔軟防热和抗腐蚀阻燃和机械磨损矽膠塗玻璃纖維套管
    看原圖
    		ALPHA-PIF-200



    商品編號: ALPHA-PIF-200

    ALPHA-PIF-200, SF-200 -70°C to +200°C Natural Silicone-Coated Fiberglass Sleeving 超柔軟防热和抗腐蚀阻燃和机械磨损矽膠塗玻璃纖維套管


    Silicone-Coated Fiberglass Sleeving
    　

    PIF-200, SF-200

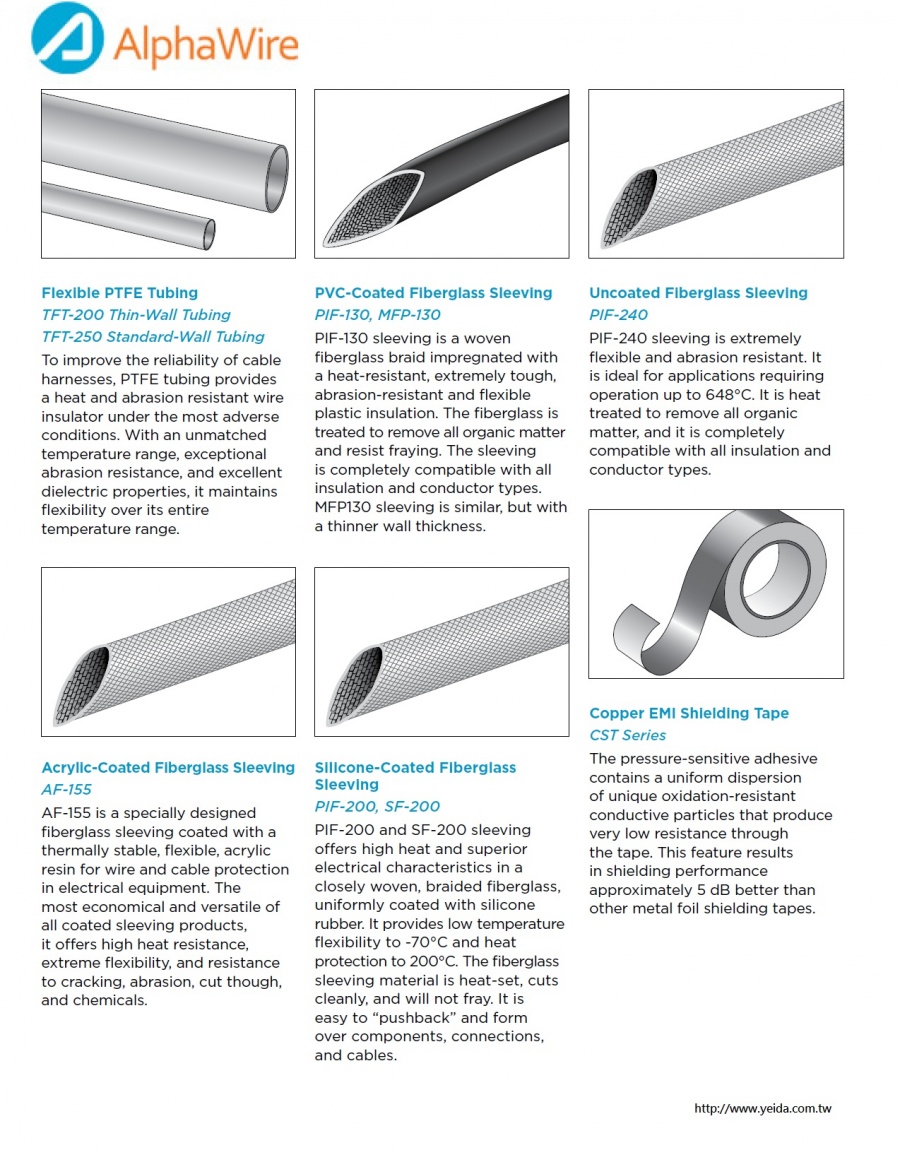

    PIF-200 and SF-200 sleeving


    offers high heat and superior
    electrical characteristics in a
    closely woven, braided fiberglass,
    uniformly coated with silicone
    rubber. It provides low temperature
    flexibility to -70°C and heat
    protection to 200°C. The fiberglass
    sleeving material is heat-set, cuts
    cleanly, and will not fray. It is
    easy to “pushback” and form
    over components, connections,
    and cables.

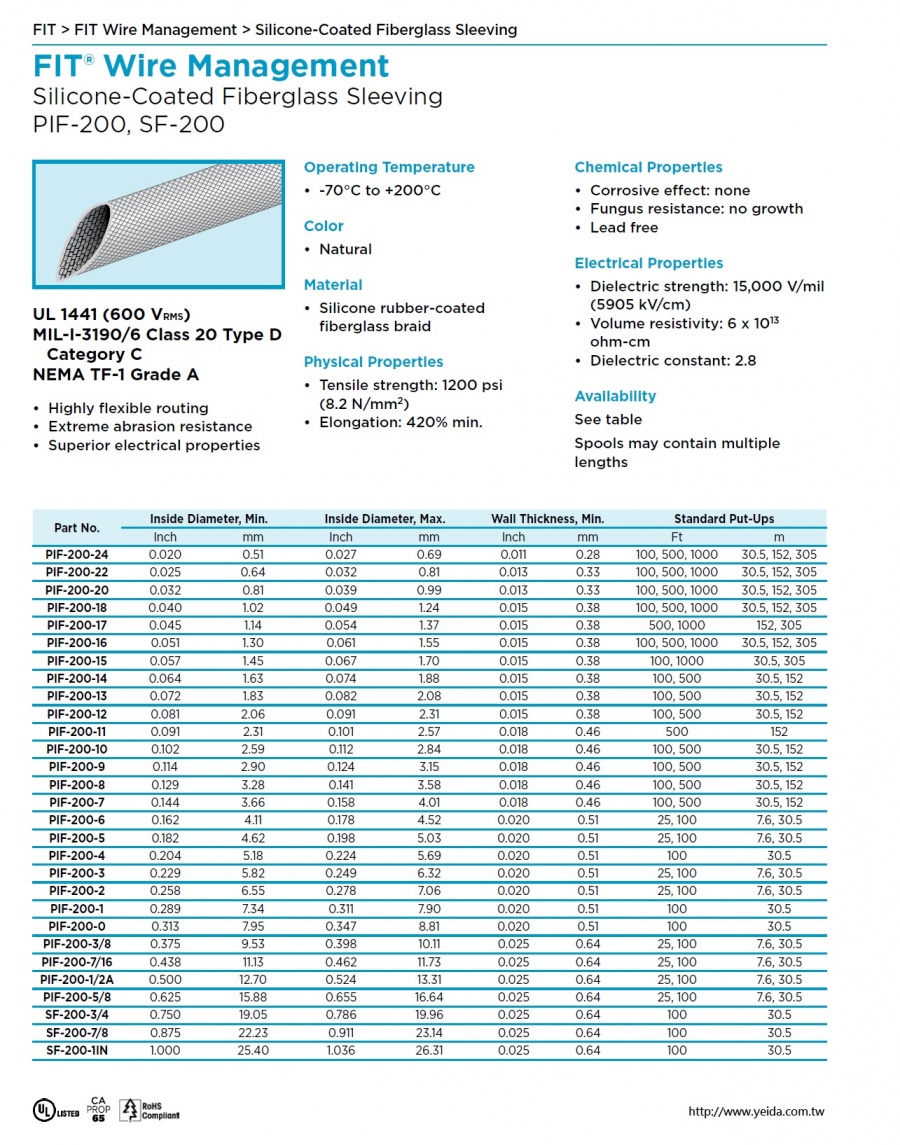

    FIT® Wire Management
    Silicone-Coated Fiberglass Sleeving


    PIF-200, SF-200
    UL 1441 (600 VRMS)
    MIL-I-3190/6 Class 20 Type D Category C
    NEMA TF-1 Grade A
    • Highly flexible routing
    • Extreme abrasion resistance
    • Superior electrical properties
    Operating Temperature
    • -70°C to +200°C
    Color
    • Natural
    Material
    • Silicone rubber-coated fiberglass braid
    Physical Properties
    • Tensile strength: 1200 psi(8.2 N/mm2)
    • Elongation: 420% min.
    Chemical Properties
    • Corrosive effect: none
    • Fungus resistance: no growth
    • Lead free
    Electrical Properties
    • Dielectric strength: 15,000 V/mil(5905 kV/cm)
    • Volume resistivity: 6 x 1013 ohm-cm
    • Dielectric constant: 2.8
    Availability
    See table
    Spools may contain multiple
    lengths
    Part # AWG / Shrink ratio Material C° Voltage #Elements Category Shielding Ratings
    PIF1307/16 n/a fiberglass pvc -20 to 130 n/a n/a Tubing/Accessories n/a ul 1441;nema tf-1;mil-i-3190_2;ul vw-1
    PIF1307/8 n/a fiberglass pvc -20 to 130 n/a n/a Tubing/Accessories n/a mil-i-3190e;nema vs-1;ul 1441;tubingratings
    PIF1308 n/a fiberglass pvc -20 to 130 n/a n/a Tubing/Accessories n/a mil-i-3190e;nema vs-1;ul 1441;tubingratings
    PIF2000 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF2001 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF2001/2A n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF20010 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF20011 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF20012 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF20013 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF20014 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF20015 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF20016 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF20017 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF20018 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF2002 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF20020 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF20022 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF20024 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF2003 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF2003/8 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF2004 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF2005 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF2006 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF2007 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF2007/16 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF2008 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF2400 n/a fiberglass -60 to 616 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;ul vw-1
    PIF2401 n/a fiberglass -60 to 616 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;ul vw-1
    PIF2401/2A n/a fiberglass -60 to 616 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;ul vw-1
    PIF24010 n/a fiberglass -60 to 616 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;ul vw-1
    PIF24011 n/a fiberglass -60 to 616 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;ul vw-1
    PIF24012 n/a fiberglass -60 to 616 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;ul vw-1
    PIF24014 n/a fiberglass -60 to 616 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;ul vw-1
    PIF24015 n/a fiberglass -60 to 616 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;ul vw-1
