    ALPHA-PIF-130, MFP-130 -20°C to +130°C PVC-Coated Fiberglass Sleeving防热和抗腐蚀阻燃和机械磨损管材
    看原圖
    		ALPHA-PIF-130



    商品編號: ALPHA-PIF-130

    ALPHA-PIF-130, MFP-130 -20°C to +130°C PVC-Coated Fiberglass Sleeving防热和抗腐蚀阻燃和机械磨损管材

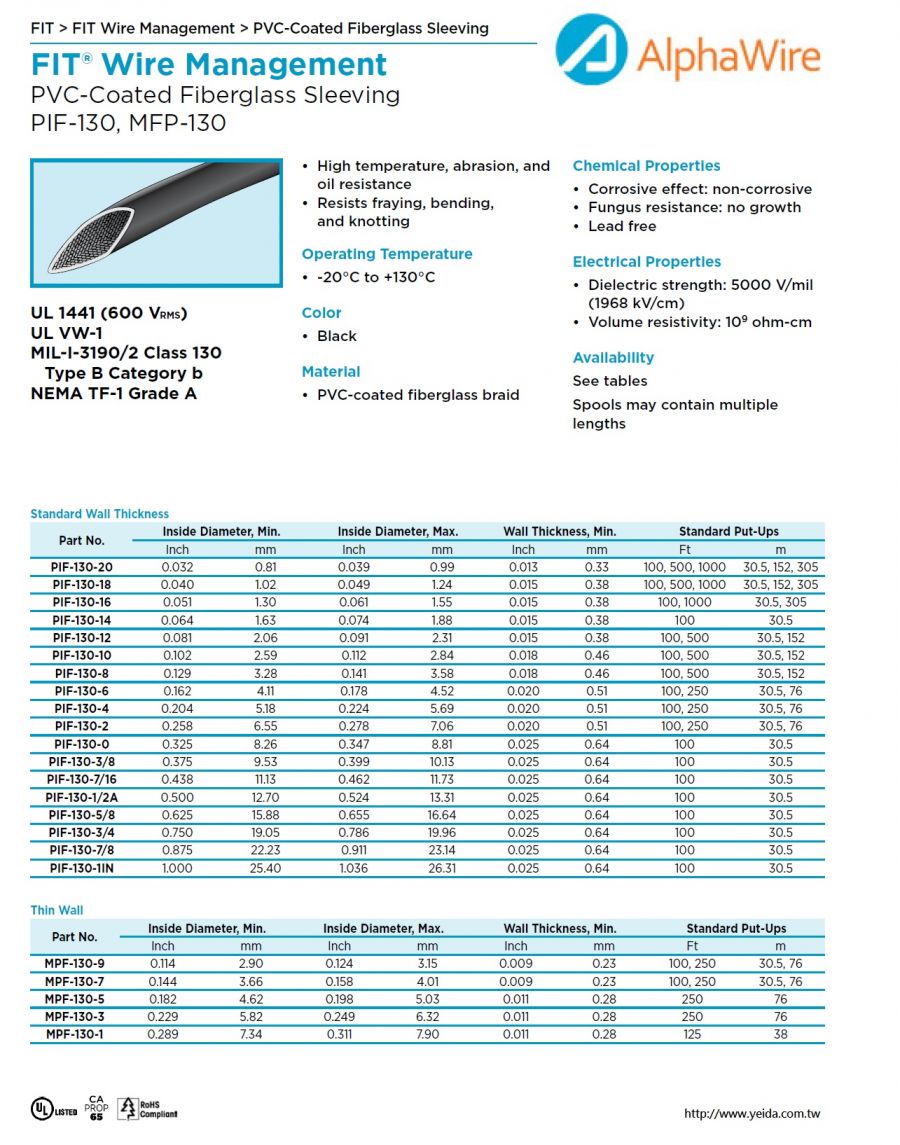

    FIT® Wire Management
    PVC-Coated Fiberglass Sleeving


    PIF-130, MFP-130
    UL 1441 (600 VRMS)
    UL VW-1
    MIL-I-3190/2 Class 130
    Type B Category b
    NEMA TF-1 Grade A
    • High temperature, abrasion, and oil resistance
    • Resists fraying, bending, and knotting
    Operating Temperature
    • -20°C to +130°C
    Color
    • Black
    Material
    • PVC-coated fiberglass braid
    Chemical Properties
    • Corrosive effect: non-corrosive
    • Fungus resistance: no growth
    • Lead free
    Electrical Properties
    • Dielectric strength: 5000 V/mil(1968 kV/cm)
    • Volume resistivity: 109 ohm-cm
    Availability
    See tables
    Spools may contain multiple
    lengths

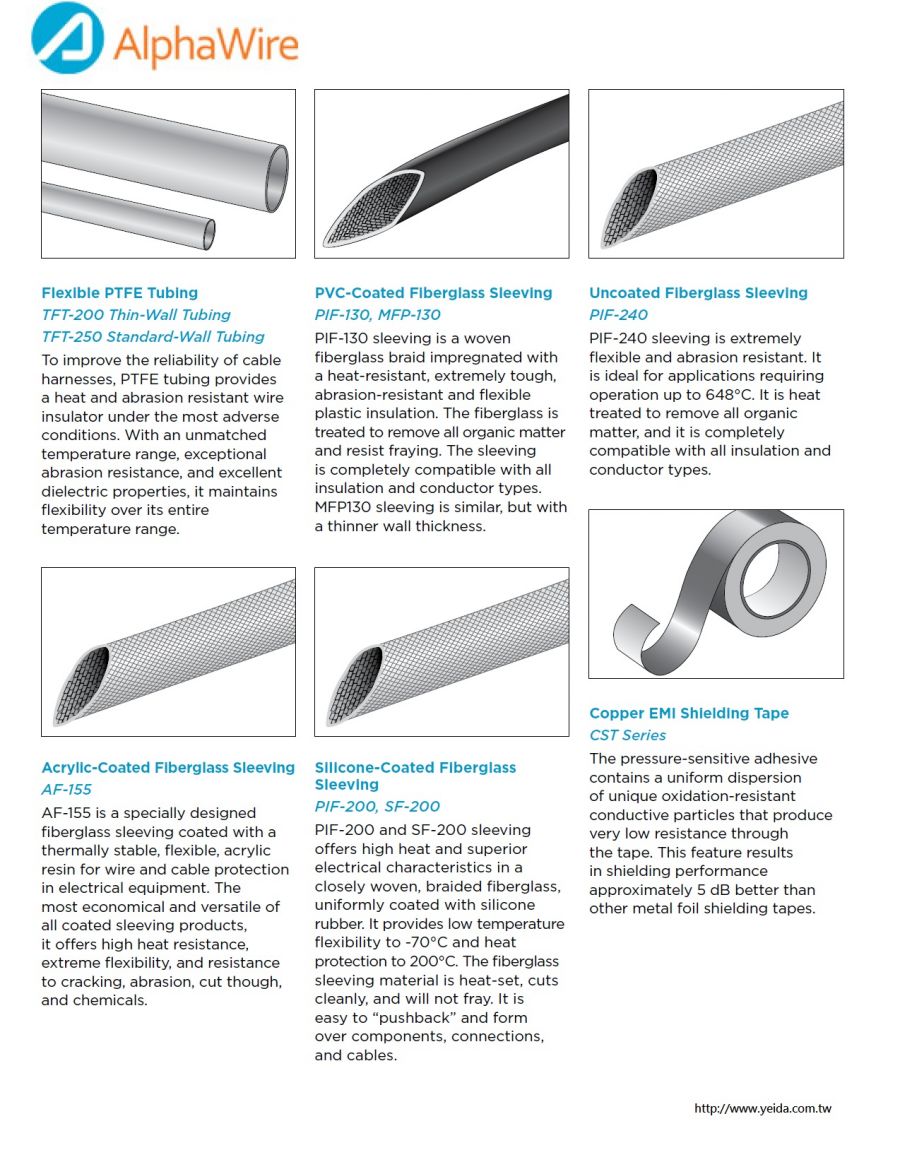

    PVC-Coated Fiberglass Sleeving
    PIF-130, MFP-130
    PIF-130 sleeving is a woven
    fiberglass braid impregnated with
    a heat-resistant, extremely tough,
    abrasion-resistant and flexible
    plastic insulation. The fiberglass is
    treated to remove all organic matter
    and resist fraying. The sleeving
    is completely compatible with all
    insulation and conductor types.
    MFP130 sleeving is similar, but with
    a thinner wall thickness.
    Part # AWG / Shrink ratio Material C° Voltage #Elements Category Shielding Ratings
    PIF1300 n/a fiberglass pvc -20 to 130 n/a n/a Tubing/Accessories n/a mil-i-3190e;nema vs-1;ul 1441;tubingratings
    PIF1301/2A n/a fiberglass pvc -20 to 130 n/a n/a Tubing/Accessories n/a ul 1441;nema tf-1;mil-i-3190_2;ul vw-1
    PIF13010 n/a fiberglass pvc -20 to 130 n/a n/a Tubing/Accessories n/a mil-i-3190e;nema vs-1;ul 1441;tubingratings
    PIF13012 n/a fiberglass pvc -20 to 130 n/a n/a Tubing/Accessories n/a mil-i-3190e;nema vs-1;ul 1441;tubingratings
    PIF13014 n/a fiberglass pvc -20 to 130 n/a n/a Tubing/Accessories n/a mil-i-3190e;nema vs-1;ul 1441;tubingratings
    PIF13016 n/a fiberglass pvc -20 to 130 n/a n/a Tubing/Accessories n/a mil-i-3190e;nema vs-1;ul 1441;tubingratings
    PIF13018 n/a fiberglass pvc -20 to 130 n/a n/a Tubing/Accessories n/a mil-i-3190e;nema vs-1;ul 1441;tubingratings
    PIF1301IN n/a fiberglass pvc -20 to 130 n/a n/a Tubing/Accessories n/a mil-i-3190e;nema vs-1;ul 1441;tubingratings
    PIF1302 n/a fiberglass pvc -20 to 130 n/a n/a Tubing/Accessories n/a mil-i-3190e;nema vs-1;ul 1441;tubingratings
    PIF13020 n/a fiberglass pvc -20 to 130 n/a n/a Tubing/Accessories n/a mil-i-3190e;nema vs-1;ul 1441;tubingratings
    PIF1303/4 n/a fiberglass pvc -20 to 130 n/a n/a Tubing/Accessories n/a mil-i-3190e;nema vs-1;ul 1441;tubingratings
    PIF1303/8 n/a fiberglass pvc -20 to 130 n/a n/a Tubing/Accessories n/a mil-i-3190e;nema vs-1;ul 1441;tubingratings
    PIF1304 n/a fiberglass pvc -20 to 130 n/a n/a Tubing/Accessories n/a mil-i-3190e;nema vs-1;ul 1441;tubingratings
    PIF1305/8 n/a fiberglass pvc -20 to 130 n/a n/a Tubing/Accessories n/a ul 1441;nema tf-1;mil-i-3190_2;ul vw-1
    PIF1306 n/a fiberglass pvc -20 to 130 n/a n/a Tubing/Accessories n/a mil-i-3190e;nema vs-1;ul 1441;tubingratings
    PIF1307/16 n/a fiberglass pvc -20 to 130 n/a n/a Tubing/Accessories n/a ul 1441;nema tf-1;mil-i-3190_2;ul vw-1
    PIF1307/8 n/a fiberglass pvc -20 to 130 n/a n/a Tubing/Accessories n/a mil-i-3190e;nema vs-1;ul 1441;tubingratings
    PIF1308 n/a fiberglass pvc -20 to 130 n/a n/a Tubing/Accessories n/a mil-i-3190e;nema vs-1;ul 1441;tubingratings
    PIF2000 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF2001 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF2001/2A n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF20010 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF20011 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF20012 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF20013 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF20014 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF20015 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF20016 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF20017 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF20018 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF2002 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF20020 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF20022 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF20024 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF2003 n/a fiberglass silicone -70 to 200 n/a n/a Tubing/Accessories n/a ul 1441;nema vs-1;mil-i-3190e
    PIF2003/8 n/a fiberglass silicone -70 to 200<
