Belden7206A 1 Pair, RS-485, 300V Flex Data Cables 24 Awg 150Ω 耐油百萬次移動工業電腦 RS-485 數據傳輸電纜

5338861

商品編號: Belden-7206A

Belden-7206A 1 Pair, RS-485, 300V Flex Data Cables 24 Awg 150Ω 耐油百萬次移動工業電腦 RS-485 數據傳輸電纜

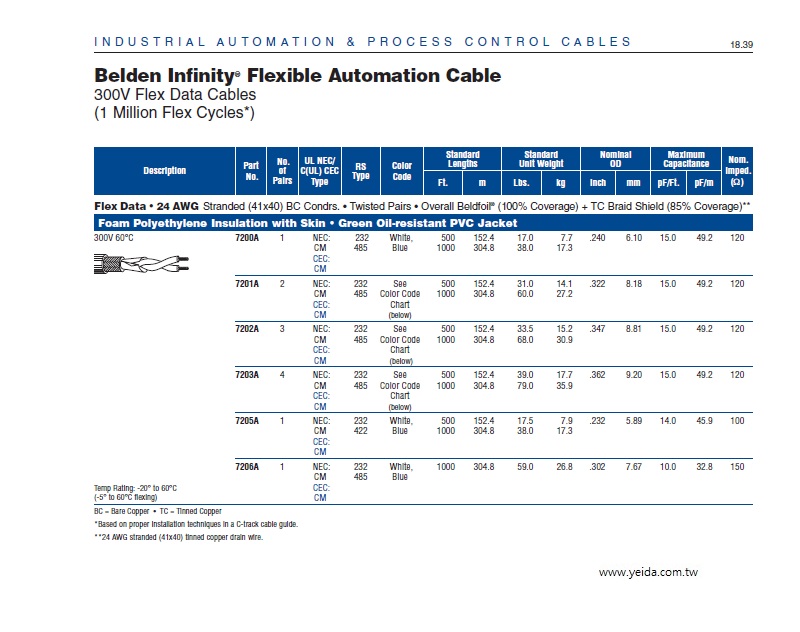

Belden Infinity® Flexible Automation Cable
300V Flex Data Cables
(1 Million Flex Cycles*)

FlexData • 24AWG Stranded (41x40) BC Condrs. • Twisted Pairs • Overall Beldfoil® (100% Coverage) + TC Braid Shield (85% Coverage)**
Foam Polyethylene Insulation with Skin • Green Oil-resistant PVC Jacket
300V 60°C CM

Belden- 7200A 1P RS-232/ 485
Belden- 7201A 2P RS-232/ 485
Belden- 7202A 3P RS-232/ 485
Belden- 7203A 4P RS-232/ 485
Belden- 7205A 1P RS-232/ 422
Belden- 7206A 1P RS-232/ 485
　

Temp Rating: -20° to 60°C CEC:
(-5° to 60°C flexing) CM
BC = Bare Copper • TC = Tinned Copper
*Based on proper installation techniques in a C-track cable guide.
**24 AWG stranded (41x40) tinned copper drain wire.

7206A

Multi-Conductor - 300V Flex Data Cables
24 AWG stranded (41x40) bare copper conductors, twisted pairs, foam polyethylene insulation with skin, overall Beldfoil® (100% coverage), tinned copper braid shield (85% coverage), oil-resistant PVC jacket.

Put Ups and Colors:

Item #	Putup	Ship Weight	Color	Notes	Item Desc
7206A X4P1000	1,000 FT	59.000 LB	GREEN X4P	C	1 PR #24 FHDPE/HDPE SH PVC

Notes:
C = CRATE REEL PUT-UP.

Usage (Overall)

Suitable Applications:

Flex Data, RS232, RS485

Physical Characteristics (Overall)

Conductor

AWG:

# Pairs	AWG	Stranding	Conductor Material
1	24	41x40	BC - Bare Copper

Insulation

Insulation Material:

Insulation Material

FPE - Foam Polyethylene

PE - Polyethylene

Insulation Resistance:

6.1 Megohms/1000 ft. minimum

Outer Shield

Outer Shield Material:

Layer #	Outer Shield Trade Name	Type	Outer Shield Material	Coverage (%)
1	Beldfoil®	Tape	Aluminum Foil-Polyester Tape	100
2		Braid	TC - Tinned Copper	85

Outer Shield Drain Wire AWG:

AWG	Stranding	Drain Wire Conductor Material
24	41x40	TC - Tinned Copper

Outer Jacket

Outer Jacket Material:

Outer Jacket Material

PVC - Polyvinyl Chloride

Overall Cabling

Overall Cabling Color Code Chart:

Number	Color
1	White & Blue

Overall Nominal Diameter:

0.302 in.

Mechanical Characteristics (Overall)

Operating Temperature Range:

-20°C To +60°C

UL Temperature Rating:

60°C

Bulk Cable Weight:

62.400 lbs/1000 ft.

Max. Recommended Pulling Tension:

41 lbs.

Min. Bend Radius (Install)/Minor Axis:

3 in.

Min. Bend Radius (Continuous Flexing):

4 in.

Flex Cycle Rating:

1 Million

Applicable Specifications and Agency Compliance (Overall)

Applicable Standards & Environmental Programs

NEC/(UL) Specification:

CEC/C(UL) Specification:

EU Directive 2000/53/EC (ELV):

Yes

EU Directive 2002/95/EC (RoHS):

Yes

EU RoHS Compliance Date (mm/dd/yyyy):

10/01/2005

EU Directive 2002/96/EC (WEEE):

Yes

EU Directive 2003/11/EC (BFR):

Yes

CA Prop 65 (CJ for Wire & Cable):

Yes

MII Order #39 (China RoHS):

Yes

Other Specification:

RS Type: 232/485

Flame Test

UL Flame Test:

UL1685 UL Loading

Suitability

Oil Resistance:

Yes

Plenum/Non-Plenum

Plenum (Y/N):

Electrical Characteristics (Overall)

Max. Capacitance Conductor to Conductor:

Capacitance (pF/ft)

Nominal Velocity of Propagation:

VP (%)

Max. Operating Voltage - UL:

Voltage

300 V RMS

Differential Impedance @ 1 MHz:

150 +/-15

Notes (Overall)

Notes:

1 million flex cycles based on proper installation techniques in a C-track cable guide.

keyword: Belden-7206A, Belden- 9844,Belden- 7205A RS-485, Hi Flex,120Ω,1 million flex cycles, 耐油, 百萬次移動,工業電腦,數據傳輸電纜
