商品編號: Belden-89841

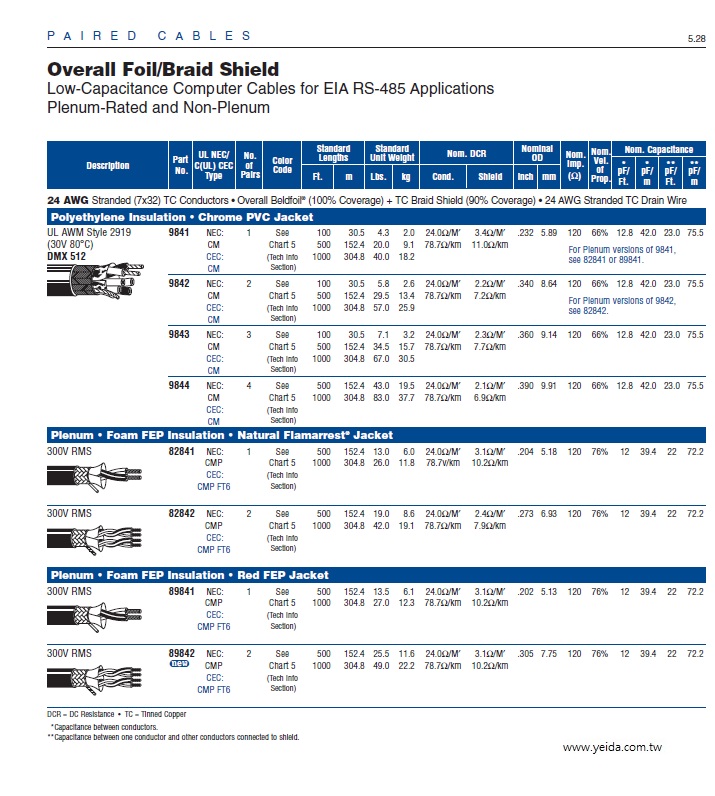

Belden89841 for RS485- Low Capacitance Computer and Computer P.O.S. Cable 鐵氟龍
Multi-Conductor - Low Capacitance Computer and Computer P.O.S. Cable
Low cap 24 AWG stranded (7x32) TC conductors, plenum, foam FEP insulation, twisted pairs, overall Beldfoil (100% coverage) + TC braid shield (90% coverage), 24 AWG stranded TC drain wire, FEP jacket.
| |
|
| DESCRIPTION: |
| 24 AWG stranded (7x32) tinned copper conductors, twisted pairs, foam FEP insulation, overall 100% Beldfoil® shield, 22 AWG stranded tinned copper drain wire, overall tinned copper braid shield (90% coverage), FEP jacket. |
|
|
| PHYSICAL CHARACTERISTICS : |
|
|
| |
|
| CONDUCTOR : |
| Number of Pairs: |
1 |
| Total Number of Conductors: |
2 |
| AWG: |
24 |
| Stranding: |
7x32 |
| Conductor Material: |
TC - Tinned Copper |
| |
|
| INSULATION : |
| Insulation Material Trade Name: |
Teflon® |
| Insulation Material: |
FFEP - Foam Fluorinated Ethylene Propylene |
| Lay Length: |
2 in. |
| Twists/ft.: |
6 |
| Pair Color Code Chart: |
|
| Number |
Color |
| 1 |
White/Blue & Blue/White |
|
|
|
| |
|
| OUTER SHIELD : |
| Outer Shield Material Trade Name: |
Beldfoil® |
| Outer Shield Type: |
Tape/Braid |
| Outer Shield Material: |
|
| Layer Number |
Material Trade Name |
Type |
Material |
% Coverage (%) |
| 1 |
Beldfoil® |
Tape |
Aluminum Foil-Polyester Tape |
100 |
| 2 |
|
Braid |
TC - Tinned Copper |
90 |
|
|
|
| Outer Shield %Coverage: |
100 % |
| |
| OUTER SHIELD DRAIN WIRE : |
| Outer Shield Drain Wire AWG: |
22 |
| Outer Shield Drain Wire Stranding: |
7x32 |
| Outer Shield Drain Wire Conductor Material: |
TC - Tinned Copper |
| |
|
| OUTER JACKET : |
| |
| Outer Jacket Material Trade Name: |
Teflon® |
| Outer Jacket Material: |
FEP - Fluorinated Ethylene Propylene |
| |
|
| OVERALL NOMINAL DIAMETER : |
| Overall Nominal Diameter: |
.202 in. |
| MECHANICAL CHARACTERISTICS : |
|
|
| Operating Temperature Range: |
-70°C To +200°C |
| Bulk Cable Weight: |
32 lbs/1000 ft. |
| Max. Recommended Pulling Tension: |
45.7 lbs. |
| Min. Bend Radius (Install): |
2 in. |
| APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE : |
|
|
| |
|
| APPLICABLE STANDARDS : |
| NEC/(UL) Specification: |
CMP |
| CEC/C(UL) Specification: |
CMP |
| |
|
| FLAME TEST : |
| UL Flame Test: |
NFPA 262 |
| C(UL) Flame Test: |
FT6 |
| |
|
| PLENUM/NON-PLENUM : |
| Plenum (Y/N): |
Y |
| Non-Plenum Number: |
9841 |
| ELECTRICAL CHARACTERISTICS : |
|
|
| Nom. Characteristic Impedance: |
120 Ω |
| Nom. Capacitance Conductor to Conductor @ 1 KHz: |
12 pF/ft |
| Nom. Cap. Cond. to Other Cond. & Shield @ 1 KHz: |
22 pF/ft |
| Nominal Velocity of Propagation: |
76 % |
| Nom. Conductor DC Resistance @ 20 Deg. C: |
24 Ω/1000 ft |
| Nominal Outer Shield DC Resistance @ 20 Deg. C: |
3.1 Ω/1000 ft |
| Max. Operating Voltage - UL: |
300 V RMS |
| Max. Recommended Current: |
4 Amps per conductor @ 25°C |
|
|
| Notes: |
Teflon® is a registered trademark of E. I. duPont de Nemours and Co. used under license by Belden, Inc. |
|
|
| Item |
Description |
Put-Up (ft.) |
Ship Weight (lbs.) |
Jacket Color |
Notes |
| 89841 0021000 |
1 PR #24 FFEPR SH FEP |
1000 |
29 |
RED |
C |
| 89841 002500 |
1 PR #24 FFEPR SH FEP |
500 |
15 |
RED |
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
keyword: Belden89842,belden89841, Plenum,RS-485, Low Capacitance , P.O.S. Cable,鐵氟龍耐高溫工業電腦, RS-485 數據傳輸電纜 |
