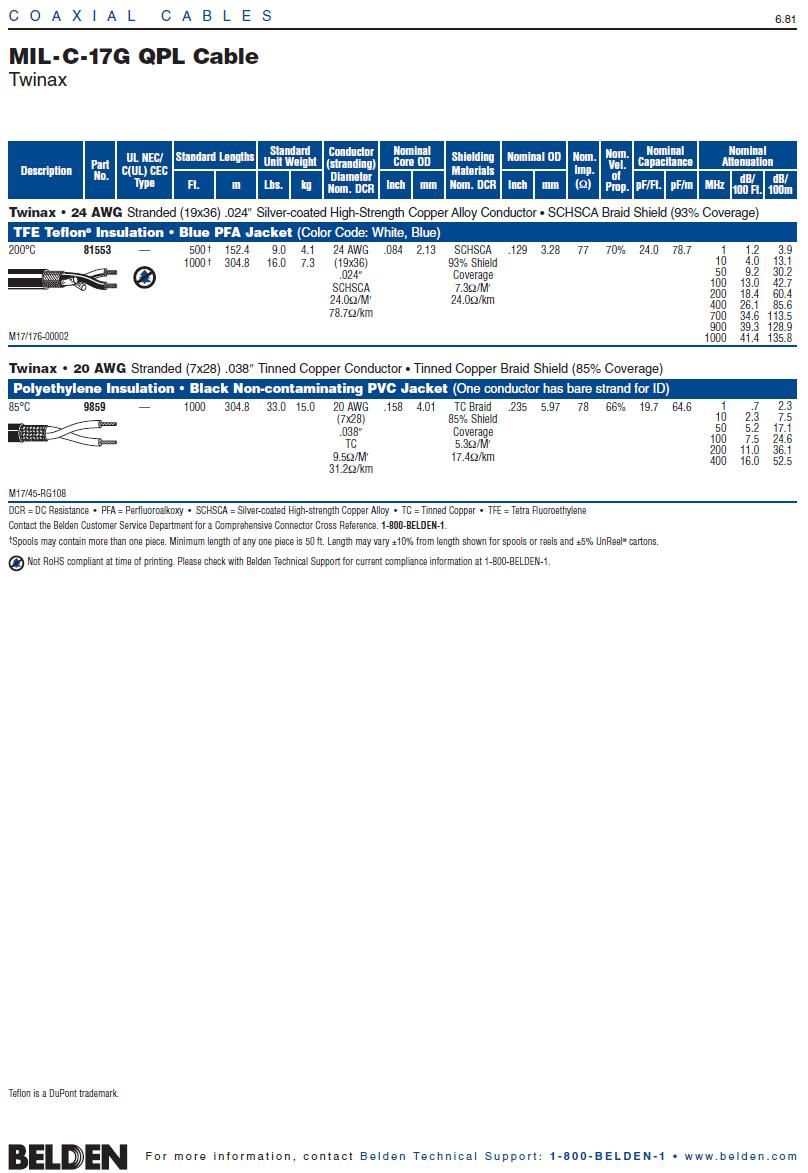

    Belden 81553 Twinax (77-Ohm) TFE-PFA MIL鐵氟龍耐高溫軍規雙芯同軸電纜
    看原圖
    		463596

    商品編號: Belden-81553

    Belden 81553    Twinax (77-Ohm) TFE-PFA MIL鐵氟龍耐高溫軍規雙芯同軸電纜

    Twinax, 24 AWG stranded (19x36) .024" silver-coated high-strength copper alloy conductor, TFE Teflon® insulation, SC high strength CA braid shield (93% coverage), PFA jacket.

    81553
    		    Twinax - Twinax
    Twinax, 24 AWG stranded (19x36) .024" silver-coated high-strength copper alloy conductor, TFE Teflon® insulation, SC high strength CA braid shield (93% coverage), PFA jacket.    		 For more Information
    please call

    1-800-Belden1
    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    81553 0061000 1,000 FT 18.000 LB BLUE, LIGHT F Z 2#24 TFE BRD PFA
    81553 006500 500 FT 9.000 LB BLUE, LIGHT F Z 2#24 TFE BRD PFA
    Notes: 　
    F = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'
    Z = FINAL PUT-UP LENGTH MAY VARY (+ OR -) 10% FOR SPOOLS OR REELS AND(+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
    　
    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Pairs AWG Stranding Conductor Material Dia. (in.)
    1 24 19x36 SCHSCA - Silver Coated High Strength Copper Alloy .024
    Insulation
    Insulation Material:
    Insulation Trade Name Insulation Material Dia. (in.)
    Teflon® TFE - Tetrafluoroethylene .084
    Outer Shield
    Outer Shield Material:
    Type Outer Shield Material Coverage (%)
    Braid SCHSCA - Silver-Coated High Strength Copper Alloy 93
    Outer Jacket
    Outer Jacket Material:
    Outer Jacket Material
    PFA
    Overall Cabling
    Overall Nominal Diameter: 0.129 in.
    Mechanical Characteristics (Overall)
    Operating Temperature Range: -55°C To +200°C
    UL Temperature Rating: 200°C
    Bulk Cable Weight: 15 lbs/1000 ft.
    Max. Recommended Pulling Tension: 12 lbs.
    Min. Bend Radius (Install)/Minor Axis: 2.500 in.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    NEC/(UL) Specification: CL2P
    EU Directive 2002/95/EC (RoHS): No
    Military Specification: MIL-C-17 M17/176-00002, MIL-STD-1553 DATA BUS CABLE
    Flame Test
    UL Flame Test: NFPA 262
    Plenum/Non-Plenum
    Plenum (Y/N): Yes
    Electrical Characteristics (Overall)
    Nom. Characteristic Impedance:
    Impedance (Ohm)
    77
    Nom. Inductance:
    Inductance (µH/ft)
    .118
    Max. Mutual Capacitance:
    Capacitance (pF/ft)
    24.0
    Maximum Capacitance Unbalance:
    Description Capacitance (pF/ft)
    　 5
    Nominal Velocity of Propagation:
    VP (%)
    70
    Nominal Delay:
    Delay (ns/ft)
    1.62
    Nominal Outer Shield DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    7.3
    Nom. Attenuation:
    Freq. (MHz) Attenuation (dB/100 ft.)
    1 1.2
    10 4.0
    50 9.2
    100 13.0
    200 18.4
    400 26.1
    700 34.6
    900 39.3
    1000 41.4
    Max. Attenuation:
    Description Freq. (MHz) Start Freq. (MHz) Stop Freq. (MHz) Attenuation (dB/100 ft.)
    　 1 　 　 1.4
    Max. Operating Voltage - UL:
    Voltage
    150 V RMS
    Notes (Overall)
    Notes: Teflon® is a registered trademark of E. I. duPont de Nemours and Co. used under license by Belden, Inc.
