    Belden-8134 Paired - Low Capacitance Computer Cable for EIA RS-232/485 電腦傳輸電線
    看原圖
    		471932

    商品編號: Belden8134

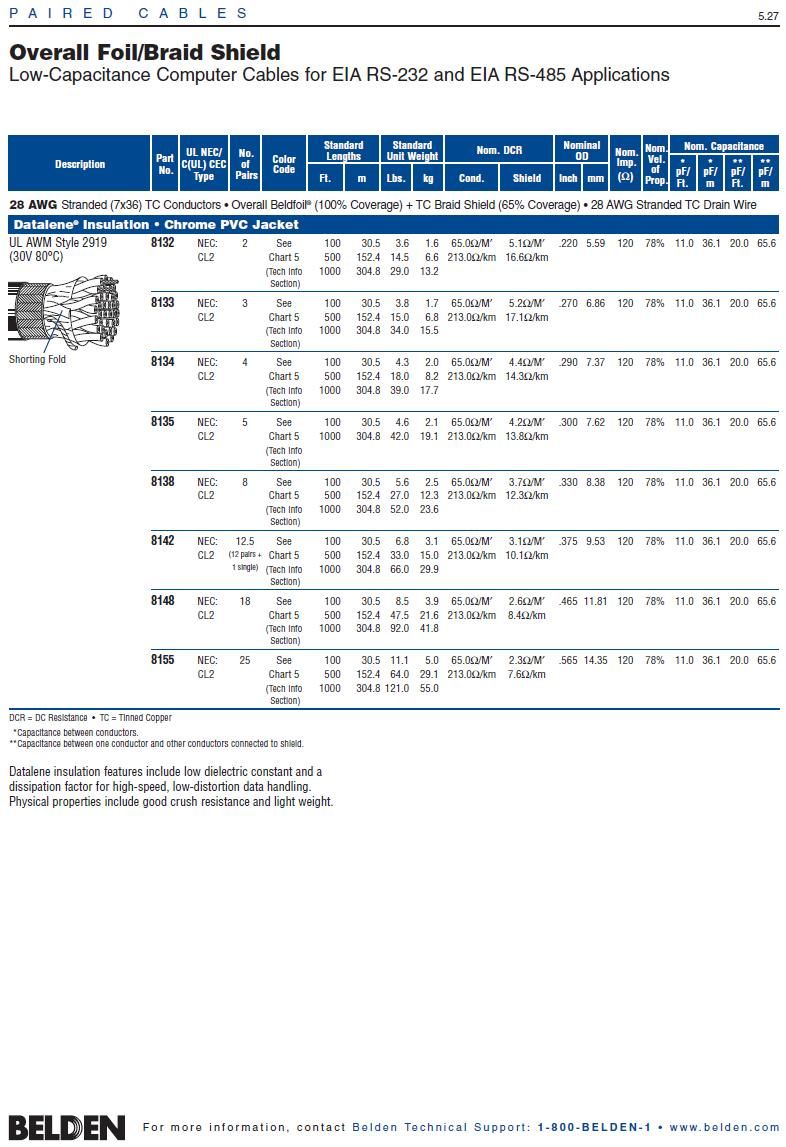

    8134 Paired - Low Capacitance Computer Cable for EIA RS-232/485

    8134
    		    Multi-Conductor - Low Capacitance Computer Cable for EIA RS-232/485
    28 AWG stranded (7x36) TC conductors, Datalene® insulation, overall Beldfoil® (100% coverage) + TC braid shield (65% coverage), 28 AWG stranded TC drain wire, PVC jacket.    		 For more Information
    please call

    1-800-Belden1
    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    8134 060100 100 FT 4.300 LB CHROME 　 4 PR #28 FHDPE SH PVC
    8134 0601000 1,000 FT 39.000 LB CHROME C 4 PR #28 FHDPE SH PVC
    8134 060500 500 FT 18.000 LB CHROME C 4 PR #28 FHDPE SH PVC
    Notes: 　
    C = CRATE REEL PUT-UP.
    　
    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Pairs AWG Stranding Conductor Material
    4 28 7x36 TC - Tinned Copper
    Insulation
    Insulation Material:
    Insulation Trade Name Insulation Material
    Datalene® FPE - Foam Polyethylene
    Outer Shield
    Outer Shield Material:
    Layer # Outer Shield Trade Name Type Outer Shield Material Coverage (%)
    1 Beldfoil® Tape Aluminum Foil-Polyester Tape w/Shorting Fold 100
    2   Braid TC - Tinned Copper 65
    Outer Shield Drain Wire AWG:
    AWG Stranding Drain Wire Conductor Material
    28 7x36 TC - Tinned Copper
    Outer Jacket
    Outer Jacket Material:
    Outer Jacket Material
    PVC - Polyvinyl Chloride
    Overall Cabling
    Overall Nominal Diameter: 0.286 in.
    Pair
    Pair Color Code Chart:
    Number Color
    1 White/Blue & Blue/White
    2 White/Orange & Orange/White
    3 White/Green & Green/White
    4 White/Brown & Brown/White
    Pair Lay Length & Direction:
    Lay Length (in.) Twists/ft. (twist/ft)
    0.830 14.400
    Mechanical Characteristics (Overall)
    Operating Temperature Range: -30°C To +80°C
    UL Temperature Rating: 80°C (UL AWM Style 2919)
    Bulk Cable Weight: 41 lbs/1000 ft.
    Min. Bend Radius (Install)/Minor Axis: 2.900 in.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    NEC/(UL) Specification: CL2
    AWM Specification: UL Style 2919 (30 V 80°C)
    EU CE Mark: Yes
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Flame Test
    UL Flame Test: UL1685 UL Loading
    Plenum/Non-Plenum
    Plenum (Y/N): No
    Electrical Characteristics (Overall)
    Nom. Characteristic Impedance:
    Impedance (Ohm)
    120
    Nom. Capacitance Conductor to Conductor:
    Capacitance (pF/ft)
    11
    Nom. Capacitance Cond. to Other Conductor & Shield:
    Capacitance (pF/ft)
    20
    Nominal Velocity of Propagation:
    VP (%)
    78
    Nom. Conductor DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    65
    Nominal Outer Shield DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    4.4
    Max. Operating Voltage - UL:
    Voltage
    30 V RMS (UL AWM Style 2919); 150 V RMS
    Max. Recommended Current:
    Current
    0.9 Amps per conductor @ 25°C
