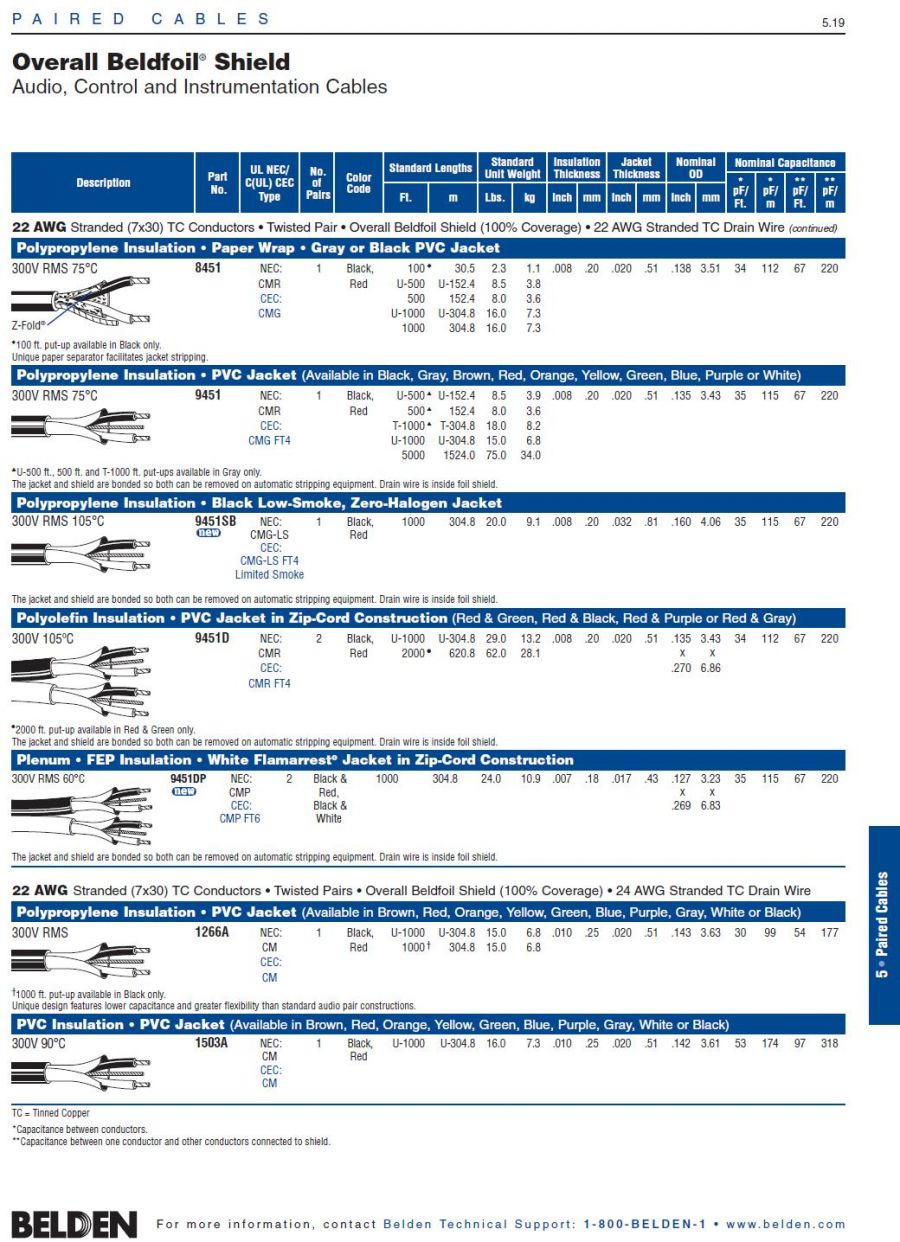

    Belden 8451 Awg22 x 1Paired Overall Beldfoil® Shield Audio, Control and Instrumentation Cables 鋁箔隔離 廣播聲音音響, 儀表控制電纜
    看原圖
    453016

    商品編號: Belden-8451

    Belden 8451 Awg22 x 1Paired Overall Beldfoil® Shield Audio, Control and Instrumentation Cables 鋁箔隔離 廣播聲音音響, 儀表控制電纜


    22 AWG stranded (7x30) TC conductors, polypropylene insulation, paper wrap, twisted pair, overall Beldfoil shield (100% coverage), 22 AWG stranded TC drain wire, PVC jacket.
    8451
       Multi-Conductor - Single-Pair Cable
    22 AWG stranded (7x30) TC conductors, polypropylene insulation, paper wrap, twisted pair, overall Beldfoil shield (100% coverage), 22 AWG stranded TC drain wire, PVC jacket.
    For more Information
    please call

    1-800-Belden1
    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    8451 008U1000 1,000 FT 16.000 LB GRAY   2 #22 PP SHLD PVC FR
    8451 008U500 500 FT 8.500 LB GRAY   2 #22 PP SHLD PVC FR
    8451 0081000 1,000 FT 16.000 LB GRAY C 2 #22 PP SHLD PVC FR
    8451 008500 500 FT 8.000 LB GRAY   2 #22 PP SHLD PVC FR
    8451 010U1000 1,000 FT 16.000 LB BLACK   2 #22 PP SHLD PVC FR
    8451 010U500 500 FT 8.500 LB BLACK   2 #22 PP SHLD PVC FR
    8451 010100 100 FT 2.200 LB BLACK   2 #22 PP SHLD PVC FR
    8451 0101000 1,000 FT 16.000 LB BLACK C 2 #22 PP SHLD PVC FR
    8451 010500 500 FT 8.000 LB BLACK   2 #22 PP SHLD PVC FR
    Notes:
    C = CRATE REEL PUT-UP.

    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Pairs AWG Stranding Conductor Material
    1 22 7x30 TC - Tinned Copper
    Insulation
    Insulation Material:
    Insulation Material Wall Thickness (in.)
    PP - Polypropylene .008
    Outer Shield
    Outer Shield Material:
    Outer Shield Trade Name Type Outer Shield Material Coverage (%)
    Beldfoil® (Z-Fold®) Tape Aluminum Foil-Polyester Tape 100
    Outer Shield Drain Wire AWG:
    AWG Stranding Drain Wire Conductor Material
    22 7x30 TC - Tinned Copper
    Outer Jacket
    Outer Jacket Material:
    Outer Jacket Material Nom. Wall Thickness (in.)
    PVC - Polyvinyl Chloride .020
    Overall Cabling
    Overall Nominal Diameter: 0.138 in.
    Pair
    Pair Color Code Chart:
    Number Color
    1 Black & Red
    Pair Lay Length & Direction:
    Lay Length (in.) Twists/ft. (twist/ft)
    1.750 6.860
    Mechanical Characteristics (Overall)
    Operating Temperature Range: -20°C To +75°C
    Bulk Cable Weight: 15 lbs/1000 ft.
    Max. Recommended Pulling Tension: 27 lbs.
    Min. Bend Radius (Install)/Minor Axis: 1.400 in.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    NEC/(UL) Specification: CMR
    CEC/C(UL) Specification: CMG
    EU CE Mark: Yes
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Flame Test
    UL Flame Test: UL1666 Riser
    CSA Flame Test: FT4
    Plenum/Non-Plenum
    Plenum (Y/N): No
    Electrical Characteristics (Overall)
    Nom. Characteristic Impedance:
    Impedance (Ohm)
    45
    Nom. Inductance:
    Inductance (µH/ft)
    .17
    Nom. Capacitance Conductor to Conductor:
    Capacitance (pF/ft)
    34
    Nom. Capacitance Cond. to Other Conductor & Shield:
    Capacitance (pF/ft)
    67
    Nominal Velocity of Propagation:
    VP (%)
    66
    Nominal Delay:
    Delay (ns/ft)
    1.5
    Nom. Conductor DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    14.5
    Nominal Outer Shield DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    14.1
    Max. Operating Voltage - UL:
    Voltage
    300 V RMS
    Max. Recommended Current:
    Current
    2.9 Amps per conductor @ 25°C
