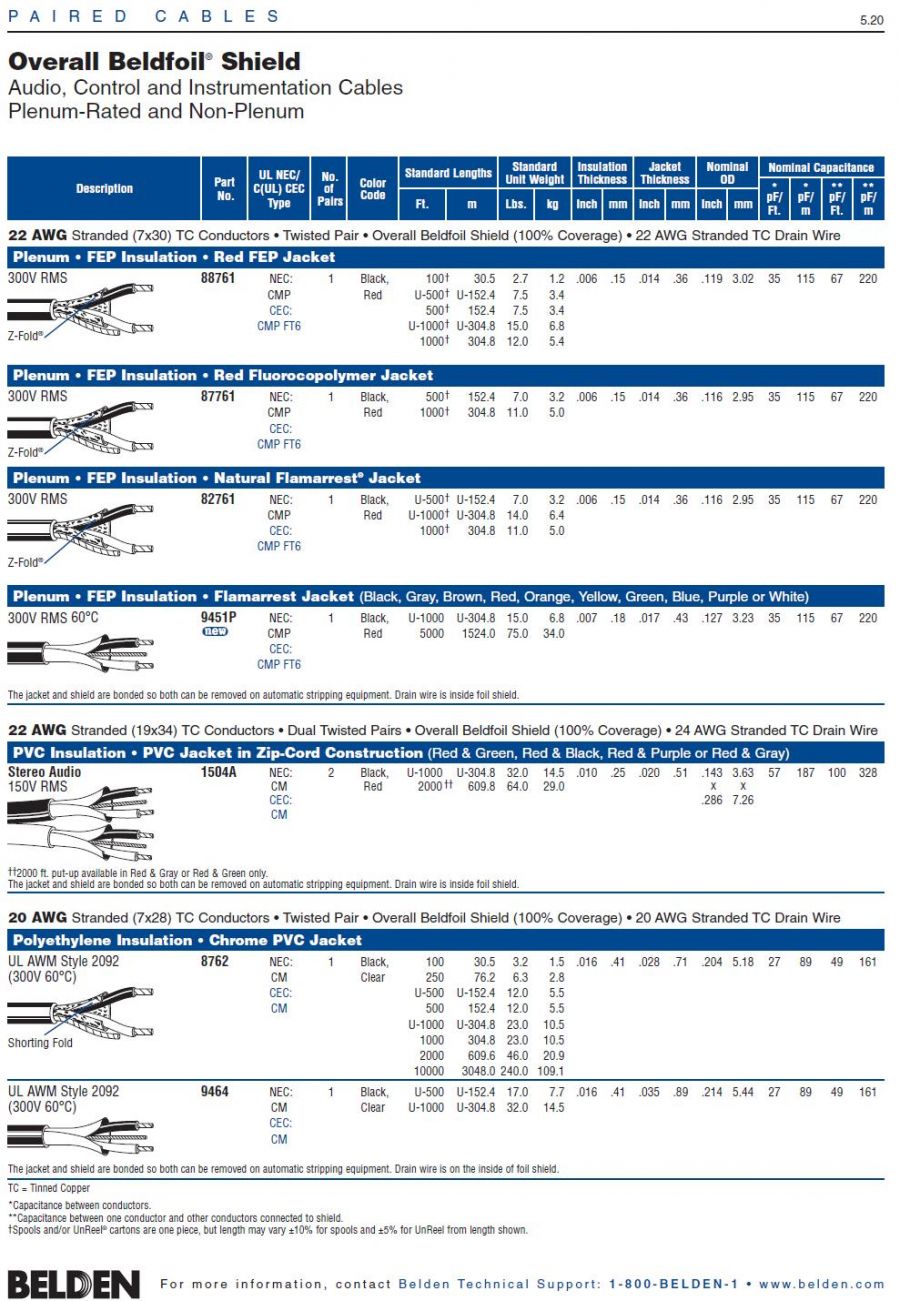

    Belden 8762  UL 2092 PE-PVC Awg20 x 1Pair Overall Beldfoil® Shield Audio, Control and Instrumentation Cables 鋁箔隔離 聲音音響, 儀表控制電纜
    看原圖
    453024

    商品編號: Belden-8762

    Belden8762 UL 2092 PE-PVC Awg20 x 1Paired Overall Beldfoil® Shield Audio, Control and Instrumentation Cables 鋁箔隔離 聲音音響, 儀表控制電纜


    20 AWG stranded (7x28) TC conductors, polyethylene insulation, twisted pair, overall Beldfoil® shield (100% coverage), 20 AWG stranded TC drain wire, PVC jacket.
    8762
       Multi-Conductor - Single-Pair Cable
    20 AWG stranded (7x28) TC conductors, polyethylene insulation, twisted pair, overall Beldfoil® shield (100% coverage), 20 AWG stranded TC drain wire, PVC jacket.
    For more Information
    please call

    1-800-Belden1
    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    8762 060U1000 1,000 FT 23.000 LB CHROME   2 #20 PE FS PVC
    8762 060U500 500 FT 12.500 LB CHROME   2 #20 PE FS PVC
    8762 060100 100 FT 2.900 LB CHROME   2 #20 PE FS PVC
    8762 0601000 1,000 FT 23.000 LB CHROME C 2 #20 PE FS PVC
    8762 06010000 10,000 FT 240.000 LB CHROME C Y 2 #20 PE FS PVC
    8762 0602000 2,000 FT 46.000 LB CHROME C 2 #20 PE FS PVC
    8762 060250 250 FT 6.250 LB CHROME   2 #20 PE FS PVC
    8762 060500 500 FT 12.000 LB CHROME C 2 #20 PE FS PVC
    Notes:
    C = CRATE REEL PUT-UP.
    Y = FINAL PUT-UP LENGTH MAY VARY -10% TO +20% FROM LENGTH SHOWN.MAY CONTAIN 2 PIECES. MINIMUM LENGTH OF ANY ONE PIECE IS 1500.

    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Pairs AWG Stranding Conductor Material
    1 20 7x28 TC - Tinned Copper
    Insulation
    Insulation Material:
    Insulation Material Wall Thickness (in.)
    PE - Polyethylene .016
    Outer Shield
    Outer Shield Material:
    Outer Shield Trade Name Type Outer Shield Material Coverage (%)
    Beldfoil® Tape Aluminum Foil-Polyester Tape w/Shorting Fold 100
    Outer Shield Drain Wire AWG:
    AWG Stranding Drain Wire Conductor Material
    20 7x28 TC - Tinned Copper
    Outer Jacket
    Outer Jacket Material:
    Outer Jacket Material Nom. Wall Thickness (in.)
    PVC - Polyvinyl Chloride .028
    Overall Cabling
    Overall Nominal Diameter: 0.204 in.
    Pair
    Pair Color Code Chart:
    Number Color
    1 Black & Clear
    Pair Lay Length & Direction:
    Lay Length (in.) Twists/ft. (twist/ft)
    1.500 8.000
    Mechanical Characteristics (Overall)
    Operating Temperature Range: -20°C To +60°C
    UL Temperature Rating: 60°C (UL AWM Style 2092)
    Bulk Cable Weight: 21.200 lbs/1000 ft.
    Max. Recommended Pulling Tension: 46 lbs.
    Min. Bend Radius (Install)/Minor Axis: 2 in.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    NEC/(UL) Specification: CM
    CEC/C(UL) Specification: CM
    AWM Specification: UL Style 2092 (300 V 60°C)
    EU CE Mark: Yes
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Flame Test
    UL Flame Test: UL1685 UL Loading
    Plenum/Non-Plenum
    Plenum (Y/N): No
    Electrical Characteristics (Overall)
    Nom. Characteristic Impedance:
    Impedance (Ohm)
    56
    Nom. Inductance:
    Inductance (µH/ft)
    .18
    Nom. Capacitance Conductor to Conductor:
    Capacitance (pF/ft)
    27
    Nom. Capacitance Cond. to Other Conductor & Shield:
    Capacitance (pF/ft)
    49
    Nom. Conductor DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    9.5
    Max. Operating Voltage - UL:
    Voltage
    300 V RMS
    Max. Recommended Current:
    Current
    3.9 Amps per conductor @ 25°C
