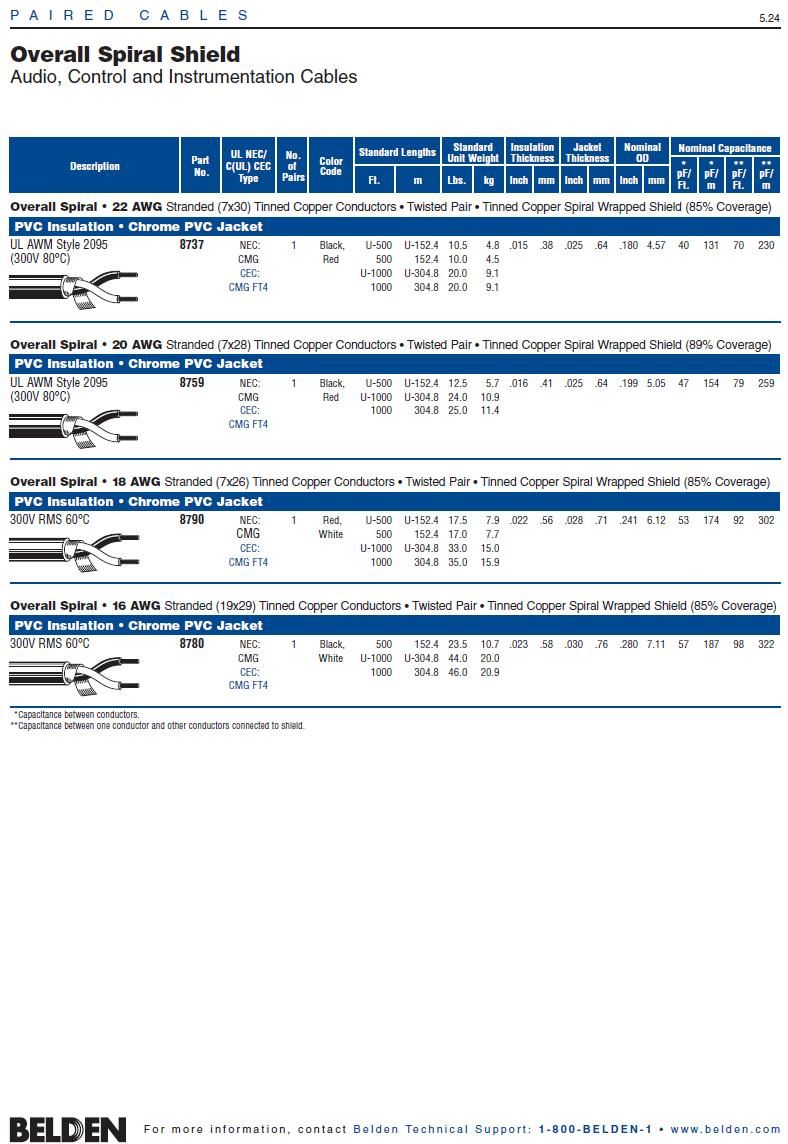

    Belden8790  PVC-PVC Awg18 x 1Paired Overall Spiral Shield Audio, Control and Instrumentation Cables 鍍錫銅螺旋纏繞屏蔽隔離 聲音音響, 儀表控制電纜
    看原圖
    453074

    商品編號: Belden-8790

    Belden 8790 PVC-PVC Awg18 x 1Paired Overall Spiral Shield Audio, Control and Instrumentation Cables 鍍錫銅螺旋纏繞隔離 聲音音響, 儀表控制電纜


    18 AWG stranded (7x26) tinned copper conductors, PVC insulation, twisted pair, tinned copper spiral wrapped shield (85% coverage), PVC jacket.
    8790
       Multi-Conductor - Single-Pair Cable
    18 AWG stranded (7x26) tinned copper conductors, PVC insulation, twisted pair, tinned copper spiral wrapped shield (85% coverage), PVC jacket.
    For more Information
    please call

    1-800-Belden1
    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    8790 060U1000 1,000 FT 33.000 LB CHROME   1 PR#18 PVC SHLD PVC
    8790 060U500 500 FT 17.500 LB CHROME   1PR #18 PVC SHLD PVC
    8790 0601000 1,000 FT 35.000 LB CHROME C 1 PR #18 PVC SHLD PVC
    8790 060500 500 FT 17.000 LB CHROME C 1 PR#18 PVC SHLD PVC
    Notes:
    C = CRATE REEL PUT-UP.

    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Pairs AWG Stranding Conductor Material Dia. (in.)
    1 18 7x26 TC - Tinned Copper .046
    Insulation
    Insulation Material:
    Insulation Material
    PVC - Polyvinyl Chloride
    Outer Shield
    Outer Shield Material:
    Type Outer Shield Material Coverage (%)
    Spiral Serve TC - Tinned Copper 85
    Outer Jacket
    Outer Jacket Material:
    Outer Jacket Material
    PVC - Polyvinyl Chloride
    Overall Cabling
    Overall Nominal Diameter: 0.241 in.
    Pair
    Pair Color Code Chart:
    Color
    Red and White
    Pair Lay Length & Direction:
    Lay Length (in.) Twists/ft. (twist/ft)
    2.000 6.000
    Mechanical Characteristics (Overall)
    Operating Temperature Range: -20°C To +60°C
    Bulk Cable Weight: 31 lbs/1000 ft.
    Max. Recommended Pulling Tension: 45 lbs.
    Min. Bend Radius (Install)/Minor Axis: 2.400 in.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    NEC/(UL) Specification: CMG
    CEC/C(UL) Specification: CMG
    EU CE Mark: Yes
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Flame Test
    UL Flame Test: UL1685 FT4 Loading
    CSA Flame Test: FT4
    Plenum/Non-Plenum
    Plenum (Y/N): No
    Electrical Characteristics (Overall)
    Nom. Characteristic Impedance:
    Impedance (Ohm)
    41
    Nom. Inductance:
    Inductance (µH/ft)
    0.18
    Nom. Capacitance Conductor to Conductor:
    Capacitance (pF/ft)
    53
    Nom. Capacitance Cond. to Other Conductor & Shield:
    Capacitance (pF/ft)
    92
    Nominal Velocity of Propagation:
    VP (%)
    65
    Nom. Conductor DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    6.3
    Nominal Outer Shield DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    8.9
    Max. Operating Voltage - UL:
    Voltage
    300 V RMS
    Max. Recommended Current:
    Current
    5.2 Amps per conductor @ 25°C
