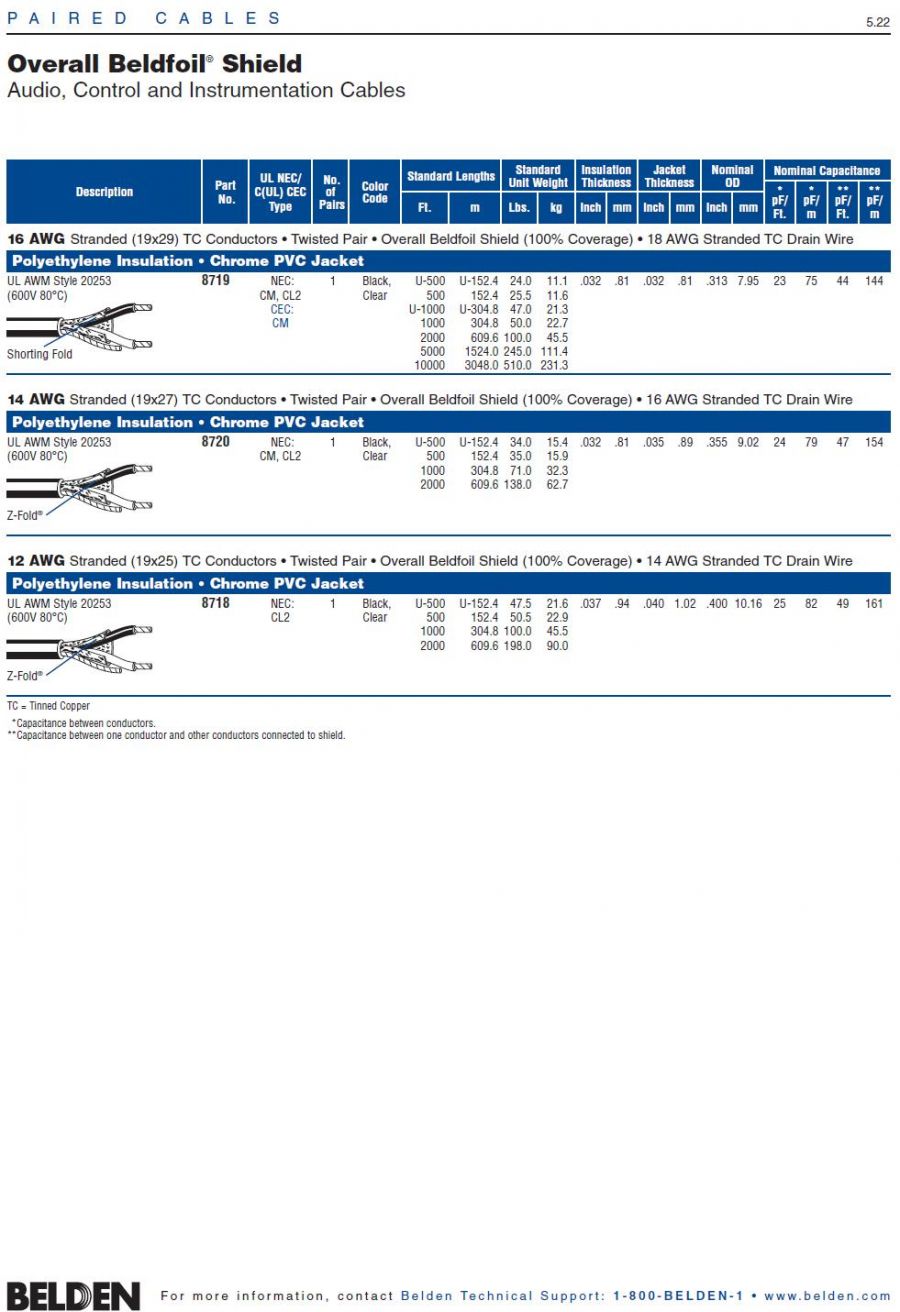

    Belden 8720 UL 20253 PE-PVC (600V 80°C) Awg14 x 1Paired Overall Beldfoil® Shield Audio, Control and Instrumentation Cables 鋁箔隔離 廣播聲音音響, 儀表控制電纜
    看原圖
    453078

    商品編號: Belden-8720

    Belden8720 UL 20253 PE-PVC (600V 80°C) Awg14 x 1Paired Overall Beldfoil® Shield Audio, Control and Instrumentation Cables 鋁箔隔離 廣播聲音音響, 儀表控制電纜


    8720
       Multi-Conductor - Single-Pair Cable
    14 AWG stranded (19x27) TC conductors, polyethylene insulation, twisted pair, overall Beldfoil® shield (100% coverage), 16 AWG stranded TC drain wire, PVC jacket.
    For more Information
    please call

    1-800-Belden1
    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    8720 060U500 500 FT 34.000 LB CHROME   2 #14 PE FS PVC
    8720 0601000 1,000 FT 71.000 LB CHROME C 2 #14 PE FS PVC
    8720 0602000 2,000 FT 136.000 LB CHROME C 2 #14 PE FS PVC
    8720 060500 500 FT 36.000 LB CHROME C 2 #14 PE FS PVC
    Notes:
    C = CRATE REEL PUT-UP.

    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Pairs AWG Stranding Conductor Material
    1 14 19x27 TC - Tinned Copper
    Insulation
    Insulation Material:
    Insulation Material Wall Thickness (in.)
    PE - Polyethylene .032
    Outer Shield
    Outer Shield Material:
    Outer Shield Trade Name Type Outer Shield Material Coverage (%)
    Beldfoil® (Z-Fold®) Tape Aluminum Foil-Polyester Tape 100
    Outer Shield Drain Wire AWG:
    AWG Stranding Drain Wire Conductor Material
    16 Stranded TC - Tinned Copper
    Outer Jacket
    Outer Jacket Material:
    Outer Jacket Material Nom. Wall Thickness (in.)
    PVC - Polyvinyl Chloride .035
    Overall Cabling
    Overall Nominal Diameter: 0.355 in.
    Pair
    Pair Color Code Chart:
    Number Color
    1 Black & Clear
    Pair Lay Length & Direction:
    Lay Length (in.) Twists/ft. (twist/ft)
    2.000 6.000
    Mechanical Characteristics (Overall)
    Operating Temperature Range: -20°C To +80°C
    UL Temperature Rating: 80°C (UL AWM Style 20253)
    Bulk Cable Weight: 61.500 lbs/1000 ft.
    Max. Recommended Pulling Tension: 160 lbs.
    Min. Bend Radius (Install)/Minor Axis: 3.400 in.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    NEC/(UL) Specification: CL2
    AWM Specification: UL Style 20253 (600 V 80°C)
    CSA Specification: II A
    EU CE Mark: Yes
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Flame Test
    UL Flame Test: UL1685 UL Loading
    Plenum/Non-Plenum
    Plenum (Y/N): No
    Electrical Characteristics (Overall)
    Nom. Characteristic Impedance:
    Impedance (Ohm)
    58
    Nom. Inductance:
    Inductance (µH/ft)
    .2
    Nom. Capacitance Conductor to Conductor:
    Capacitance (pF/ft)
    24
    Nom. Capacitance Cond. to Other Conductor & Shield:
    Capacitance (pF/ft)
    47
    Nom. Conductor DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    2.9
    Max. Operating Voltage - UL:
    Voltage
    600 V RMS (UL AWM Style 20253); 300 V RMS (CSA)
    Max. Recommended Current:
    Current
    9.5 Amps per conductor @ 25°C
