Belden7803A Video Triax Cable Awg14 FHDPE-PE-PE RG-11/U Type 屋外可直埋高頻3GRG11雙編織影像聲音傳輸同軸電纜

474117

商品編號: Belden-7803A

Belden7803A Video Triax Cable Awg14 FHDPE-PE-PE RG-11/U Type 屋外可直埋高頻3GRG11雙編織影像聲音傳輸同軸電纜

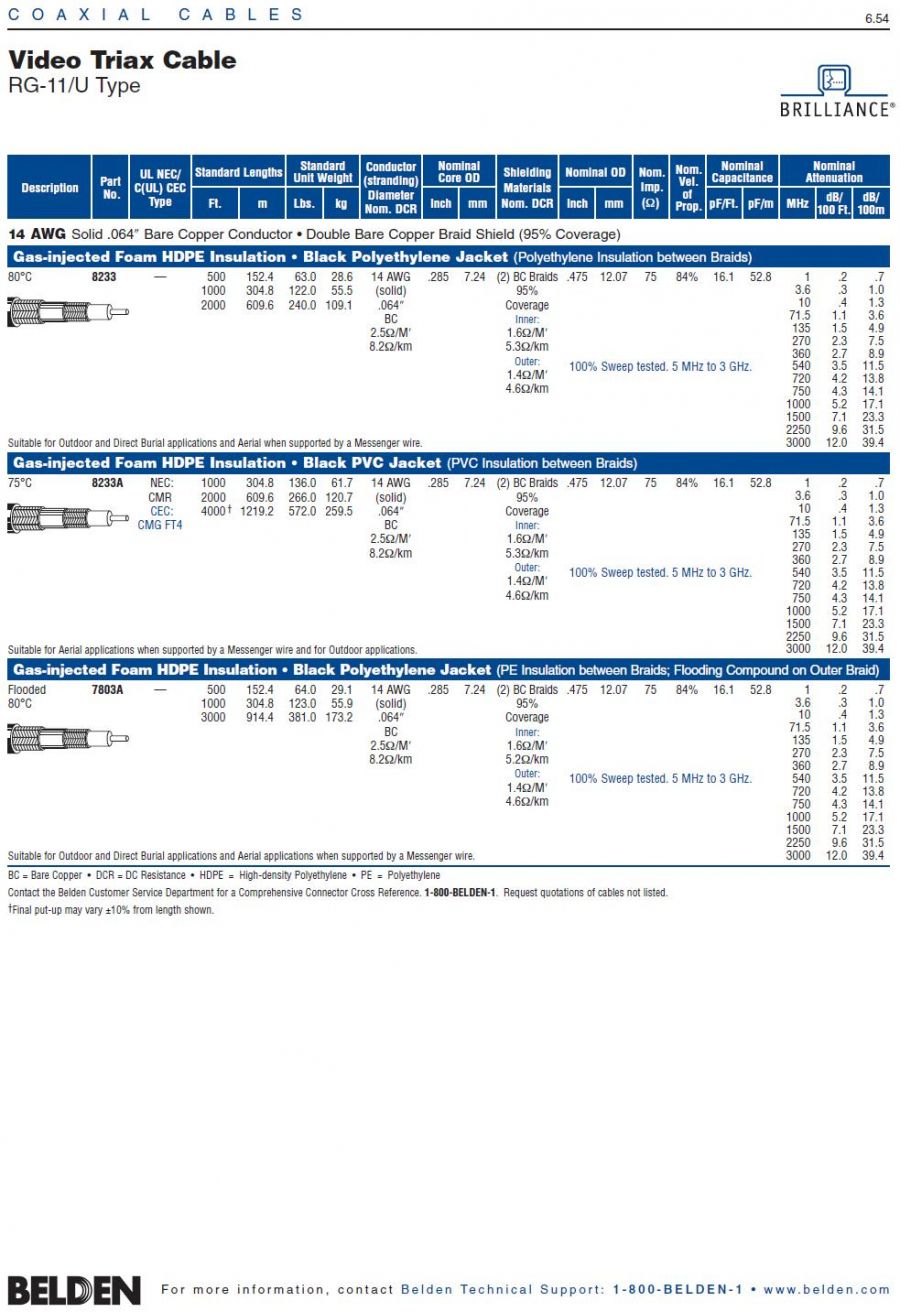

14 AWG solid .064" bare copper conductor, gas-injected foam HDPE insulation, bare copper double shields (95% coverage), polyethylene jacket.

7803A

Coax - RG-11/U Type
14 AWG solid .064" bare copper conductor, gas-injected foam HDPE insulation, bare copper double shields (95% coverage), polyethylene jacket.

For more Information
please call

1-800-Belden1

Put Ups and Colors:

Item #	Putup	Ship Weight	Color	Notes	Item Desc
7803A 0101000	1,000 FT	123.000 LB	BLACK	C	RG-11/U TYPE TRIAX

Notes:
C = CRATE REEL PUT-UP.

Physical Characteristics (Overall)

Conductor

AWG:

# Coax	AWG	Stranding	Conductor Material	Dia. (in.)
1	14	Solid	BC - Bare Copper	.064

Insulation

Insulation Material:

Insulation Material	Dia. (in.)
Gas-injected FHDPE - Foam High Density Polyethylene	.285

Inner Shield

Inner Shield Material:

Type	Inner Shield Material	Coverage (%)
Braid	BC - Bare Copper	95

Inner Jacket

Inner Jacket Material:

Inner Jacket Material	Nom. Dia. (in.)
PE - Polyethylene	.365

Outer Shield

Outer Shield Material:

Type	Outer Shield Material	Coverage (%)
Braid	BC - Bare Copper	80

Outer Shield Flooding Grease:

Polyethylene

Outer Jacket

Outer Jacket Material:

Outer Jacket Material

PE - Polyethylene

Overall Cabling

Overall Nominal Diameter:

0.475 in.

Mechanical Characteristics (Overall)

Operating Temperature Range:

-55°C To +80°C

Non-UL Temperature Rating:

80°C

Bulk Cable Weight:

113 lbs/1000 ft.

Max. Recommended Pulling Tension:

170 lbs.

Min. Bend Radius (Install)/Minor Axis:

10 in.

Applicable Specifications and Agency Compliance (Overall)

Applicable Standards & Environmental Programs

EU CE Mark:

EU Directive 2000/53/EC (ELV):

Yes

EU Directive 2002/95/EC (RoHS):

Yes

EU RoHS Compliance Date (mm/dd/yyyy):

01/01/2004

EU Directive 2002/96/EC (WEEE):

Yes

EU Directive 2003/11/EC (BFR):

Yes

CA Prop 65 (CJ for Wire & Cable):

Yes

MII Order #39 (China RoHS):

Yes

RG Type:

11/U

Suitability

Suitability - Outdoor:

Yes

Suitability - Aerial:

Yes, when supported by messenger wire

Suitability - Burial:

Yes

Plenum/Non-Plenum

Plenum (Y/N):

Electrical Characteristics (Overall)

Nom. Characteristic Impedance:

Impedance (Ohm)

Nom. Inductance:

Inductance (µH/ft)

0.097

Nom. Capacitance Conductor to Shield:

Capacitance (pF/ft)

16.1

Nominal Velocity of Propagation:

VP (%)

Nominal Delay:

Delay (ns/ft)

1.20

Nom. Conductor DC Resistance:

DCR @ 20°C (Ohm/1000 ft)

2.5

Nom. Inner Shield DC Resistance:

DCR @ 20°C (Ohm/1000 ft)

1.6

Nominal Outer Shield DC Resistance:

DCR @ 20°C (Ohm/1000 ft)

1.4

Nom. Attenuation:

Freq. (MHz)	Attenuation (dB/100 ft.)
1	0.2
3.6	0.3
10	0.4
71.5	1.1
135	1.5
270	2.3
360	2.7
540	3.5
720	4.2
750	4.3
1000	5.2
1500	7.1
2250	9.6
3000	12.0

Max. Operating Voltage - Non-UL:

Voltage

300 V RMS

Minimum Structural Return Loss:

Start Freq. (MHz)	Stop Freq. (MHz)	Min. SRL (dB)
5	850	21
851	3000	15

Sweep Test

Sweep Testing:

100% Sweep tested 5 MHz to 3 GHz.
