    首頁 > > Belden-Hypalon海巴龍電子線

    Belden 34412 Hook-up/Lead - Awg 12(65x30) UL AWM Style 3191 600V, 105°C Hypalon®海巴龍電子線
    看原圖
    454127

    商品編號: Belden-34412

    Belden 34412 Hook-up/Lead - Awg 12(65x30) UL AWM Style 3191 600V, 105°C Hypalon®海巴龍電子線


    Belden-34412

       Hook-up/Lead - UL AWM Style 3191
    Hypalon® insulation has excellent heat resistance, color stability and electrical properties. Hypalon is recommended for Class 130(B) insulation systems.
    For more Information
    please call

    1-800-Belden1
    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    34412 002500 500 FT 17.500 LB RED C F #12 STR CSM 105C 600V
    34412 005500 500 FT 17.500 LB GREEN, DARK F #12 STR CSM DGRN
    34412 010100 100 FT 4.200 LB BLACK   #12 STR CSM 105C 600V
    34412 0103000 3,000 FT 111.000 LB BLACK C I U #12 STR CSM 105C 600VBLK
    34412 010500 500 FT 17.500 LB BLACK F #12 STR CSM 105C 600V
    Notes:
    C = CRATE REEL PUT-UP.
    F = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'
    I = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 200'
    U = TOPCOAT ADDERS ON STOCK SOLID COLORS. MINIMUM ORDER 10000' PER COLORCOMBINATION. (SEE TOPCOAT ADDER TABLE)

    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Conductors AWG Stranding Conductor Material
    1 12 65x30 TC - Tinned Copper
    Insulation
    Insulation Material:
    Insulation Trade Name Insulation Material
    Hypalon® Chlorosulphonated Polyethylene
    Overall Insulation
    Overall Cabling
    Overall Nominal Diameter: 0.190 in.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    UL AWM Style: 3191
    UL Rating: 600 V, 105°C
    CSA Rating: 600 V, 105°C
    CSA Type: CL1053
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Plenum/Non-Plenum
    Plenum (Y/N): No
    Notes (Overall)
    Notes: Hypalon - Trademark of DuPont

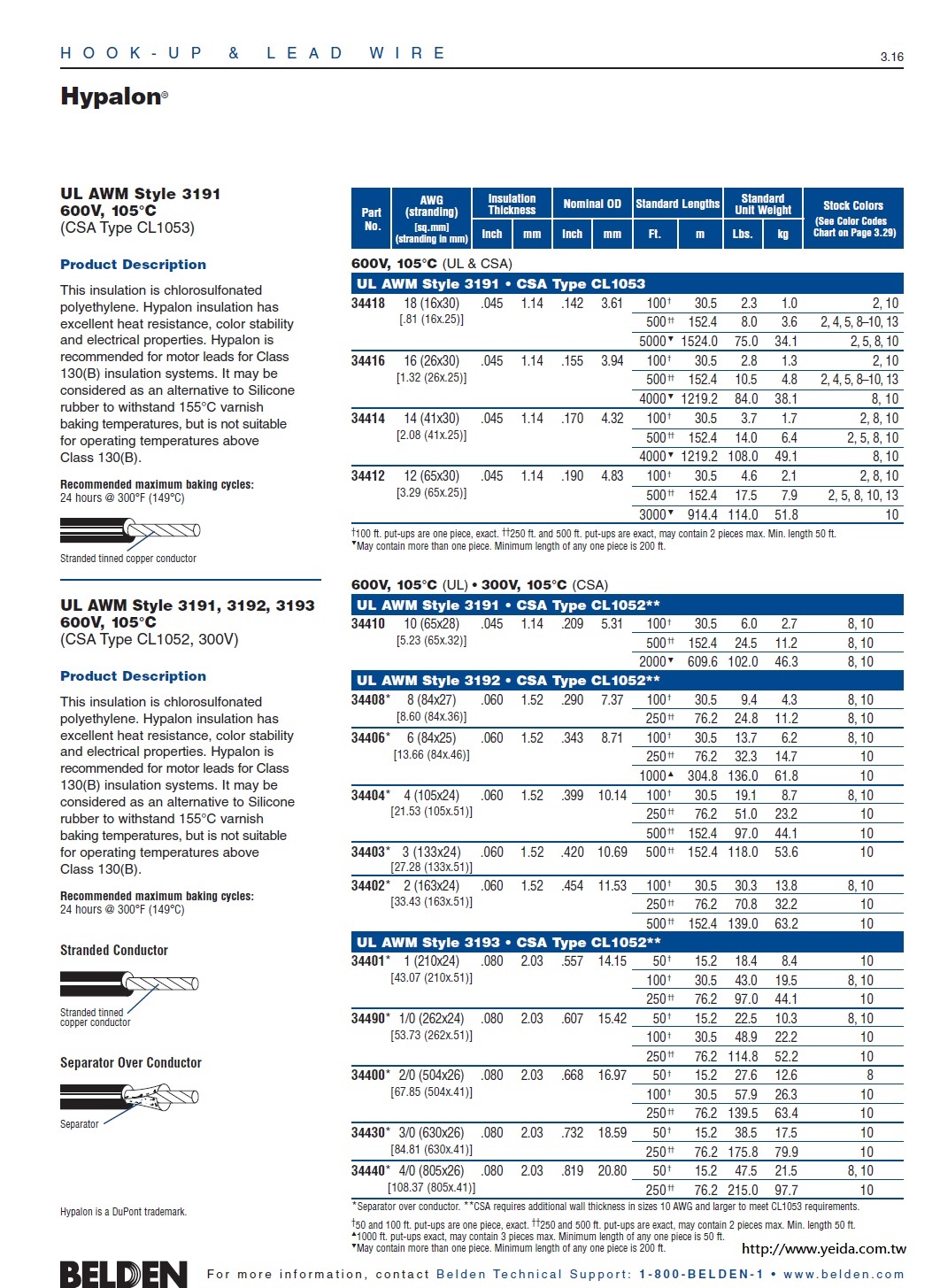

    Hypalon®

    UL AWM Style 3191
    600V, 105°C
    (CSA Type CL1053)
    Product Description

    This insulation is chlorosulfonated
    polyethylene. Hypalon insulation has
    excellent heat resistance, color stability
    and electrical properties. Hypalon is
    recommended for motor leads for Class
    130(B) insulation systems. It may be
    considered as an alternative to Silicone
    rubber to withstand 155°C varnish
    baking temperatures, but is not suitable
    for operating temperatures above
    Class 130(B).
    Recommended maximum baking cycles:
    24 hours @ 300°F (149°C)
