商品編號: Belden-34410
Belden 34410 Hook-up/Lead - Awg 10(65x28) UL AWM Style 3191, CL 1052 600V, 105°C Hypalon®海巴龍電子線
34410
|
|
Hook-up/Lead - UL AWM Style 3191
Hypalon® insulation has excellent heat resistance, color stability and electrical properties. Hypalon is recommended for Class 130(B) insulation systems. |
For more Information
please call
1-800-Belden1 |
Item # |
Putup |
Ship Weight |
Color |
Notes |
Item Desc |
34410 0082000 |
2,000 FT |
102.000 LB |
GRAY |
F |
#10 STR CSM 105C 600V |
34410 008500 |
500 FT |
24.500 LB |
GRAY |
F |
#10 STR CSM 105C 600V |
34410 010100 |
100 FT |
5.500 LB |
BLACK |
|
#10 STR CSM 105C 600V |
34410 0102000 |
2,000 FT |
100.000 LB |
BLACK |
C |
#10 STR CSM 105C 600V |
34410 010500 |
500 FT |
24.000 LB |
BLACK |
C F |
#10 STR CSM 105C 600V |
|
Notes: |
|
C = CRATE REEL PUT-UP.
F = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'
|
Physical Characteristics (Overall)
Conductor
AWG:
# Conductors |
AWG |
Stranding |
Conductor Material |
1 |
10 |
65x28 |
TC - Tinned Copper |
|
Insulation
Insulation Material:
Insulation Trade Name |
Insulation Material |
Wall Thickness (in.) |
Hypalon® |
Chlorosulphonated Polyethylene |
.045 |
|
Overall Insulation
Overall Cabling
Overall Nominal Diameter: |
0.209 in. |
Applicable Specifications and Agency Compliance (Overall)
Applicable Standards & Environmental Programs
CSA Rating: |
300 V RMS, 105°C |
EU Directive 2000/53/EC (ELV): |
Yes |
EU Directive 2002/95/EC (RoHS): |
Yes |
EU RoHS Compliance Date (mm/dd/yyyy): |
01/01/2004 |
EU Directive 2002/96/EC (WEEE): |
Yes |
EU Directive 2003/11/EC (BFR): |
Yes |
CA Prop 65 (CJ for Wire & Cable): |
Yes |
MII Order #39 (China RoHS): |
Yes |
Plenum/Non-Plenum
Notes (Overall)
Notes: |
Hypalon - Trademark of DuPont |
|
|
|

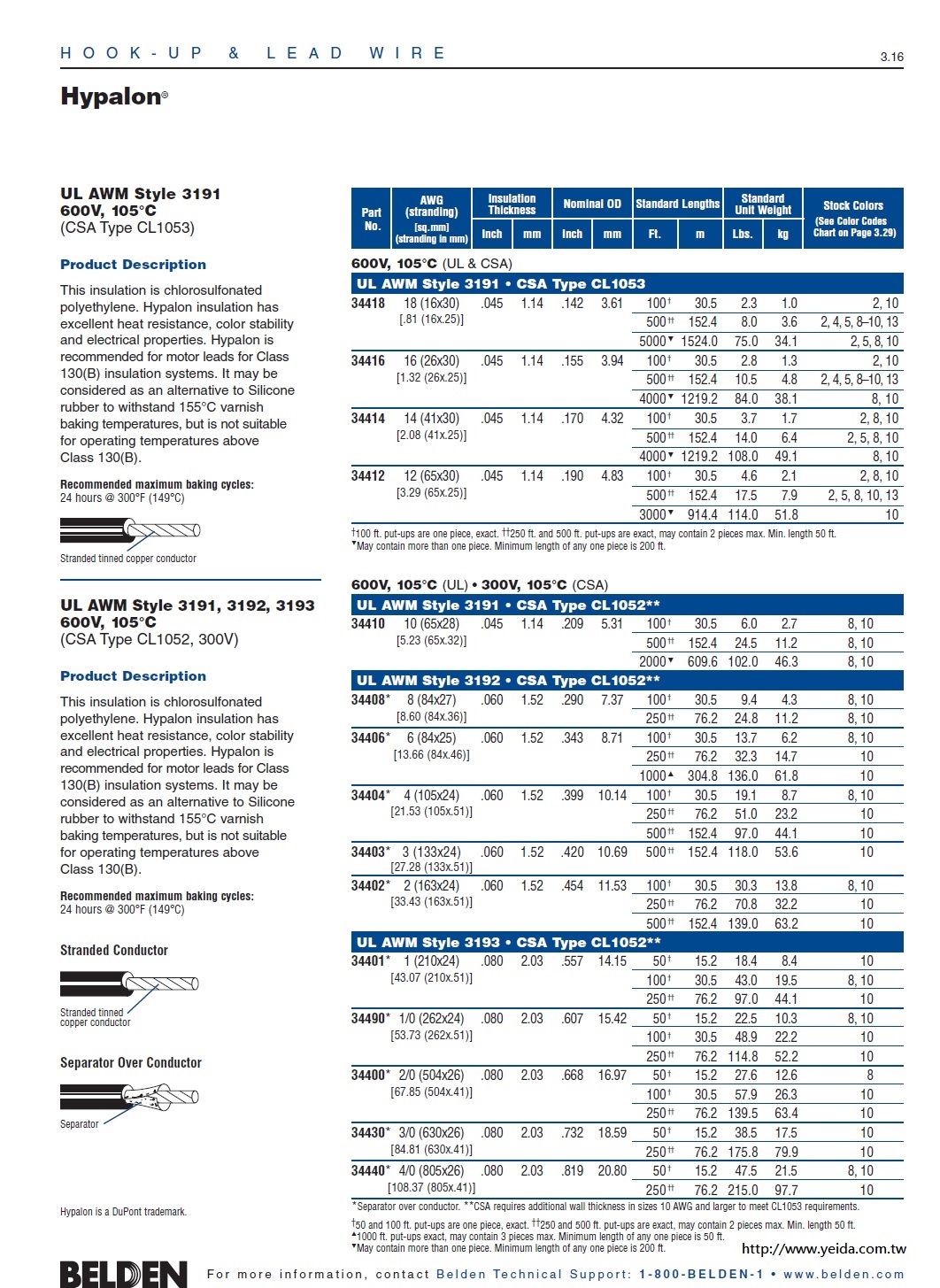

Hypalon®
UL AWM Style 3191, 3192, 3193
600V, 105°C
(CSA Type CL1052, 300V)
Product Description
This insulation is chlorosulfonated
polyethylene. Hypalon insulation has
excellent heat resistance, color stability
and electrical properties. Hypalon is
recommended for motor leads for Class
130(B) insulation systems. It may be
considered as an alternative to Silicone
rubber to withstand 155°C varnish
baking temperatures, but is not suitable
for operating temperatures above
Class 130(B).
Recommended maximum baking cycles:
24 hours @ 300°F (149°C)
|
