    Belden-34402 Hook-up/Lead - Awg 2(163x24) UL AWM Style 3192, 600V, 105°C Hypalon®海巴龍電子線
    看原圖
    454138

    商品編號: Belden-34402

    Belden-34402 Hook-up/Lead - Awg 2(163x24) UL AWM Style 3192, 600V, 105°C Hypalon®海巴龍電子線
    34402

       Hook-up/Lead - UL AWM Style 3192
    Hypalon® insulation has excellent heat resistance, color stability and electrical properties. Hypalon is recommended for Class 130(B) insulation systems.
    For more Information
    please call

    1-800-Belden1

    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    34402 010100 100 FT 30.300 LB BLACK C #2 STR CSM 105C 600V
    34402 010250 250 FT 70.750 LB BLACK C F #2 STR CSM 105C 600V
    34402 010500 500 FT 139.000 LB BLACK C F #2 STR CSM 105C 600V
    Notes:
    C = CRATE REEL PUT-UP.
    F = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'

    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Conductors AWG Stranding Conductor Material
    1 2 163x24 TC - Tinned Copper
    Insulation
    Insulation Material:
    Insulation Trade Name Insulation Material Wall Thickness (in.)
    Hypalon® Chlorosulphonated Polyethylene .060
    Separator
    Separator Material over Conductor: Y
    Overall Insulation
    Overall Cabling
    Overall Nominal Diameter: 0.454 in.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    UL AWM Style: 3192
    UL Rating: 600 V, 105°C
    CSA Rating: 300 V RMS, 105°C
    CSA Type: CL1052
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Plenum/Non-Plenum
    Plenum (Y/N): No
    Notes (Overall)
    Notes: Hypalon - Trademark of DuPont

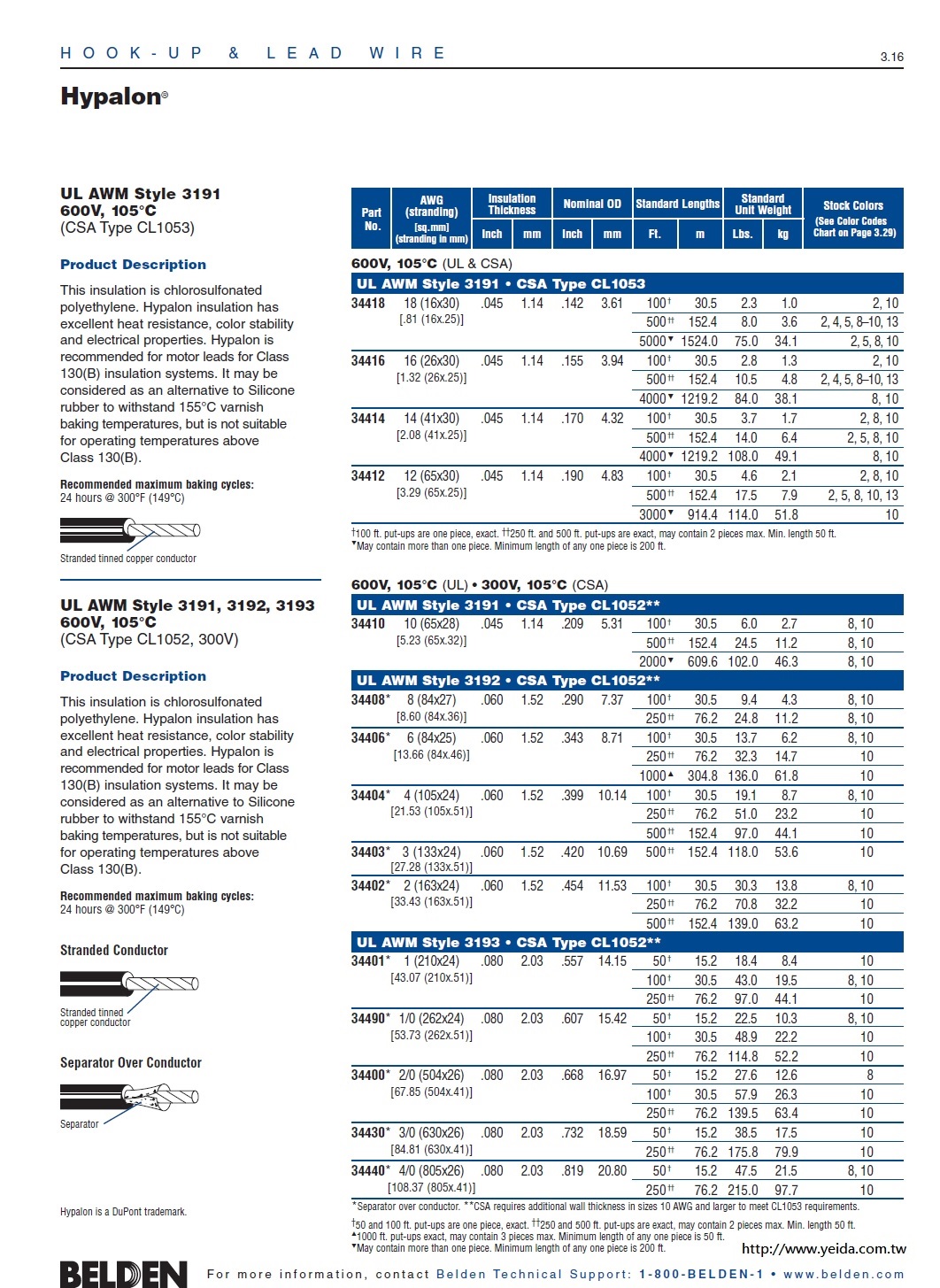

    Hypalon®

    UL AWM Style 3191, 3192, 3193
    600V, 105°C
    (CSA Type CL1052, 300V)


    Product Description
    This insulation is chlorosulfonated
    polyethylene. Hypalon insulation has
    excellent heat resistance, color stability
    and electrical properties. Hypalon is
    recommended for motor leads for Class
    130(B) insulation systems. It may be
    considered as an alternative to Silicone
    rubber to withstand 155°C varnish
    baking temperatures, but is not suitable
    for operating temperatures above
    Class 130(B).
    Recommended maximum baking cycles:
    24 hours @ 300°F (149°C)
