商品編號: Belden-34401

Belden 34401 Hook-up/Lead - Awg 1(210x24) UL AWM Style 3193 CL1052 600V, 105°C Hypalon®海巴龍電子線

BELDEN34401      Hook-up/Lead - UL AWM Style 3193 Hypalon® insulation has excellent heat resistance, color stability and electrical properties. Hypalon is recommended for Class 130(B) insulation systems. For more Information please call 1-800-Belden1 Put Ups and Colors: Item # Putup Ship Weight Color Notes Item Desc 34401 010100 100 FT 42.300 LB BLACK C #1 STR CSM 105C 600V 34401 010250 250 FT 97.000 LB BLACK C F #1 STR CSM 105C 600V 34401 01050 50 FT 18.400 LB BLACK 　 #1 STR CSM 105C 600V Notes: 　 C = CRATE REEL PUT-UP. F = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50' 　 Physical Characteristics (Overall) Conductor AWG: # Conductors AWG Stranding Conductor Material 1 1 210x24 TC - Tinned Copper Insulation Insulation Material: Insulation Trade Name Insulation Material Wall Thickness (in.) Hypalon® Chlorosulphonated Polyethylene .080 Separator Separator Material over Conductor: Y Overall Insulation Overall Cabling Overall Nominal Diameter: 0.557 in. Applicable Specifications and Agency Compliance (Overall) Applicable Standards & Environmental Programs UL AWM Style: 3193 UL Rating: 600 V, 105°C CSA Rating: 300 V RMS, 105°C CSA Type: CL1052 EU Directive 2000/53/EC (ELV): Yes EU Directive 2002/95/EC (RoHS): Yes EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004 EU Directive 2002/96/EC (WEEE): Yes EU Directive 2003/11/EC (BFR): Yes CA Prop 65 (CJ for Wire & Cable): Yes MII Order #39 (China RoHS): Yes Plenum/Non-Plenum Plenum (Y/N): No Notes (Overall) Notes: Hypalon - Trademark of DuPont

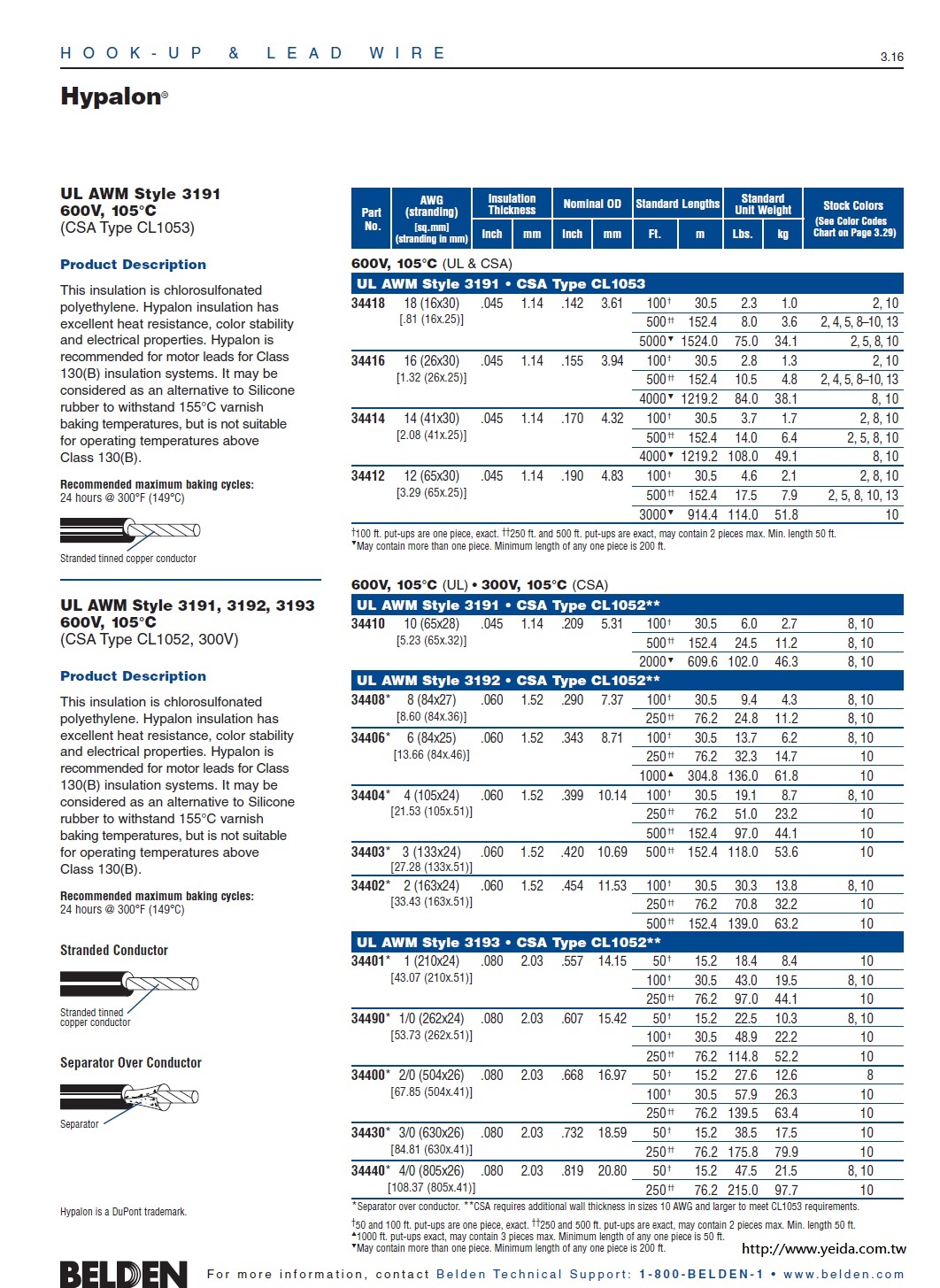

Hypalon®

UL AWM Style 3191, 3192, 3193
600V, 105°C
(CSA Type CL1052, 300V)

Product Description
This insulation is chlorosulfonated
polyethylene. Hypalon insulation has
excellent heat resistance, color stability
and electrical properties. Hypalon is
recommended for motor leads for Class
130(B) insulation systems. It may be
considered as an alternative to Silicone
rubber to withstand 155°C varnish
baking temperatures, but is not suitable
for operating temperatures above
Class 130(B).
Recommended maximum baking cycles:
24 hours @ 300°F (149°C)
