    首頁 > > Belden-Teflon鐵弗龍高溫電子線

    Belden83023 Hook-up/Lead  - Awg 24 UL AWM Style 1180 (Type EE) MIL-W-16878/5 Teflon — 1000V, 200°C 軍規耐高溫鐵氟龍電子線
    看原圖
    454858

    商品編號: Belden83023

    Belden-83023 Hook-up/Lead - Awg 24 UL AWM Style 1180 (Type EE) MIL-W-16878/5 Teflon — 1000V, 200°C 軍規耐高溫鐵氟龍電子線
    83023    Hook-up/Lead - UL AWM Style 1180
    Stranded silver-coated copper conductor insulation with extruded TFE Teflon.
    For more Information
    please call

    1-800-Belden1

    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    83023 001100 100 FT 0.200 LB BROWN E #24 STR TFE BRN
    83023 0011000 1,000 FT 4.000 LB BROWN E S #24 STR TFE BRN
    83023 002100 100 FT 0.200 LB RED E #24 STR TFE RED
    83023 0021000 1,000 FT 4.000 LB RED E S #24 STR TFE RED
    83023 003100 100 FT 0.200 LB ORANGE E 124 STR TFE ORG
    83023 0031000 1,000 FT 4.000 LB ORANGE E S #24 STR TFE ORG
    83023 004100 100 FT 0.200 LB YELLOW E #24 STR TFE YEL
    83023 0041000 1,000 FT 4.000 LB YELLOW E S #24 STR TFE YEL
    83023 005100 100 FT 0.200 LB GREEN, DARK E #24 STR TFE GRNDK
    83023 0051000 1,000 FT 4.000 LB GREEN, DARK E S #24 STR TFE GRNDK
    83023 006100 100 FT 0.200 LB BLUE, LIGHT E #24 STR TFE BLULT
    83023 0061000 1,000 FT 4.000 LB BLUE, LIGHT E S #24 STR TFE BLULT
    83023 007100 100 FT 0.200 LB VIOLET E #24 STR TFE VIO
    83023 0071000 1,000 FT 4.000 LB VIOLET E S #24 STR TFE VIO
    83023 008100 100 FT 0.200 LB GRAY E #24 STR TFE GRY
    83023 0081000 1,000 FT 4.000 LB GRAY E S #24 STR TFE GRY
    83023 009100 100 FT 0.200 LB WHITE E #24 STR TFE WHT
    83023 0091000 1,000 FT 4.000 LB WHITE E S #24 STR TFE WHT
    83023 010100 100 FT 0.200 LB BLACK E #24 STR TFE BLK
    83023 0101000 1,000 FT 4.000 LB BLACK   #24 STR TFE BLK
    Notes:
    E = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 25'
    S = STRIPING ADDERS FOR TYPES E AND EE: 123 STRIPES. MINIMUM ORDER10

    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Conductors AWG Stranding Conductor Material
    1 24 19x36 SPC - Silver Plated Copper
    Insulation
    Insulation Material:
    Insulation Material Wall Thickness (in.)
    TFE - Tetrafluoroethylene .015
    Overall Insulation
    Overall Cabling
    Overall Nominal Diameter: 0.054 in.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    UL AWM Style: 1180
    UL Rating: 300 V RMS, 200°C
    EU CE Mark: Yes
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Military Specification: MIL-W-16878/5 (Except for Stranding)
    MIL Spec Rating: 1000 V, 200°C
    Flame Test
    UL Flame Test: VW-1
    Plenum/Non-Plenum
    Plenum (Y/N): No

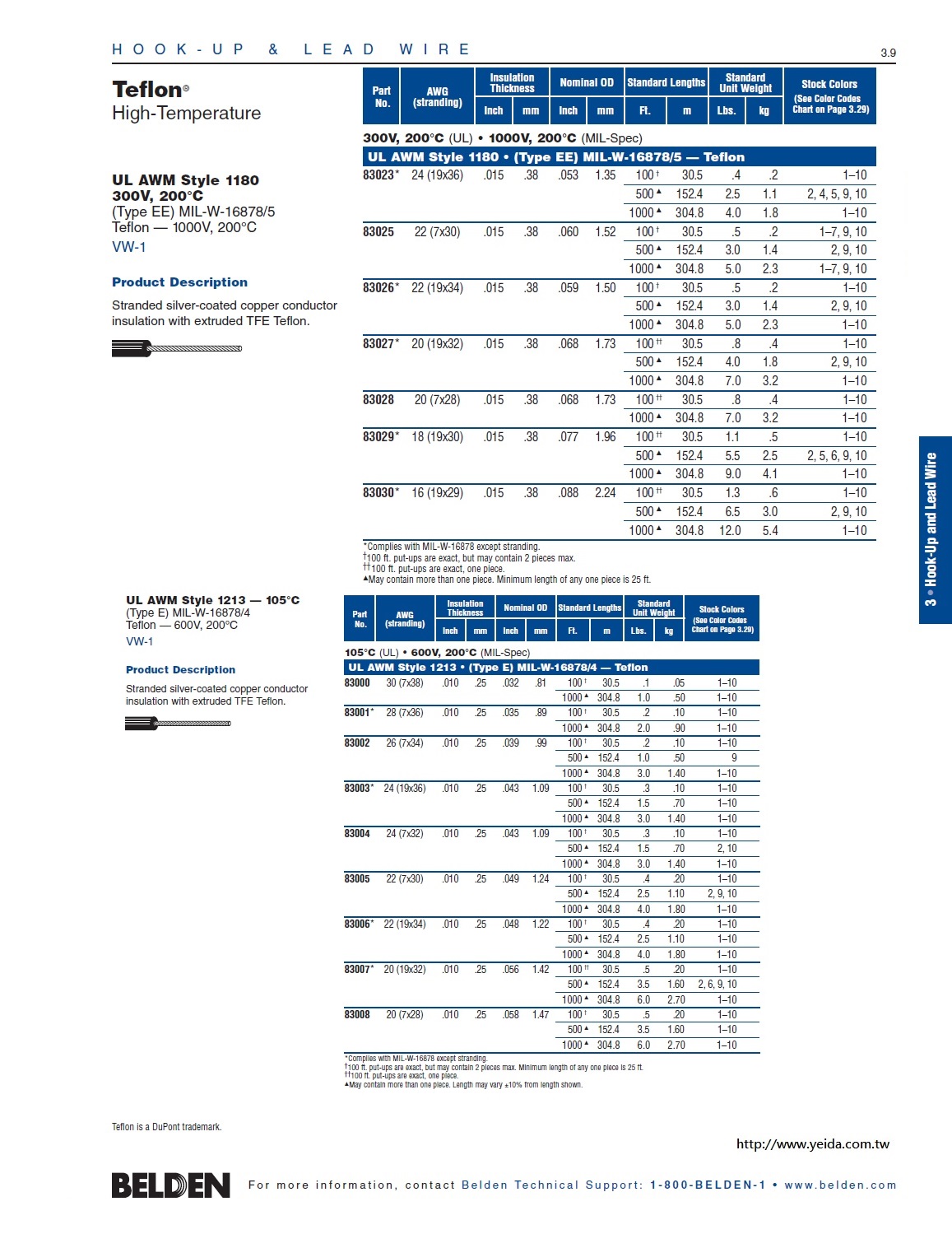

    Teflon® HighTemperature                                                                                                                                                                                           UL AWM Style 1180
    300V, 200°C
    (Type EE) MIL-W-16878/5
    Teflon — 1000V, 200°C
    VW-1
    Product Description

    Stranded silver-coated copper conductor
    insulation with extruded TFE Teflon.
