Belden83001 Hook-up/Lead - Awg 28 UL AWM Style 1213 (Type E) MIL-W-16878/4 Teflon — 600V, 200°C 軍規耐高溫鐵氟龍電子線

455127

商品編號: Belden83001

Belden-83001 Hook-up/Lead - Awg 28 UL AWM Style 1213 (Type E) MIL-W-16878/4 Teflon — 600V, 200°C 軍規耐高溫鐵氟龍電子線

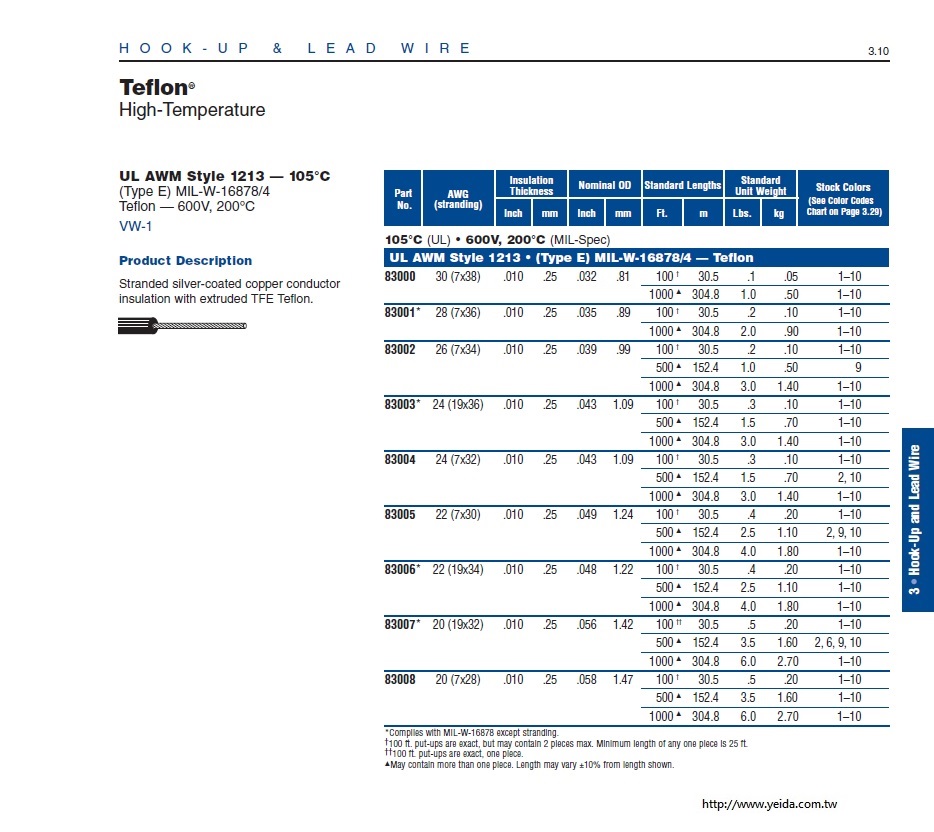

Teflon® HighTemperature UL AWM Style 1213 — 105°C
(Type E) MIL-W-16878/4
Teflon — 600V, 200°C
VW-1
　

Product Description
Stranded silver-coated copper conductor
insulation with extruded TFE Teflon.

83001

Hook-up/Lead - UL AWM Style 1213
Stranded silver-coated copper conductor insulation with extruded TFE Teflon.

For more Information
please call

1-800-Belden1

Put Ups and Colors:

Item #	Putup	Ship Weight	Color	Notes	Item Desc
83001 001100	100 FT	0.100 LB	BROWN	E	#28 STR TFE BRN
83001 0011000	1,000 FT	1.000 LB	BROWN	E S	#28 STR TFE BRN
83001 002100	100 FT	0.100 LB	RED	E	#28 STR TFE RED
83001 0021000	1,000 FT	1.000 LB	RED	E S	#28 STR TFE RED
83001 003100	100 FT	0.100 LB	ORANGE	E	#28 STR TFE ORG
83001 0031000	1,000 FT	1.000 LB	ORANGE	E S	#28 STR TFE ORG
83001 004100	100 FT	0.100 LB	YELLOW	E	#28 STR TFE YEL
83001 0041000	1,000 FT	1.000 LB	YELLOW	E S	#28 STR TFE YEL
83001 005100	100 FT	0.100 LB	GREEN, DARK	E	#28 STR TFE GRNDK
83001 0051000	1,000 FT	1.000 LB	GREEN, DARK	E S	#28 STR TFE GRNDK
83001 006100	100 FT	0.100 LB	BLUE, LIGHT	E	#28 STR TFE BLULT
83001 0061000	1,000 FT	1.000 LB	BLUE, LIGHT	E S	#28 STR TFE BLULT
83001 007100	100 FT	0.100 LB	VIOLET	E	#28 STR TFE VIO
83001 0071000	1,000 FT	1.000 LB	VIOLET	E S	#28 STR TFE VIO
83001 008100	100 FT	0.100 LB	GRAY	E	#28 STR TFE GRY
83001 0081000	1,000 FT	1.000 LB	GRAY	E S	#28 STR TFE GRY
83001 009100	100 FT	0.100 LB	WHITE	E	#28 STR TFE WHT
83001 0091000	1,000 FT	1.000 LB	WHITE	E S	#28 STR TFE WHT
83001 010100	100 FT	0.100 LB	BLACK	E	#28 STR TFE BLK
83001 0101000	1,000 FT	1.000 LB	BLACK	E S	#28 STR TFE BLK

Notes:
E = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 25' S = STRIPING ADDERS FOR TYPES E AND EE: 123 STRIPES. MINIMUM ORDER10

Physical Characteristics (Overall)

Conductor

AWG:

# Conductors	AWG	Stranding	Conductor Material
1	28	7x36	SPC - Silver Plated Copper

Insulation

Insulation Material:

Insulation Material	Wall Thickness (in.)
TFE - Tetrafluoroethylene	.010

Overall Insulation

Overall Cabling

Overall Nominal Diameter:

0.035 in.

Mechanical Characteristics (Overall)

Bulk Cable Weight:

1.300 lbs/1000 ft.

Applicable Specifications and Agency Compliance (Overall)

Applicable Standards & Environmental Programs

UL AWM Style:

1213

UL Rating:

105°C

EU CE Mark:

Yes

EU Directive 2000/53/EC (ELV):

Yes

EU Directive 2002/95/EC (RoHS):

Yes

EU RoHS Compliance Date (mm/dd/yyyy):

04/01/2005

EU Directive 2002/96/EC (WEEE):

Yes

EU Directive 2003/11/EC (BFR):

Yes

CA Prop 65 (CJ for Wire & Cable):

Yes

MII Order #39 (China RoHS):

Yes

Military Specification:

MIL-W-16878/4 (Except For Stranding)

MIL Spec Rating:

600 V, 200°C

Flame Test

UL Flame Test:

VW-1

Plenum/Non-Plenum

Plenum (Y/N):

Electrical Characteristics (Overall)

Max. Recommended Current:

Description	Current
Single conductor in ambient air of 30C	1.8 amps
