    首頁 > > Belden-Teflon鐵弗龍高溫電子線

    Belden83008  Hook-up/Lead - Awg 20(7x28) UL AWM Style 1213 (Type E) MIL-W-16878/4 Teflon — 600V, 200°C 軍規耐高溫鐵氟龍電子線
    看原圖
    455142

    商品編號: Belden-83008

    Belden-83008 Hook-up/Lead - Awg 20(7x28) UL AWM Style 1213 (Type E) MIL-W-16878/4 Teflon — 600V, 200°C 軍規耐高溫鐵氟龍電子線



    google,yahoo,

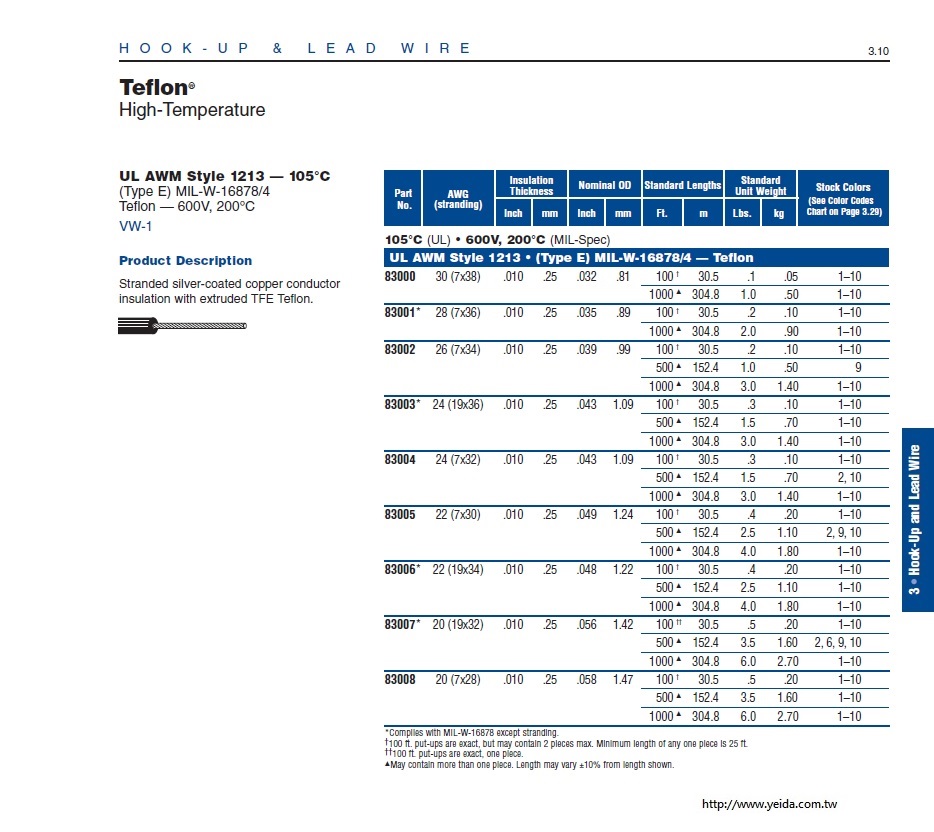

    Teflon® HighTemperature UL AWM Style 1213 — 105°C
    (Type E) MIL-W-16878/4
    Teflon — 600V, 200°C
    VW-1


    Product Description
    Stranded silver-coated copper conductor
    insulation with extruded TFE Teflon.

    83008
       Hook-up/Lead - UL AWM Style 1213
    Stranded silver-coated copper conductor insulation with extruded TFE Teflon.
    For more Information
    please call

    1-800-Belden1
    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    83008 001100 100 FT 0.400 LB BROWN   #20 STR TFE BRN
    83008 0011000 1,000 FT 6.000 LB BROWN S W #20 STR TFE BRN
    83008 002100 100 FT 0.400 LB RED   #20 STR TFE RED
    83008 0021000 1,000 FT 6.000 LB RED S W #20 STR TFE RED
    83008 003100 100 FT 0.400 LB ORANGE   #20 STR TFE ORG
    83008 0031000 1,000 FT 6.000 LB ORANGE S W #20 STR TFE ORG
    83008 004100 100 FT 0.400 LB YELLOW   #20 STR TFE YEL
    83008 0041000 1,000 FT 6.000 LB YELLOW S W #20 STR TFE YEL
    83008 005100 100 FT 0.400 LB GREEN, DARK   #20 STR TFE GRNDK
    83008 0051000 1,000 FT 6.000 LB GREEN, DARK S W #20 STR TFE GRNDK
    83008 006100 100 FT 0.400 LB BLUE, LIGHT   #20 STR TFE BLULT
    83008 0061000 1,000 FT 6.000 LB BLUE, LIGHT S W #20 STR TFE BLULT
    83008 0071000 1,000 FT 6.000 LB VIOLET S W #20 STR TFE VIO
    83008 0081000 1,000 FT 6.000 LB GRAY S W #20 STR TFE GRY
    83008 009100 100 FT 0.400 LB WHITE   #20 STR TFE WHT
    83008 0091000 1,000 FT 6.000 LB WHITE S W #20 STR TFE WHT
    83008 010100 100 FT 0.400 LB BLACK   #20 STR TFE BLK
    83008 0101000 1,000 FT 6.000 LB BLACK S W #20 STR TFE BLK
    Notes:
    S = STRIPING ADDERS FOR TYPES E AND EE: 123 STRIPES. MINIMUM ORDER10
    W = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 75'

    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Conductors AWG Stranding Conductor Material
    1 20 7x28 SPC - Silver Plated Copper
    Insulation
    Insulation Material:
    Insulation Material Wall Thickness (in.)
    TFE - Tetrafluoroethylene .010
    Overall Insulation
    Overall Cabling
    Overall Nominal Diameter: 0.058 in.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    UL AWM Style: 1213
    UL Rating: 105°C
    EU CE Mark: Yes
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Military Specification: MIL-W-16878/4
    MIL Spec Rating: 600 V, 200°C
    Flame Test
    UL Flame Test: VW-1
    Plenum/Non-Plenum
    Plenum (Y/N): No
