    首頁 > > Belden-Neoprene鳥玻林電子線

    Belden31514 Hook-up/Lead - Awg 14 UL AWM Style 3046 CSA Type CL903 600V, 90°C 鳥波林電子線
    看原圖
    		455488

    商品編號: Belden-31514

    Belden31514    Hook-up/Lead  - Awg 14 UL AWM Style 3046 CSA Type CL903 600V, 90°C 鳥波林電子線

    31514

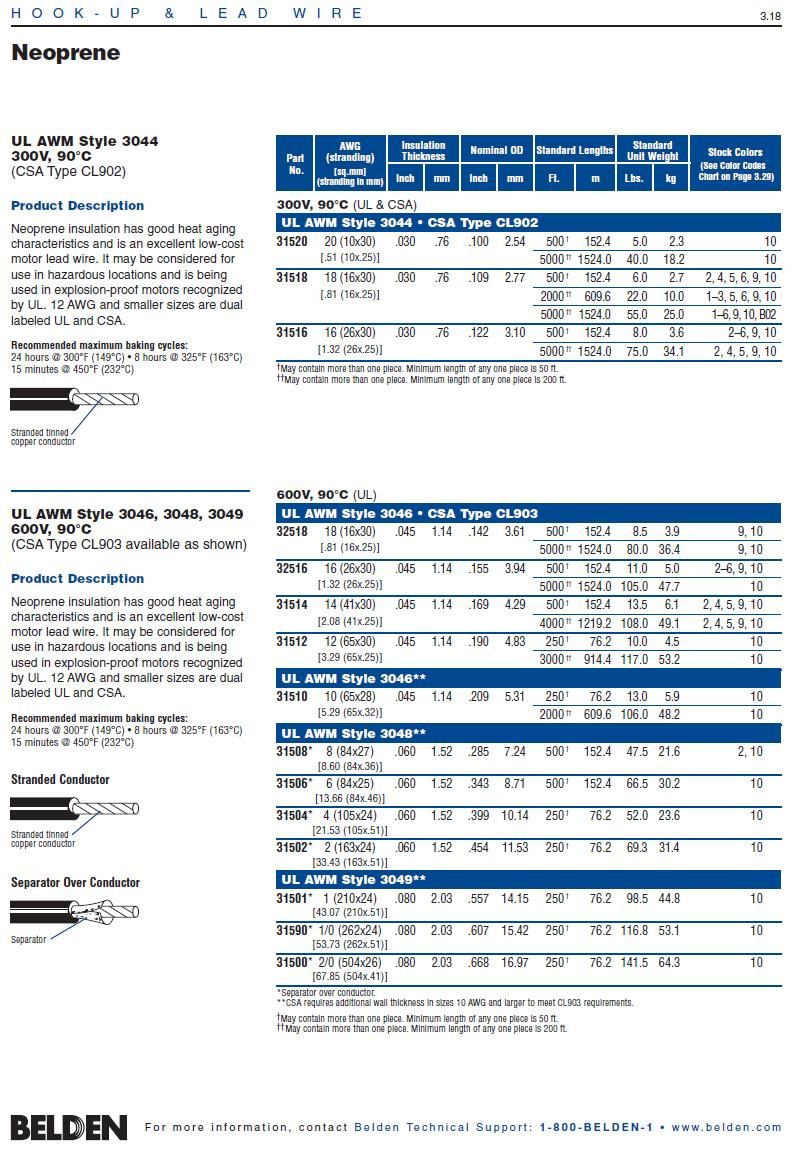

    		    Hook-up/Lead - UL AWM Style 3046
    Neoprene insulation has good heat aging characterstics and is an excellent low-cost motor lead wire. It may be considered for use in hazardous locations and is being used in explosion-proof motors recognized by UL.    		 For more Information
    please call

    1-800-Belden1
    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    31514 0024000 4,000 FT 108.000 LB RED C I U #14 STR CR 90C 600V RED
    31514 0044000 4,000 FT 108.000 LB YELLOW C I U #14 STR CR 90C 600V YEL
    31514 0054000 4,000 FT 108.000 LB GREEN, DARK C I U #14 STR CR 90C 600V DGRN
    31514 005500 500 FT 13.500 LB GREEN, DARK F #14 STR CR 90C 600V
    31514 009500 500 FT 13.500 LB WHITE F #14 STR CR 90C 600V
    31514 0104000 4,000 FT 108.000 LB BLACK C I U #14 STR CR 90C 600V BLK
    31514 010500 500 FT 13.500 LB BLACK F #14 STR CR 90C 600V
    Notes: 　
    C = CRATE REEL PUT-UP.
    F = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'
    I = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 200'
    U = TOPCOAT ADDERS ON STOCK SOLID COLORS. MINIMUM ORDER 10000' PER COLORCOMBINATION. (SEE TOPCOAT ADDER TABLE)
    　
    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Conductors AWG Stranding Conductor Material
    1 14 41x30 TC - Tinned Copper
    Insulation
    Insulation Material:
    Insulation Material Wall Thickness (in.)
    Neoprene .045
    Overall Insulation
    Overall Cabling
    Overall Nominal Diameter: 0.169 in.
    Mechanical Characteristics (Overall)
    Non-UL Temperature Rating: 90°C
    Recommended Maximum Baking Cycles: 24 Hours @ 300°F (149°C) ~ 8 Hours @ 325°F (163°C) ~ 15 Minutes @ 450°F (232°C)
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    UL AWM Style: 3046
    UL Rating: 600 V, 90°C
    CSA Rating: 600 V, 90°C
    CSA Type: CL903
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Plenum/Non-Plenum
    Plenum (Y/N): No
