商品編號: Belden-31510
Belden31510 Awg10 Hook-up/Lead - UL AWM Style 3046 600V, 90°C 鳥波林電子線
31510
|
|

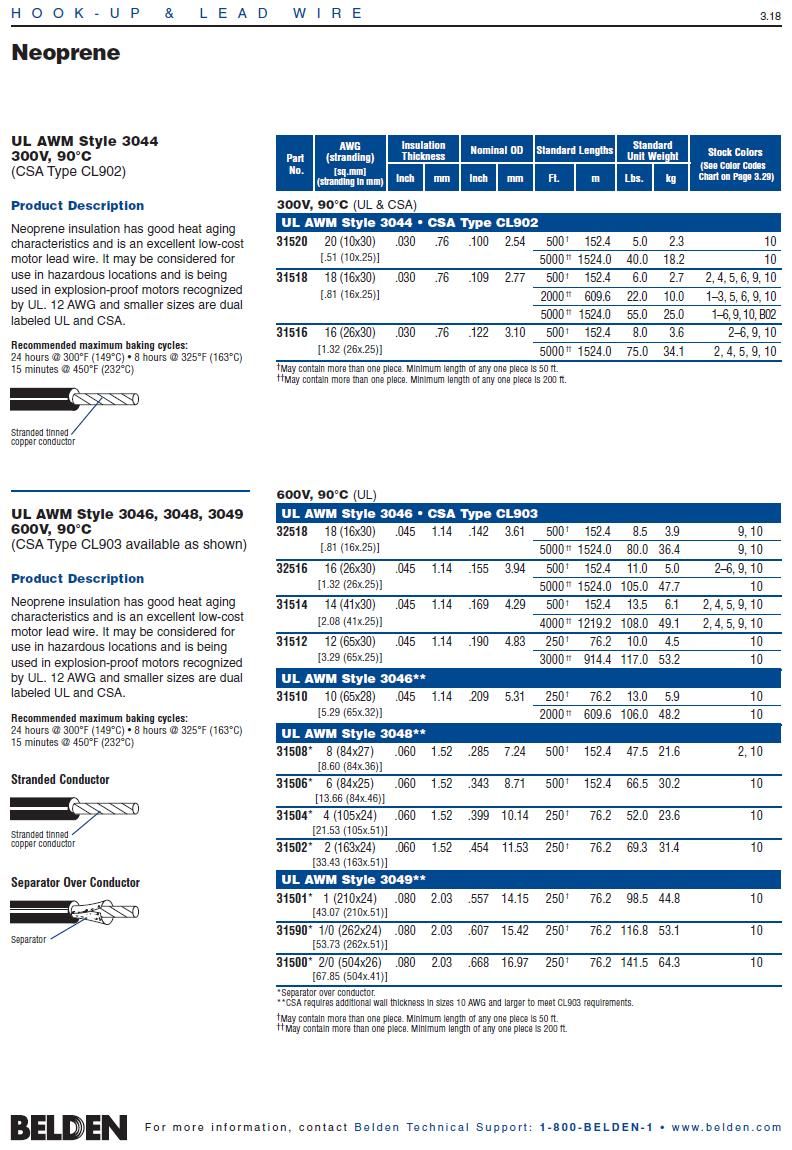

Hook-up/Lead - UL AWM Style 3046
Neoprene insulation has good heat aging characteristics and is an excellent low-cost motor lead wire. It may be considered for use in hazardous locations and is being used in explosion-proof motors recognized by UL. |
For more Information
please call
1-800-Belden1 |
Item # |
Putup |
Ship Weight |
Color |
Notes |
Item Desc |
31510 0102000 |
2,000 FT |
106.000 LB |
BLACK |
|
#10 STR CR 90C 600V |
31510 010250 |
250 FT |
13.000 LB |
BLACK |
F |
#10 STR CR 90C 600V |
|
Notes: |
|
F = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'
|
Physical Characteristics (Overall)
Conductor
AWG:
# Conductors |
AWG |
Stranding |
Conductor Material |
1 |
10 |
65x28 |
TC - Tinned Copper |
|
Insulation
Insulation Material:
Insulation Material |
Wall Thickness (in.) |
Neoprene |
.045 |
|
Overall Insulation
Overall Cabling
Overall Nominal Diameter: |
0.209 in. |
Mechanical Characteristics (Overall)
Non-UL Temperature Rating: |
90°C |
Recommended Maximum Baking Cycles: |
24 Hours @ 300°F (149°C) ~ 8 Hours @ 325°F (163°C) ~ 15 Minutes @ 450°F (232°C) |
Applicable Specifications and Agency Compliance (Overall)
Applicable Standards & Environmental Programs
EU Directive 2000/53/EC (ELV): |
Yes |
EU Directive 2002/95/EC (RoHS): |
Yes |
EU RoHS Compliance Date (mm/dd/yyyy): |
01/01/2004 |
EU Directive 2002/96/EC (WEEE): |
Yes |
EU Directive 2003/11/EC (BFR): |
Yes |
CA Prop 65 (CJ for Wire & Cable): |
Yes |
MII Order #39 (China RoHS): |
Yes |
Plenum/Non-Plenum
|
|
|
|
|
