商品編號: Belden-31508

Belden31508 Hook-up/Lead - Awg 8 UL AWM Style 3048 600V, 90°C 鳥波林電子線


31508    Hook-up/Lead - UL AWM Style 3048 Neoprene insulation has good heat aging characteristics and is an excellent low-cost motor lead wire. It may be considered for use in hazardous locations and is being used in explosion-proof motors recognized by UL. For more Information please call 1-800-Belden1 Put Ups and Colors: Item # Putup Ship Weight Color Notes Item Desc 31508 002500 500 FT 47.500 LB RED C F #8 STR CR 90C 600V 31508 010500 500 FT 47.500 LB BLACK C F #8 STR CR 90C 600V Notes: 　 C = CRATE REEL PUT-UP. F = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50' 　 Physical Characteristics (Overall) Conductor AWG: # Conductors AWG Stranding Conductor Material 1 8 84x27 TC - Tinned Copper Insulation Insulation Material: Insulation Material Wall Thickness (in.) Neoprene .060 Separator Separator Material over Conductor: Y Overall Insulation Overall Cabling Overall Nominal Diameter: 0.285 in. Mechanical Characteristics (Overall) Non-UL Temperature Rating: 90°C Recommended Maximum Baking Cycles: 24 Hours @ 300°F (149°C) ~ 8 Hours @ 325°F (163°C) ~ 15 Minutes @ 450°F (232°C) Applicable Specifications and Agency Compliance (Overall) Applicable Standards & Environmental Programs UL AWM Style: 3048 UL Rating: 600 V, 90°C EU Directive 2000/53/EC (ELV): Yes EU Directive 2002/95/EC (RoHS): Yes EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004 EU Directive 2002/96/EC (WEEE): Yes EU Directive 2003/11/EC (BFR): Yes CA Prop 65 (CJ for Wire & Cable): Yes MII Order #39 (China RoHS): Yes Plenum/Non-Plenum Plenum (Y/N): No

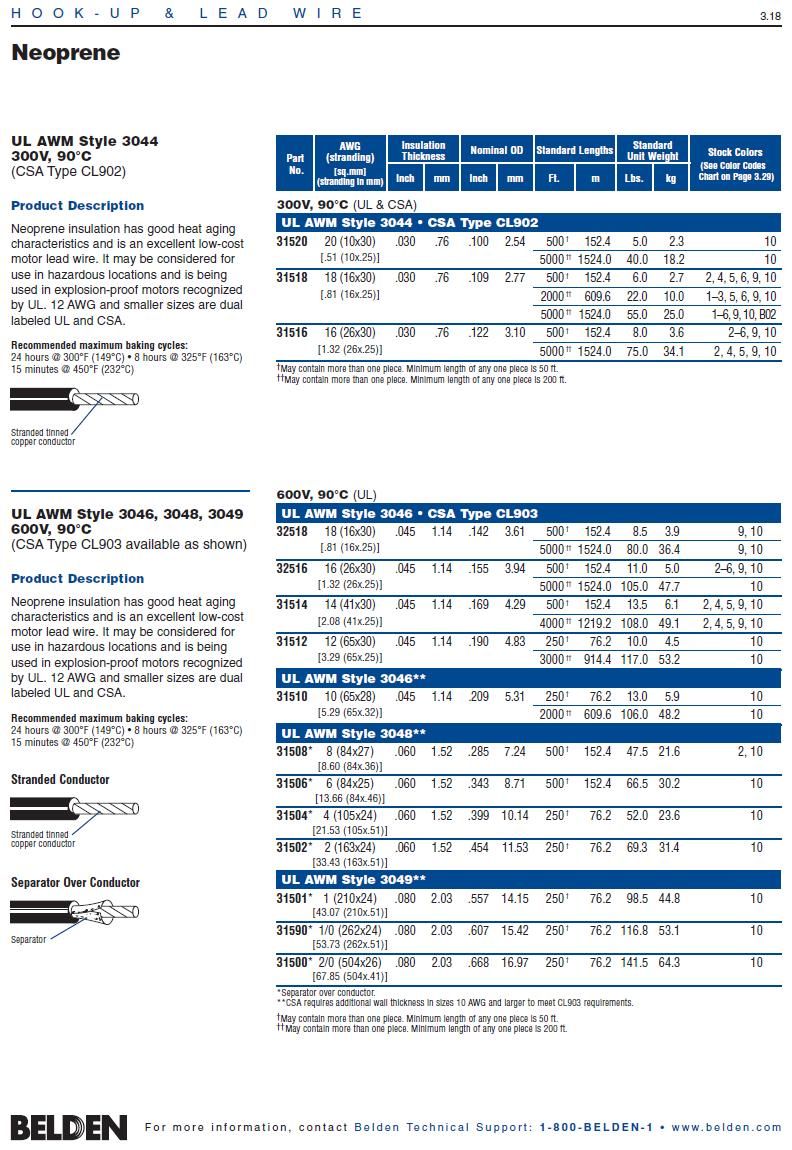

UL AWM Style 3046, 3048, 3049
600V, 90°C
(CSA Type CL903 available as shown)
　

Product Description
Neoprene insulation has good heat aging
characteristics and is an excellent low-cost
motor lead wire. It may be considered for
use in hazardous locations and is being
used in explosion-proof motors recognized
by UL. 12 AWG and smaller sizes are dual
labeled UL and CSA.
Recommended maximum baking cycles:
24 hours @ 300°F (149°C) • 8 hours @ 325°F (163°C)
15 minutes @ 450°F (232°C)
