    首頁 > > Belden-Neoprene鳥玻林電子線

    Belden31504    Hook-up/Lead  - Awg 4  UL AWM Style 3048 600V, 90°C 鳥波林電子線

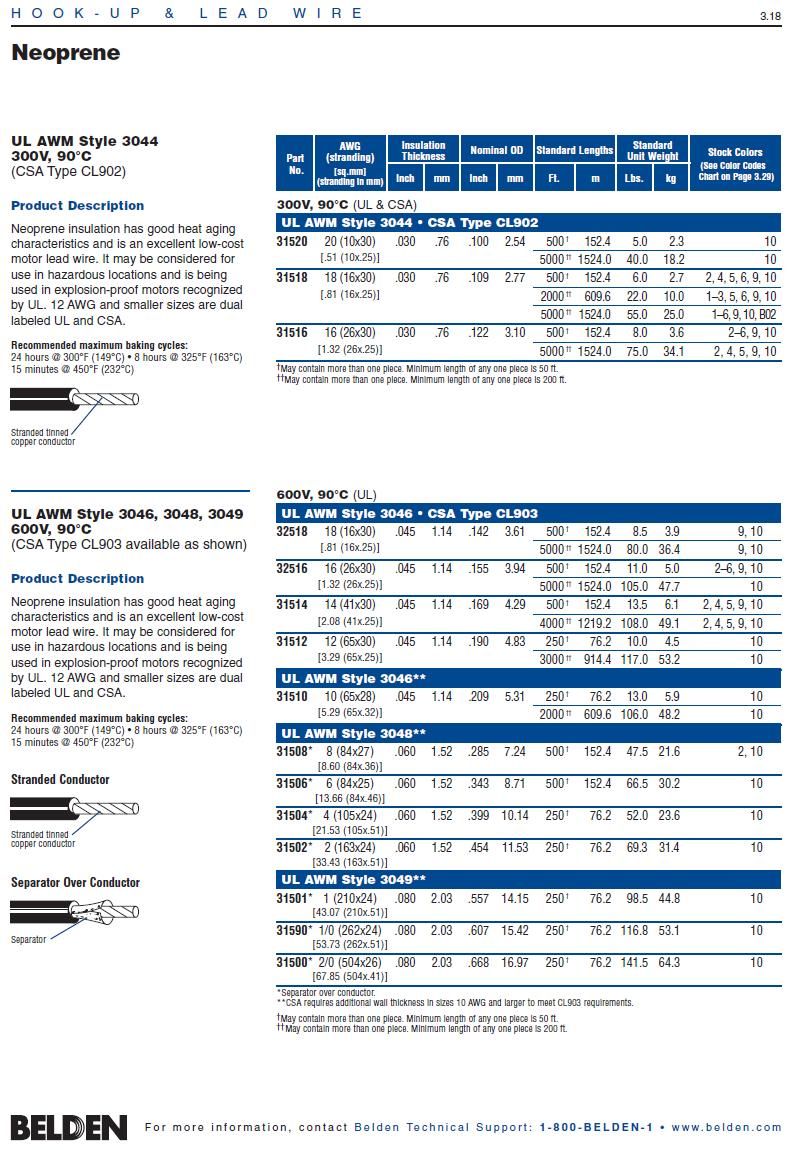

    看原圖
    455497

    商品編號: Belden-31504

    Belden31504 Hook-up/Lead - Awg 4 UL AWM Style 3048 600V, 90°C 鳥波林電子線

    31504
       Hook-up/Lead - UL AWM Style 3048
    Neoprene insulation has good heat aging characteristics and is an excellent low-cost motor lead wire. It may be considered for use in hazardous locations and is being used in explosion-proof motors recognized by UL.
    For more Information
    please call

    1-800-Belden1
    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    31504 010250 250 FT 52.000 LB BLACK C F #4 STR CR 90C 600V
    Notes:
    C = CRATE REEL PUT-UP.
    F = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'

    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Conductors AWG Stranding Conductor Material
    1 4 105x24 TC - Tinned Copper
    Insulation
    Insulation Material:
    Insulation Material Wall Thickness (in.)
    Neoprene .060
    Separator
    Separator Material over Conductor: Y
    Overall Insulation
    Overall Cabling
    Overall Nominal Diameter: 0.399 in.
    Mechanical Characteristics (Overall)
    Non-UL Temperature Rating: 90°C
    Recommended Maximum Baking Cycles: 24 Hours @ 300°F (149°C) ~ 8 Hours @ 325°F (163°C) ~ 15 Minutes @ 450°F (232°C)
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    UL AWM Style: 3048
    UL Rating: 600 V, 90°C
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Plenum/Non-Plenum
    Plenum (Y/N): No
