商品編號: Belden-35618
Belden35618 Hook-up/Lead Awg 18 - UL AWM Style 3173 - XL-DUR® 耐高溫交連 XLPE電子線
DESCRIPTION:
The insulation is cross-linked polyethylene applied in a single extrusion. This construction has excellent thermal aging characteristics, moisture resistance, and solvent resistance. The 356-series of XL-DUR is recommended for class 130(B)as motor leads
PHYSICAL CHARACTERISTICS :
CONDUCTOR :
Number of Conductors: 1
Total Number of Conductors: 1
AWG: 18
Stranding: 16x30
Conductor Material: TC - Tinned Copper
INSULATION :
Insulation Material: XLPE - Cross Linked Polyethylene
Insulation Thickness: .030 in.
OVERALL :
Overall Nominal Diameter: .109 in.
APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE :
APPLICABLE STANDARDS :
UL AWM Style: 3173
UL Rating: 600 V, 125°C
CSA Type: CL1251
CSA Rating: 600 V, 125°C
EU CE Mark (Y/N): Yes
EU RoHS Compliant (Y/N): Yes
EU RoHS Compliance Date (mm/dd/yyyy):: 07/01/2004
PLENUM/NON-PLENUM :
Plenum (Y/N): N
PUT-UPS AND COLORS:
Item Description Put-Up (ft.) Ship Weight (lbs.) Jacket Color Notes
35618 0015000 #18STR XLPE 125C 600VBRN 5000 50 BROWN C I U Z
35618 002500 #18 STR XLPE 125C 600V 500 5 RED F
35618 0025000 #18STR XLPE 125C 600VRED 5000 50 RED C I U Z
35618 0035000 #18STR XLPE 125C 600VORG 5000 50 ORANGE C I U Z
35618 004500 #18 STR XLPE 125C 600V 500 5 YELLOW F
35618 0045000 #18STR XLPE 125C 600VYEL 5000 50 YELLOW C I U Z
35618 005500 #18 STR XLPE 125C 600V 500 5 GREEN, DARK F
35618 0055000 #18STRXLPE 125C 600VDGRN 5000 50 GREEN, DARK C I U Z
35618 0065000 #18STRXLPE 125C 600VLBLU 5000 50 BLUE, LIGHT C I U Z
35618 0075000 #18STR XLPE 125C 600VVIO 5000 50 VIOLET C I U Z
35618 0085000 #18STR XLPE 125C 600VGRY 5000 50 GRAY C I U Z
35618 0095000 #18STR XLPE 125C 600VWHT 5000 50 WHITE C I U Z
35618 010500 #18 STR XLPE 125C 600V 500 5 BLACK F
35618 0105000 #18STR XLPE 125C 600VBLK 5000 50 BLACK C I U Z
35618 0125000 #18STR XLPE 125C 600VPNK 5000 50 PINK C I U Z
35618 013500 #18 STR XLPE 125C 600V 500 5 BLUE, DARK F
35618 0135000 #18STRXLPE 125C 600VDBLU 5000 50 BLUE, DARK C I U Z
C = CRATE REEL PUT-UP.
F = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'
I = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 200'
U = TOPCOAT ADDERS ON STOCK SOLID COLORS. MINIMUM ORDER 10 000' PER COLOR COMBINATION. (SEE TOPCOAT ADDER TABLE)
Z = FINAL PUT-UP LENGTH MAY VARY (+ OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN. |
|
|

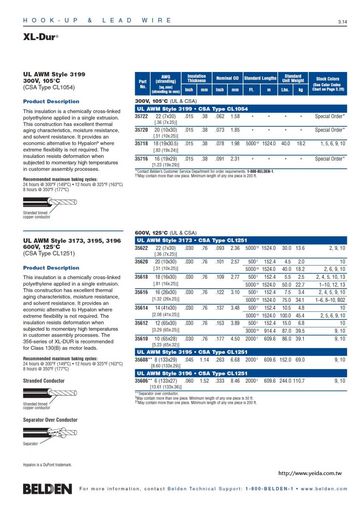

UL AWM Style 3173, 3195, 3196
600V, 125°C
(CSA Type CL1251)
Product Description
This insulation is a chemically cross-linked
polyethylene applied in a single extrusion.
This construction has excellent thermal
aging characteristics, moisture resistance,
and solvent resistance. It provides an
economic alternative to Hypalon where
extreme flexibility is not required. The
insulation resists deformation when
subjected to momentary high temperatures
in customer assembly processes. The
356-series of XL-DUR is recommended
for Class 130(B) as motor leads.
Recommended maximum baking cycles:
24 hours @ 300°F (149°C) • 12 hours @ 325°F (163°C)
8 hours @ 350°F (177°C)
|
