商品編號: Belden-35616
Belden-35616 Hook-up/Lead Awg 16 - UL AWM Style 3173 - XL-DUR® 耐高溫交連 XLPE電子線
DESCRIPTION:
The insulation is cross-linked polyethylene applied in a single extrusion. This construction has excellent thermal aging characteristics, moisture resistance, and solvent resistance. The 356-series of XL-DUR is recommended for class 130(B)as motor leads
PHYSICAL CHARACTERISTICS :
CONDUCTOR :
Number of Conductors: 1
Total Number of Conductors: 1
AWG: 16
Stranding: 26x30
Conductor Material: TC - Tinned Copper
INSULATION :
Insulation Material: XLPE - Cross Linked Polyethylene
Insulation Thickness: .030 in.
OVERALL :
Overall Nominal Diameter: .122 in.
APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE :
APPLICABLE STANDARDS :
UL AWM Style: 3173
UL Rating: 600 V, 125°C
CSA Type: CL1251
CSA Rating: 600 V, 125°C
EU RoHS Compliant (Y/N): Yes
EU RoHS Compliance Date (mm/dd/yyyy):: 07/01/2004
PLENUM/NON-PLENUM :
Plenum (Y/N): N
PUT-UPS AND COLORS:
Item Description Put-Up (ft.) Ship Weight (lbs.) Jacket Color Notes
35616 0015000 #16STR XLPE 125C 600VBRN 5000 75 BROWN C I U Z
35616 002500 #16 STR XLPE 125C 600V 500 7 RED F
35616 0025000 #16 STR XLPE 125C 600V 5000 75 RED C I U Z
35616 0035000 #16STR XLPE 125C 600VORG 5000 75 ORANGE C I U Z
35616 004500 #16 STR XLPE 125C 600V 500 7 YELLOW F
35616 0045000 #16STR XLPE 125C 600VYEL 5000 75 YELLOW C I U Z
35616 005500 #16 STR XLPE 125C 600V 500 7 GREEN, DARK F
35616 0055000 #16STRXLPE 125C 600VDGRN 5000 75 GREEN, DARK C I U Z
35616 0065000 #16STRXLPE 125C 600VLBLU 5000 75 BLUE, LIGHT C I U Z
35616 009500 #16 STR XLPE 125C 600V 500 7 WHITE F
35616 0095000 #16 STR XLPE 125C 600V 5000 75 WHITE C I U Z
35616 010500 #16 STR XLPE 125C 600V 500 7 BLACK F
35616 0105000 #16STR XLPE 125C 600VBLK 5000 75 BLACK C I U Z
C = CRATE REEL PUT-UP.
F = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'
I = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 200'
U = TOPCOAT ADDERS ON STOCK SOLID COLORS. MINIMUM ORDER 10 000' PER COLOR COMBINATION. (SEE TOPCOAT ADDER TABLE)
Z = FINAL PUT-UP LENGTH MAY VARY (+ OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN. |
|
|

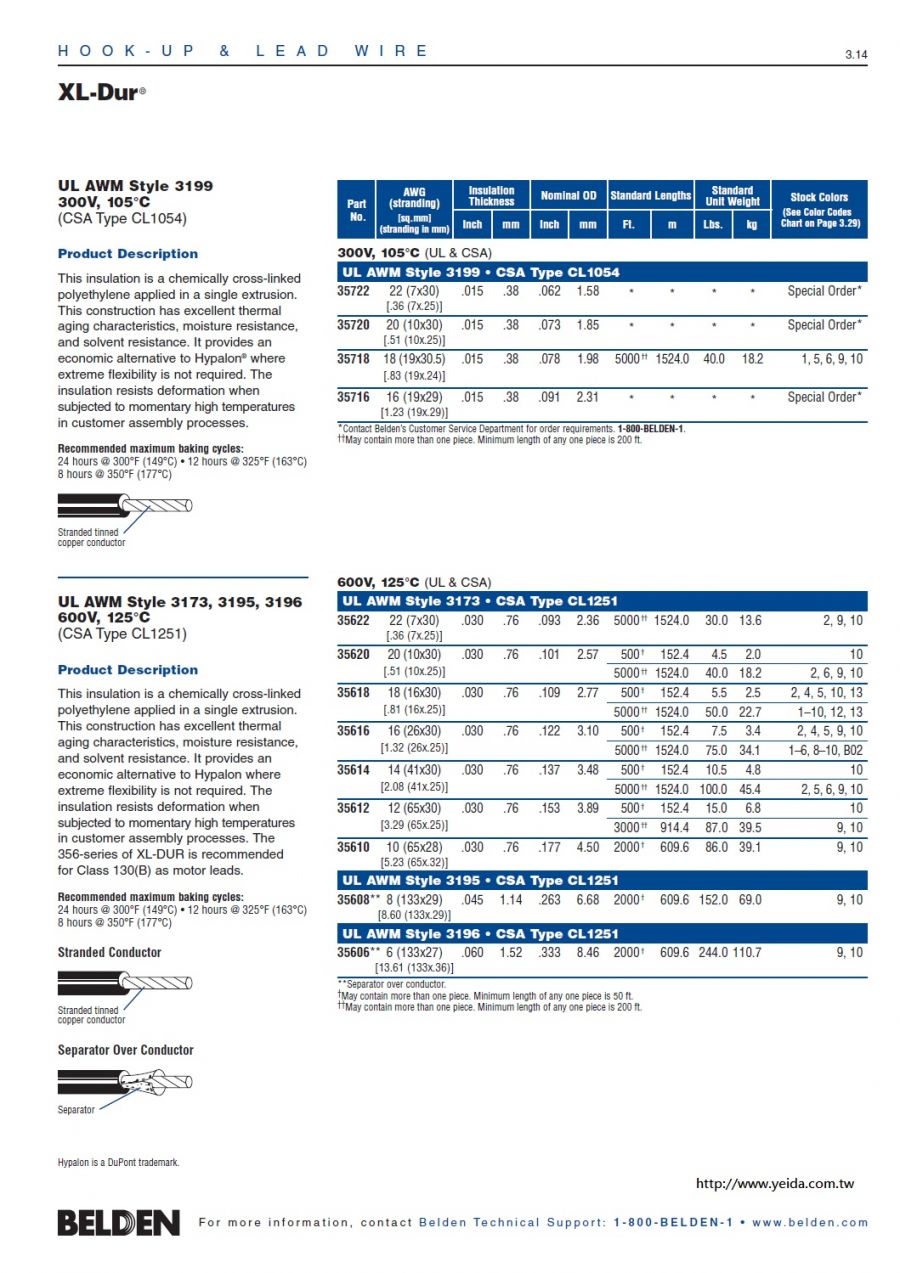

UL AWM Style 3173, 3195, 3196
600V, 125°C
(CSA Type CL1251)
Product Description
This insulation is a chemically cross-linked
polyethylene applied in a single extrusion.
This construction has excellent thermal
aging characteristics, moisture resistance,
and solvent resistance. It provides an
economic alternative to Hypalon where
extreme flexibility is not required. The
insulation resists deformation when
subjected to momentary high temperatures
in customer assembly processes. The
356-series of XL-DUR is recommended
for Class 130(B) as motor leads.
Recommended maximum baking cycles:
24 hours @ 300°F (149°C) • 12 hours @ 325°F (163°C)
8 hours @ 350°F (177°C)
|
