    Belden35612 Hook-up/Lead Awg 12  UL AWM Style 3173 - XL-DUR® 耐高溫交連 XLPE電子線
    看原圖
    454221

    商品編號: Belden-35612

    Belden-35612 Hook-up/Lead Awg 12 - UL AWM Style 3173 - XL-DUR® 耐高溫交連 XLPE電子線

    DESCRIPTION:
    The insulation is cross-linked polyethylene applied in a single extrusion. This construction has excellent thermal aging characteristics, moisture resistance, and solvent resistance. The 356-series of XL-DUR is recommended for class 130(B)as motor leads


    PHYSICAL CHARACTERISTICS :


    CONDUCTOR :
    Number of Conductors: 1
    Total Number of Conductors: 1
    AWG: 12
    Stranding: 65x30
    Conductor Material: TC - Tinned Copper

    INSULATION :
    Insulation Material: XLPE - Cross Linked Polyethylene
    Min. Average Insulation Wall Thickness: .030 in.

    OVERALL :
    Overall Nominal Diameter: .155 in.
    APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE :


    APPLICABLE STANDARDS :
    UL AWM Style: 3173
    UL Rating: 600 V, 125°C
    CSA Type: CL1251
    CSA Rating: 600 V, 125°C
    EU RoHS Compliant (Y/N): Yes
    EU RoHS Compliance Date (mm/dd/yyyy):: 07/01/2004

    PLENUM/NON-PLENUM :
    Plenum (Y/N): N
    PUT-UPS AND COLORS:

    Item Description Put-Up (ft.) Ship Weight (lbs.) Jacket Color Notes
    35612 0093000 #12STR XLPE 125C 600VWHT 3000 87 WHITE C I U
    35612 0103000 #12STR XLPE 125C 600VBLK 3000 87 BLACK C I U
    35612 010500 #12 STR XLPE BLK 500 14 BLACK F


    C = CRATE REEL PUT-UP.
    F = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'
    I = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 200'
    U = TOPCOAT ADDERS ON STOCK SOLID COLORS. MINIMUM ORDER 10 000' PER COLOR COMBINATION. (SEE TOPCOAT ADDER TABLE)

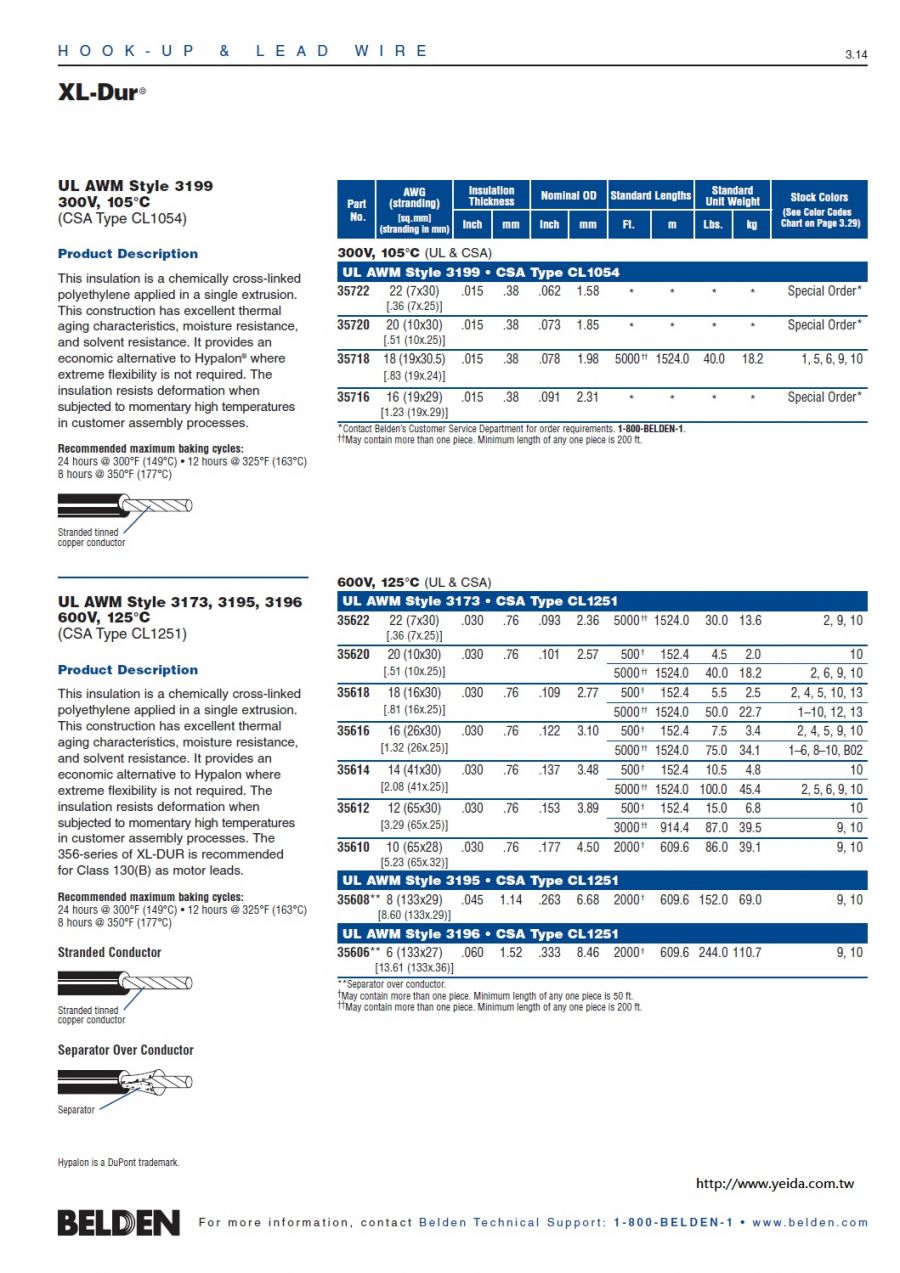

    UL AWM Style 3173, 3195, 3196
    600V, 125°C
    (CSA Type CL1251)


    Product Description
    This insulation is a chemically cross-linked
    polyethylene applied in a single extrusion.
    This construction has excellent thermal
    aging characteristics, moisture resistance,
    and solvent resistance. It provides an
    economic alternative to Hypalon where
    extreme flexibility is not required. The
    insulation resists deformation when
    subjected to momentary high temperatures
    in customer assembly processes. The
    356-series of XL-DUR is recommended
    for Class 130(B) as motor leads.
    Recommended maximum baking cycles:
    24 hours @ 300°F (149°C) • 12 hours @ 325°F (163°C)
    8 hours @ 350°F (177°C)
