商品編號: Belden-35608
Belden-35608 Hook-up/Lead Awg 8 - UL AWM Style 3195 - XL-DUR® 交連PE電子線
DESCRIPTION:
The insulation is cross-linked polyethylene applied in a single extrusion. This construction has excellent thermal aging characteristics, moisture resistance, and solvent resistance. The 356-series of XL-DUR is recommended for class 130(B)as motor leads
PHYSICAL CHARACTERISTICS :
CONDUCTOR :
Number of Conductors: 1
Total Number of Conductors: 1
AWG: 8
Stranding: 133x29
Conductor Material: TC - Tinned Copper
SEPARATOR :
Separator Material over Conductor: Y
INSULATION :
Insulation Material: XLPE - Cross Linked Polyethylene
Insulation Thickness: .045 in.
OVERALL :
Overall Nominal Diameter: .263 in.
APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE :
APPLICABLE STANDARDS :
UL AWM Style: 3195
UL Rating: 600 V, 125°C
CSA Type: CL1251
CSA Rating: 600 V, 125°C
EU RoHS Compliant (Y/N): Yes
EU RoHS Compliance Date (mm/dd/yyyy):: 07/01/2004
PLENUM/NON-PLENUM :
Plenum (Y/N): N
PUT-UPS AND COLORS:
Item Description Put-Up (ft.) Ship Weight (lbs.) Jacket Color Notes
35608 0092000 #8 STR XLPE 125C 600V 2000 152 WHITE C F
35608 0102000 #8 STR XLPE 125C 600V 2000 152 BLACK C F
C = CRATE REEL PUT-UP.
F = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50' |
|
|

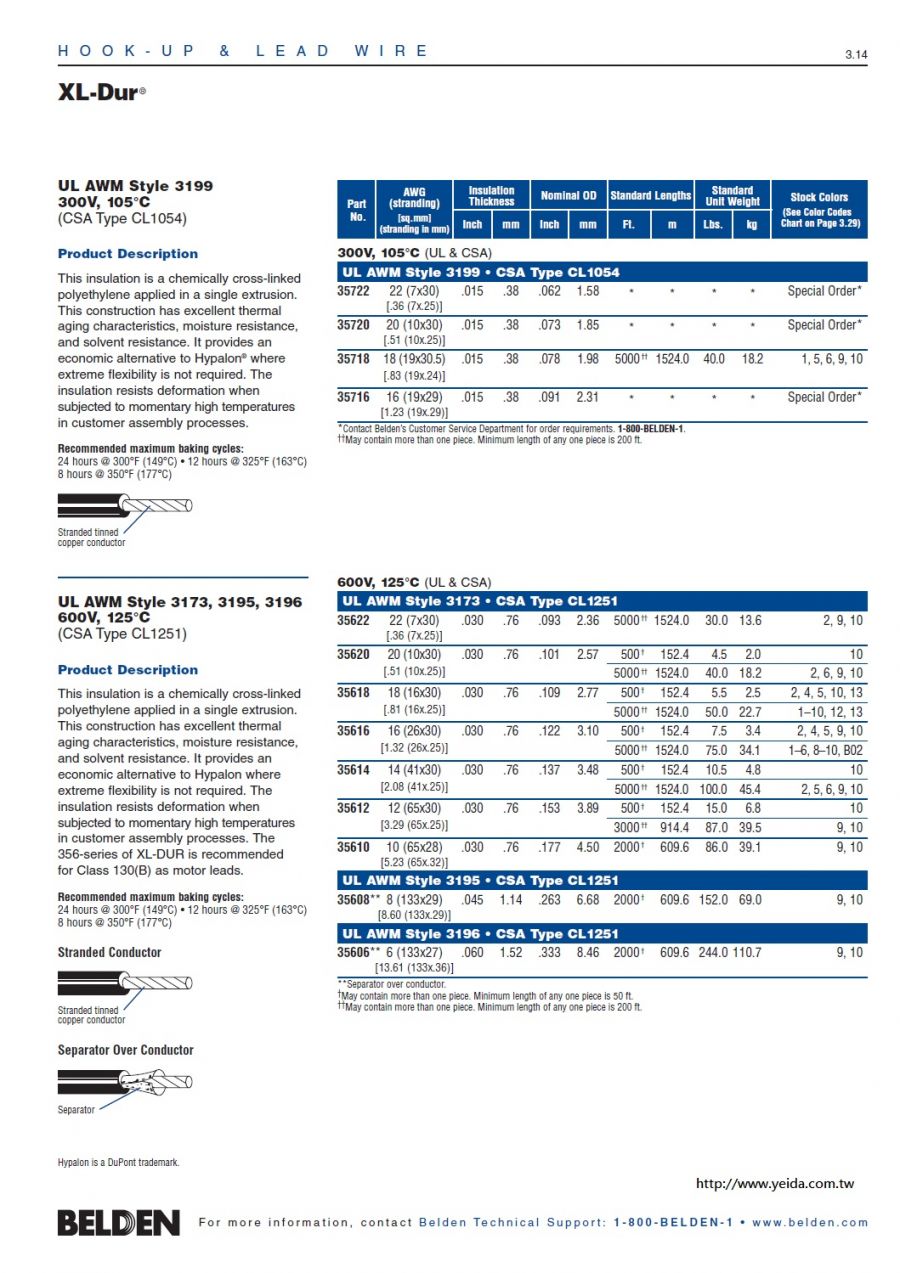

UL AWM Style 3173, 3195, 3196
600V, 125°C
(CSA Type CL1251)
Product Description
This insulation is a chemically cross-linked
polyethylene applied in a single extrusion.
This construction has excellent thermal
aging characteristics, moisture resistance,
and solvent resistance. It provides an
economic alternative to Hypalon where
extreme flexibility is not required. The
insulation resists deformation when
subjected to momentary high temperatures
in customer assembly processes. The
356-series of XL-DUR is recommended
for Class 130(B) as motor leads.
Recommended maximum baking cycles:
24 hours @ 300°F (149°C) • 12 hours @ 325°F (163°C)
8 hours @ 350°F (177°C)
|
