    首頁 > > Belden-X-Dur高溫電子線

    Belden35718 Hook-up/Lead Awg 18 - UL AWM Style 3199 - XL-DUR® 交連PE電子線

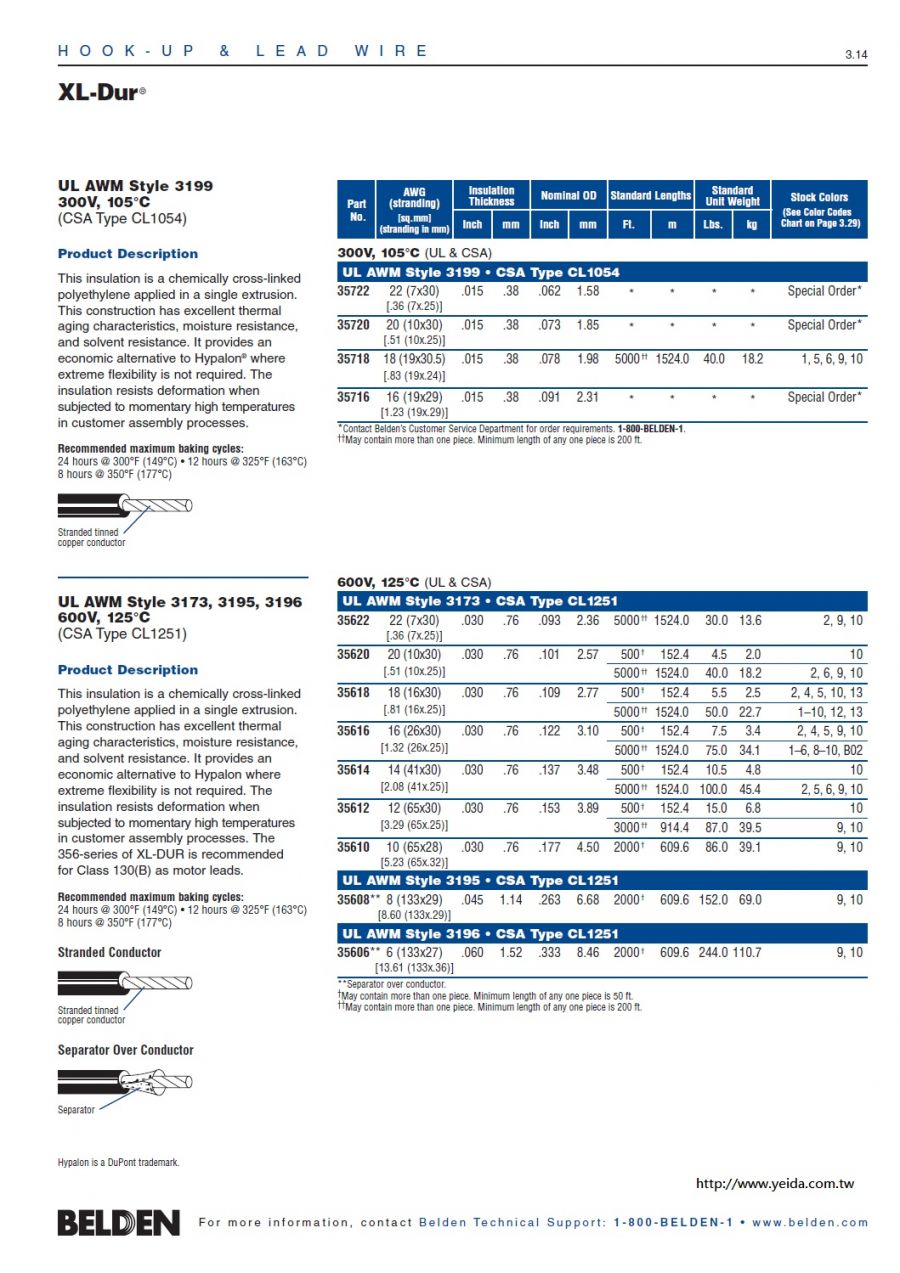

    看原圖
    		454664

    商品編號: Belden-35718

    Belden35718 Hook-up/Lead Awg 18 - UL AWM Style 3199 - XL-DUR® 交連PE電子線

    DESCRIPTION:
    The insulation is cross-linked polyethylene applied in a single extrusion. This construction has excellent thermal aging characteristics, moisture resistance, and solvent resistance.


    PHYSICAL CHARACTERISTICS :


    CONDUCTOR :
    Number of Conductors: 1
    Total Number of Conductors: 1
    AWG: 18
    Stranding: 19x30.5
    Conductor Material: TC - Tinned Copper

    INSULATION :
    Insulation Material: XLPE - Cross Linked Polyethylene
    Insulation Thickness: .015 in.

    OVERALL :
    Overall Nominal Diameter: .078 in.
    APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE :


    APPLICABLE STANDARDS :
    UL AWM Style: 3199
    UL Rating: 300 V RMS, 105°C
    CSA Type: CL1054
    CSA Rating: 300 V RMS, 105°C
    EU RoHS Compliant (Y/N): Yes
    EU RoHS Compliance Date (mm/dd/yyyy):: 07/01/2004

    PLENUM/NON-PLENUM :
    Plenum (Y/N): N
    PUT-UPS AND COLORS:

    Item Description Put-Up (ft.) Ship Weight (lbs.) Jacket Color Notes
    35718 0015000 #18 STR XLPE BRN 5000 40 BROWN I U Z
    35718 0055000 #18 STR XLPE 105C 300V 5000 40 GREEN, DARK C Z
    35718 0095000 #18 STR XLPE 105C 300V 5000 40 WHITE C
    35718 0105000 #18 STR XLPE 105C 300V 5000 40 BLACK I U Z


    C = CRATE REEL PUT-UP.
    I = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 200'
    U = TOPCOAT ADDERS ON STOCK SOLID COLORS. MINIMUM ORDER 10 000' PER COLOR COMBINATION. (SEE TOPCOAT ADDER TABLE)
    Z = FINAL PUT-UP LENGTH MAY VARY (+ OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.






    UL AWM Style 3199
    300V, 105°C
    (CSA Type CL1054)


    Product Description
    This insulation is a chemically cross-linked
    polyethylene applied in a single extrusion.
    This construction has excellent thermal
    aging characteristics, moisture resistance,
    and solvent resistance. It provides an
    economic alternative to Hypalon® where
    extreme flexibility is not required. The
    insulation resists deformation when
    subjected to momentary high temperatures
    in customer assembly processes.
    Recommended maximum baking cycles:
    24 hours @ 300°F (149°C) • 12 hours @ 325°F (163°C)
    8 hours @ 350°F (177°C)
