商品編號: Belden-33310
Belden-33310 AWG10 Hook-up/Lead - UL AWM Style 3212 600 V, 150°C 耐高溫矽橡膠電子線
33310 |
|

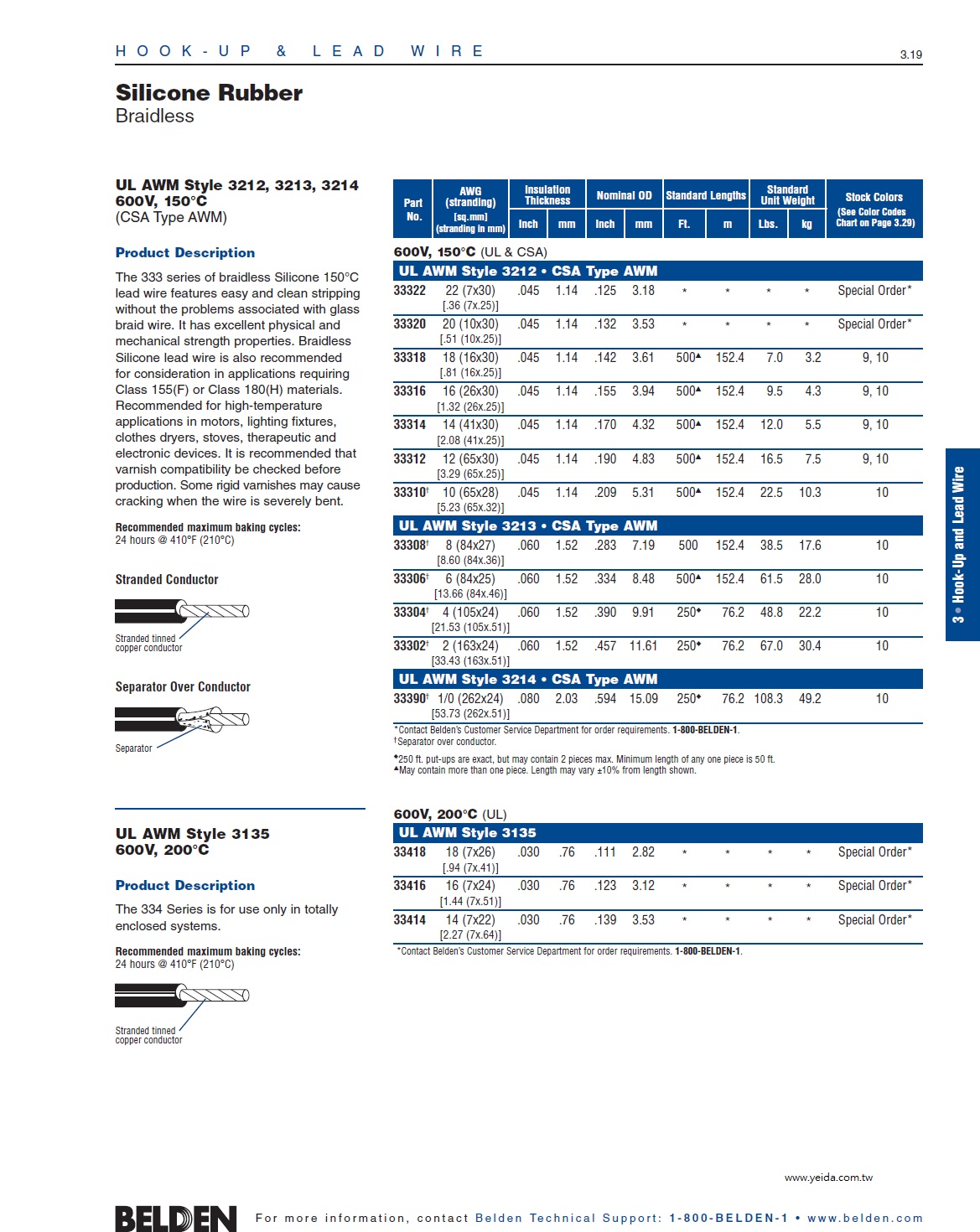

Hook-up/Lead - UL AWM Style 3212
The 333 series of braidless Silicone 150°C lead wire features easy and clean stripping without the problems associated with glass braid wire. It has excellent physical and mechanical strength properties. |
For more Information
please call
1-800-Belden1 |
Item # |
Putup |
Ship Weight |
Color |
Notes |
Item Desc |
33310 010500 |
500 FT |
22.500 LB |
BLACK |
F |
#10 STR SIL 150C 600V |
|
Notes: |
|
F = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'
|
Physical Characteristics (Overall)
Conductor
AWG:
# Conductors |
AWG |
Stranding |
Conductor Material |
1 |
10 |
65x28 |
TC - Tinned Copper |
|
Insulation
Insulation Material:
Wall Thickness (in.) |
.045 |
|
Separator
Separator Material over Conductor: |
Y |
Overall Insulation
Overall Cabling
Overall Nominal Diameter: |
0.209 in. |
Mechanical Characteristics (Overall)
Non-UL Temperature Rating: |
150°C |
Bulk Cable Weight: |
24 lbs/1000 ft. |
Recommended Maximum Baking Cycles: |
24 hours @ 410°F (210°C) |
Applicable Specifications and Agency Compliance (Overall)
Applicable Standards & Environmental Programs
UL AWM Style: |
UL Style 3212 |
EU Directive 2000/53/EC (ELV): |
Yes |
EU Directive 2002/95/EC (RoHS): |
Yes |
EU RoHS Compliance Date (mm/dd/yyyy): |
01/01/2004 |
EU Directive 2002/96/EC (WEEE): |
Yes |
EU Directive 2003/11/EC (BFR): |
Yes |
CA Prop 65 (CJ for Wire & Cable): |
Yes |
MII Order #39 (China RoHS): |
Yes |
Plenum/Non-Plenum
|
|
|
|
|
