    首頁 > > Belden-Silicone-Glass-Braid矽橡膠玻璃絲編織電子線

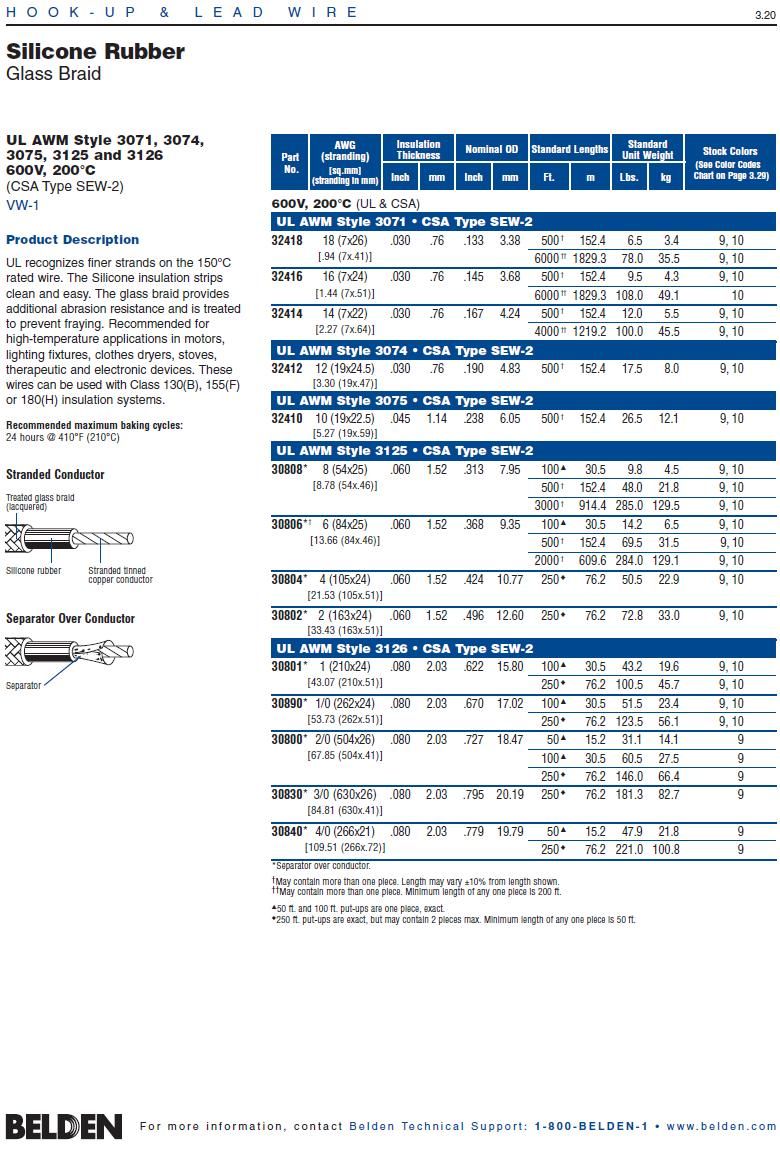

    Belden32416 Awg16 UL AWM Style 3071 600 V, 200°C, VW-1 Hook-up Wire 矽橡膠玻璃絲編織電線
    看原圖
    		453909

    商品編號: Belden-32416

    Belden32416 Awg16  UL AWM Style 3071 600 V, 200°C, VW-1 Hook-up Wire 矽橡膠玻璃絲編織電線

    32416
    		    Hook-up/Lead - UL AWM Style 3071
    The glass braid offers abrasion resistance, is treated to prevent fraying.The Silicone insulation strips easy and clean.Recommended for high-temperature applications in motors, lighting fixtures, clothes dryers, stoves, therapeutic and electronic devices    		 For more Information
    please call

    1-800-Belden1
    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    32416 009500 500 FT 9.500 LB WHITE F #16 SIL GL BRD 200C 600V
    32416 010500 500 FT 9.500 LB BLACK F #16 SIL GL BRD 200C 600V
    32416 0106000 6,000 FT 108.000 LB BLACK C I Z #16 SIL GL BRD 200C 600V
    Notes: 　
    C = CRATE REEL PUT-UP.
    F = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'
    I = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 200'
    Z = FINAL PUT-UP LENGTH MAY VARY (+ OR -) 10% FOR SPOOLS OR REELS AND(+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
    　
    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Conductors AWG Stranding Conductor Material
    1 16 7x24 TC - Tinned Copper
    Insulation
    Insulation Material:
    Insulation Material Wall Thickness (in.)
    Silicone with Lacquered Glass Braid Covering .030
    Overall Insulation
    Overall Cabling
    Overall Nominal Diameter: 0.145 in.
    Mechanical Characteristics (Overall)
    UL Temperature Rating: 200°C (UL AWM Style 3071)
    Bulk Cable Weight: 19 lbs/1000 ft.
    Recommended Maximum Baking Cycles: 24 hours @ 410°F (210°C)
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    UL AWM Style: UL Style 3071 (600 V 200°C)
    UL Rating: 600 V, 200°C, VW-1
    CSA Rating: 600 V, 200°C
    CSA Type: SEW-2
    EU CE Mark: Yes
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Plenum/Non-Plenum
    Plenum (Y/N): No
