Belden32412 Awg12 UL AWM Style 3071 600 V, 200°C, VW-1 Hook-up Wire 矽橡膠玻璃絲編織電線

454039

商品編號: Belden-32412

Belden32412 Awg12 UL AWM Style 3071 600 V, 200°C, VW-1 Hook-up Wire 矽橡膠玻璃絲編織電線

32412

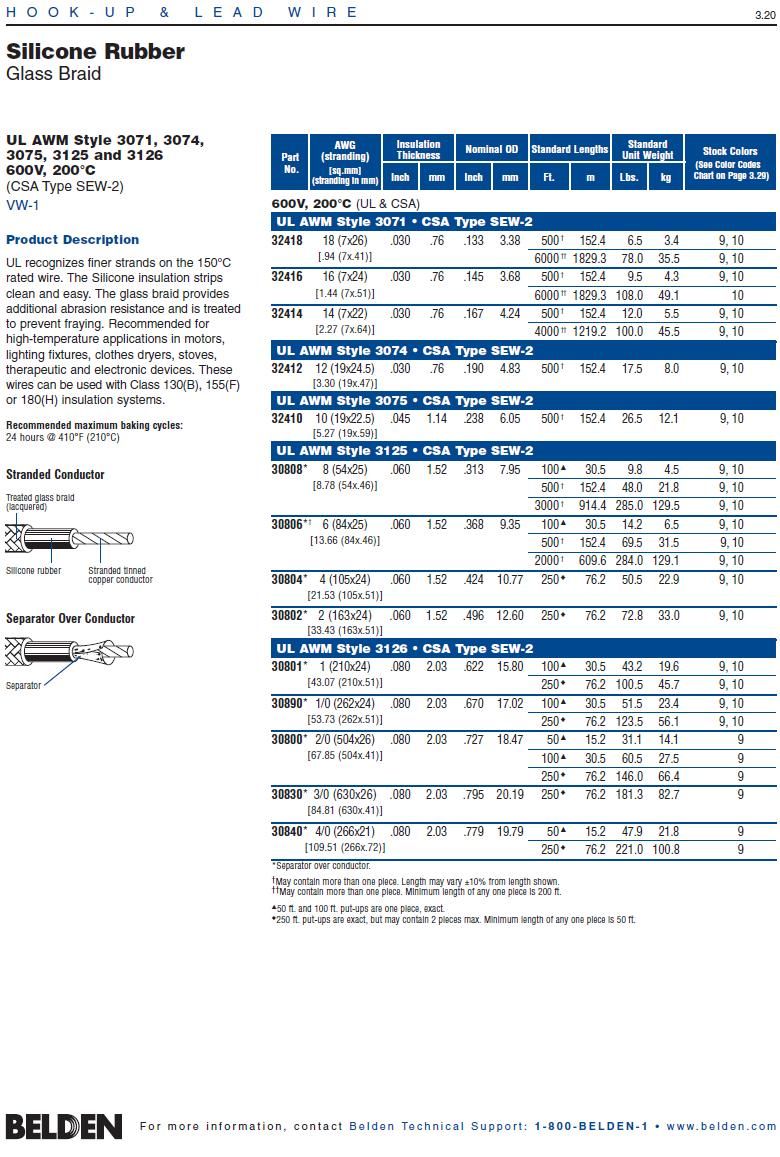

Hook-up/Lead - UL AWM Style 3074
The glass braid offers abrasion resistance, is treated to prevent fraying.The Silicone insulation strips easy and clean.Recommended for high-temperature applications in motors, lighting fixtures, clothes dryers, stoves, therapeutic and electronic devices

For more Information
please call

1-800-Belden1

Put Ups and Colors:

Item #	Putup	Ship Weight	Color	Notes	Item Desc
32412 009500	500 FT	17.500 LB	WHITE	F	#12 SIL GL BRD 200C 600V
32412 010500	500 FT	17.500 LB	BLACK	F	#12 SIL GL BRD 200C 600V

Notes:
F = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'

Physical Characteristics (Overall)

Conductor

AWG:

# Conductors	AWG	Stranding
1	12	19x24.5

Insulation

Insulation Material:

Insulation Material	Wall Thickness (in.)
Silicone with Lacquered Glass Braid Covering	.030

Overall Insulation

Overall Cabling

Overall Nominal Diameter:

0.190 in.

Mechanical Characteristics (Overall)

Non-UL Temperature Rating:

200°C

Bulk Cable Weight:

25 lbs/1000 ft.

Recommended Maximum Baking Cycles:

24 hours @ 410°F (210°C)

Applicable Specifications and Agency Compliance (Overall)

Applicable Standards & Environmental Programs

UL AWM Style:

3074

UL Rating:

600 V, 200°C, VW-1

CSA Rating:

600 V, 200°C

CSA Type:

SEW-2

EU Directive 2000/53/EC (ELV):

Yes

EU Directive 2002/95/EC (RoHS):

Yes

EU RoHS Compliance Date (mm/dd/yyyy):

01/01/2004

EU Directive 2002/96/EC (WEEE):

Yes

EU Directive 2003/11/EC (BFR):

Yes

CA Prop 65 (CJ for Wire & Cable):

Yes

MII Order #39 (China RoHS):

Yes

Plenum/Non-Plenum

Plenum (Y/N):
