DataTwist 4800 UTP Cables provide significant headroom and robust data transmission performance for
today’s most demanding applications. The cables support the industry's most powerful Category 6 networking
solution: Belden IBDN System 4800.

4813

Multi-Conductor - Enhanced Category 6 Nonbonded-Pair Cable 23 AWG nonbonded-pairs solid bare copper conductors, Dual FRPO/FEP Teflon® insulation, spline center member, rip cord, Flamarrest® jacket.

For more Information please call 1-800-Belden1

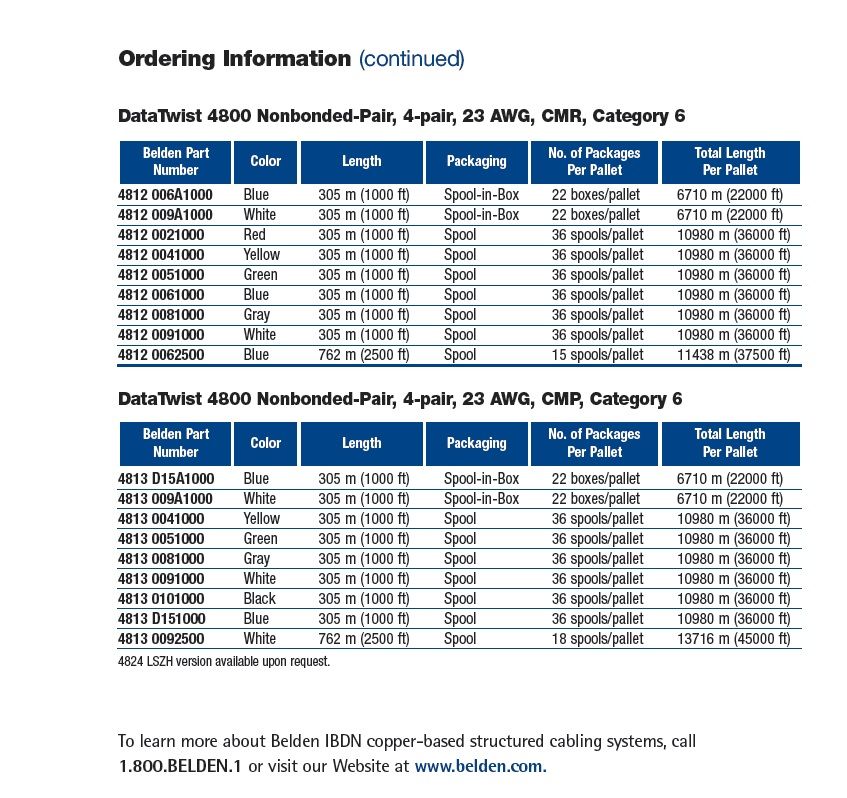

Put Ups and Colors:

Item # Putup Ship Weight Color Notes Item Desc 4813 D15A1000 1,000 FT 40.000 LB BLUE 　 4PR23 CMP (24587915+US) 4813 D151000 1,000 FT 37.000 LB BLUE 　 4PR23 CMP (24587985+US) 4813 0041000 1,000 FT 37.000 LB YELLOW 　 4PR23 CMP (24587785+US) 4813 0051000 1,000 FT 37.000 LB GREEN, DARK 　 4PR23 CMP (25087885+US) 4813 0081000 1,000 FT 37.000 LB GRAY 　 4PR23 CMP (24587185+US) 4813 009A1000 1,000 FT 40.000 LB WHITE 　 4PR23 CMP (24587315) 4813 0091000 1,000 FT 37.000 LB WHITE 　 4PR23 CMP (24587385+US) 4813 0092500 2,500 FT 92.500 LB WHITE 　 4PR23 CMP (24587336) 4813 0101000 1,000 FT 37.000 LB BLACK 　 4PR23 CMP (24587485+US) 4813 0103000 3,000 FT 114.000 LB BLACK 　 4PR23 CMP (24587451+US)

Usage (Overall)

Suitable Applications:

Premise Horizontal Cable, Gigabit Ethernet, 100BaseTX, 100BaseVG ANYLAN, 155ATM, 622ATM, NTSC/PAL Component or Composite Video, AES/EBU Digital Audio, AES51, RS-422, Noisy Environments

Physical Characteristics (Overall)

Conductor

AWG:

# Pairs AWG Stranding Conductor Material 4 23 Solid BC - Bare Copper

Insulation

Insulation Material:

Insulation Material FRPO/FEP - Flame Retardant Polyolefin/Fluorinated Ethylene Propylene

Outer Shield

Outer Shield Material:

Outer Shield Material Unshielded

Outer Jacket

Outer Jacket Material:

Outer Jacket Trade Name Outer Jacket Material Flamarrest® LS PVC - Low Smoke Polyvinyl Chloride

Outer Jacket Ripcord:

No

Overall Cabling

Overall Cabling Fillers:

Spline Center Member

Overall Nominal Diameter:

0.245 in.

Pair

Pair Color Code Chart:

Number Color 1 White/Blue Stripe & Blue 2 White/Orange Stripe & Orange 3 White/Green Stripe & Green 4 White/Brown Stripe & Brown

Mechanical Characteristics (Overall)

Installation Temperature Range:

+5°C To +50°C

Operating Temperature Range:

-20°C To +75°C

Bulk Cable Weight:

34 lbs/1000 ft.

Max. Recommended Pulling Tension:

45 lbs.

Min. Bend Radius (Install)/Minor Axis:

1 in.

Applicable Specifications and Agency Compliance (Overall)

Applicable Standards & Environmental Programs

CEC/C(UL) Specification:

CMP

EU CE Mark:

Yes

EU Directive 2000/53/EC (ELV):

Yes

EU Directive 2002/95/EC (RoHS):

Yes

EU RoHS Compliance Date (mm/dd/yyyy):

07/01/2006

EU Directive 2002/96/EC (WEEE):

Yes

EU Directive 2003/11/EC (BFR):

Yes

CA Prop 65 (CJ for Wire & Cable):

Yes

MII Order #39 (China RoHS):

Yes

Other Specification:

UL Verified to Category 6

Flame Test

UL Flame Test:

NFPA 262

CSA Flame Test:

FT6

Plenum/Non-Plenum

Plenum (Y/N):

Yes

Non-Plenum Number:

4812

Electrical Characteristics (Overall)

Nom. Mutual Capacitance:

Capacitance (pF/ft) 15.5

Maximum Capacitance Unbalance (pF/100 m):

50

Nominal Velocity of Propagation:

VP (%) 70.000

Maximum Delay:

Delay (ns/100 m) 510.000

Max. Delay Skew:

Delay Skew (ns/100 m) 25.000

Maximum Conductor DC Resistance:

DCR @ 20°C (Ohm/100 m) 6.600

Max. Operating Voltage - UL:

Voltage 300 V RMS

Maximum DCR Unbalanced:

DCR Unbalance @ 20°C (%) 3

Electrical Characteristics-Premise (Overall)

Premise Cable Electrical Table 1:

Freq. (MHz) Max. Attenuation (dB/100 m) Min. NEXT (dB) Min. PSNEXT (dB) Min. ACR (dB) Min. PSACR (dB) Min RL (dB) 0.772 1.700 82 80 80.3 78.3 　 1 1.800 80.3 78.3 78.5 76.5 20.000 4 3.400 71.3 69.3 67.9 65.9 23.000 8 4.800 66.8 64.8 62 60 24.500 10 5.300 65.3 63.3 60 58 25.000 16 6.800 62.2 60.2 55.5 53.5 25.000 20 7.600 60.8 58.8 53.2 51.2 25.000 25 8.500 59.3 57.3 50.8 48.8 25.000 31.25 9.600 57.9 55.9 48.3 46.3 24.200 62.5 13.800 53.4 51.4 39.6 37.6 22.900 100 17.800 50.3 48.3 32.5 30.5 22.100 155 22.700 47.4 45.4 24.8 22.8 21.300 200 26.200 45.8 43.8 19.6 17.6 20.900 250 29.700 44.3 42.3 14.6 12.6 20.400 300 33.000 43.1 41.1 10.2 8.2 20.100 350 36.000 42.1 40.1 6.1 4.1 19.800 400 39.000 41.3 39.3 2.3 0.3 19.600 450 41.800 40.5 38.5 -1.3 -3.3 19.400 500 44.500 39.8 37.8 -4.6 -6.6 19.200 550 47.100 39.2 37.2 -7.9 -9.9 19.000 600 49.600 38.6 36.6 -11.0 -13.0 18.900

Premise Cable Electrical Table 2:

Freq. (MHz) Input (Unfitted) Imp. (Ohms) Fitted Impedance Min. ELFEXT (dB) Min. PSELFEXT (dB) 0.772 　 102 ± 15 77 74 1 100 ± 15 100 ± 15 74.8 71.8 4 100 ± 15 100 ± 15 62.8 59.8 8 100 ± 15 100 ± 15 56.7 53.7 10 100 ± 15 100 ± 15 54.8 51.8 16 100 ± 15 100 ± 15 50.7 47.7 20 100 ± 15 100 ± 15 48.8 45.8 25 100 ± 15 100 ± 15 46.8 43.8 31.25 100 ± 15 100 ± 15 44.9 41.9 62.5 100 ± 15 100 ± 15 38.9 35.9 100 100 ± 15 100 ± 15 34.8 31.8 155 100 ± 15 100 ± 15 31 28 200 100 ± 15 100 ± 15 28.8 25.8 250 100 ± 22 100 ± 15 26.8 23.8 300 100 ± 22 100 ± 15 25.3 22.3 350 100 ± 22 100 ± 15 23.9 20.9 400 100 ± 22 100 ± 15 22.8 19.8 450 　 　 21.7 18.7 500 　 　 20.8 17.8 550 　 　 20 17 600 　 　 19.2 16.2

Notes (Overall)

Notes:

Belden IBDN. Jacket sequentially marked at 2 ft./1m intervals. Values above 400 MHz are for Engineering Informaton Only. US Patents 5424491, 5563377,5734126, 6074503, 6596944, 7015398, 7339116. Canadian Patents 2144694, 2460451. Third party verified to TIA/EIA-568-B.2-1, Category 6.

Reference (Overall)

Previous Part Number:

24587785, 24587785+US, 25087885, 25087885+US, 24587185, 24587185+US, 24587385, 24587385+US, 24587336, 24587336+US, 24587315, 24587485, 24587485+US, 24587451+US, 24587985, 24587985+US, 24587915, 24587915+US

The drives that control process functions, and
the switch gear that handle critical power functions,
must perform flawlessly and at peak efficiency.
Current control and communications systems are
very reliable, but with the advance of Ethernet
technology now reaching motor control centers
(MCCs) and switch gear, the Ethernet cabling
component must be especially reliable and robust.
　

Ethernet is finding increased use in industrial
environments since it is a standards-based
technology that utilizes a single cabling platform
with Ethernet connectivity and IP addressing.
This convergence of open, standards-based
Ethernet communications provides for secure,
seamless interoperability between the corporate
office and the plant, plus it enables Internet
connectivity, anytime and anywhere. Industrial
Ethernet communications are also faster than
current network protocol technologies and they
provide greater bandwidth.
　

The advance of Ethernet has prompted an increased
use of intelligent devices equipped with Ethernet
ports. As these devices are often in close proximity
to noise-producing machinery, an electromagnetic
interference (EMI) problem might occur that could
prove detrimental to signal integrity. In MCCs,
drives could produce enough EMI to interfere with
many traditiional Ethernet cables. Moreover, the
need to monitor and control these devices will
demand that the cable enter the MCC. As a result,
these applications require an Ethernet cable with
excellent noise immunity, as well as the ability to
run on or near listed devices.
　

Benefits of Using Belden DataTuff
Category 5e 600V AWM-Rated Cables

Belden provides two Industrial Ethernet Category 5e
cables designed specifically for superior electrical
performance and outstanding noise immunity. The
Belden DataTuff 4-pair shielded cables carry a 600V
AWM rating which makes them approved for use in
listed MCCs and switch gear, and they feature
Belden’s patented Bonded-Pair technology.
　

While these cables have the design and certifications
that make them ideal for MCC and switch gear
applications, they can also be used for more traditional
Ethernet applications. They are not, however,
intended for 600V power delivery.
　

Belden's Bonded-Pair Technology

Belden Bonded-Pair cables have the conductor
insulation of the cable pairs affixed along their
longitudinal axes to ensure that no performance
robbing gaps can occur between the conductor
pairs. Since no gaps can occur, and the conductorto-
conductor spacing, or centricity, is always
uniform, the cable offers excellent and consistently
reliable electrical performance – even when it is
subjected to the rigors of the installation process
and the factory floor environment.
　

Cable Construction Overview

Belden DataTuff Category 5e Industrial Ethernet
cables feature 24 AWG Bonded-Pair solid bare
copper conductors, polyolefin insulation, 24 AWG
stranded tinned copper drain wires and industrialgrade
oil- and sunlight-resistant PVC jackets.

Belden has designated shielded designs to provide
assured performance in highly concentrated
EMI/RFI environments. Part No. 7958A has an
overall Beldfoil® shield; Part No. 7957A has
an overall Beldfoil shield + 70% tinned copper
braid. Belden’s patented Beldfoil shield, with its
aluminum/polyester foil, offers 100 percent
protection against EMI/RFI. When the Beldfoil
shield is used in combination with the 70%
braid shield, the cable offers enhanced structural
integrity and a lower DC resistance.
　

Cable Ratings/Approvals

Part Nos. 7958A and 7957A are Ethernet/IP
compliant and offer the following ratings and
approvals: UL 600V AWM 21047, UL C(UL)
CMR FT4, RoHS and CE.
