Belden3084A DeviceBus® for ODVA DeviceNet™ 300V Class 2 Thin • 22 and 24 AWG Stranded Tinned Copper工業電腦DeviceNet 數據傳輸電纜

468225

商品編號: Belden-3084A 工業電腦DeviceNet 數據傳輸電纜線

Belden, 3084A DeviceBus for ODVA DeviceNet™ 300V Class 2 Thin • 22 and 24 AWG Stranded Tinned Copper
工業電腦DeviceNet 數據傳輸電纜線

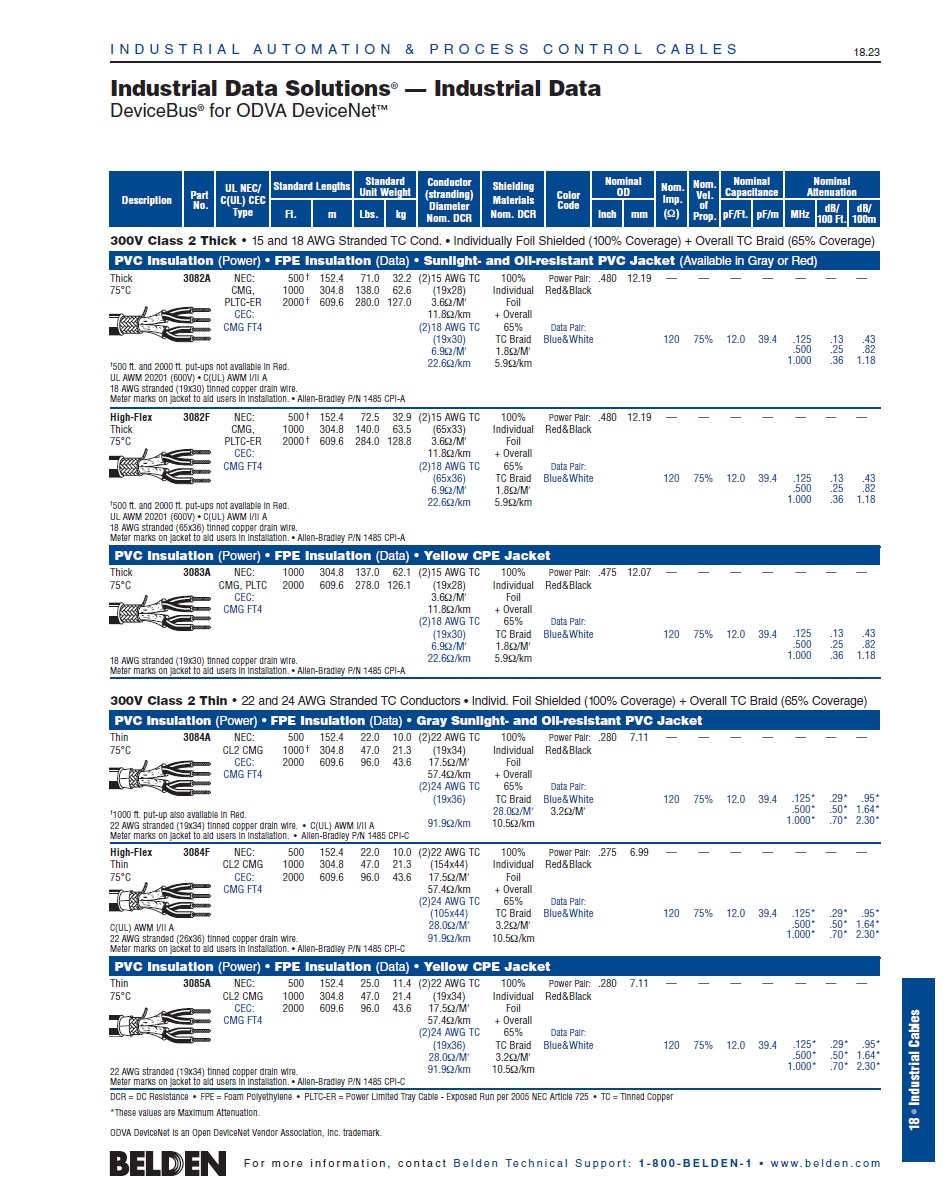

DESCRIPTION:
22 and 24 AWG stranded tinned copper conductors, PVC insulation (power), FPE insulation (Data), individually foil shielded (100% coverage) and an overall tinned copper braid (65% coverage), sunlight/oil-resistant PVC jacket.

PHYSICAL CHARACTERISTICS :

CONDUCTOR :
Number of Pairs: 2
Number of Conductors: 4
AWG:

Number of Pairs AWG Stranding Conductor Material Conductor Diameter (in.)
1 22 19x34 TC - Tinned Copper
1 24 19x36 TC - Tinned Copper

Stranding: 19x34, 19x36
Conductor Material: TC - Tinned Copper

INSULATION :
Insulation Material: PVC - Polyvinyl Chloride, FPE - Foam Polyethylene
Insulation Material (Multi-AWG):

AWG Layer Number Material Trade Name Material Wall Thickness (in.) Diameter (in.)
22 PVC - Polyvinyl Chloride
24 FPE - Foam Polyethylene

Pair Color Code Chart:

Number Color
22 AWG Pair Red & Black
24 AWG Pair Blue & White

INNER SHIELD :
Inner Shield Type: Tape/Tape
Inner Shield Material:

Layer Number/Description Material Trade Name Type Material % Coverage (%) Stranding Diameter (in.) Conductor Material
22 AWG Pair Tape Aluminum Foil-Polyester Tape 100
24 AWG Pair Tape Aluminum Foil-Polyester Tape 100

Inner Shield % Coverage: 100 %
Inner Shield Drain Wire AWG: 22
Inner Shield Drain Wire Stranding: 19x34
Inner Shield Drain Wire Conductor Material: TC - Tinned Copper

OUTER SHIELD :
Outer Shield Type: Braid
Outer Shield Material: TC - Tinned Copper
Outer Shield %Coverage: 65 %

OUTER JACKET :
Outer Jacket Material: PVC - Polyvinyl Chloride

OVERALL NOMINAL DIAMETER :
Overall Nominal Diameter: .280 in.
MECHANICAL CHARACTERISTICS :

Operating Temperature Range: -20°C To +75°C
UL Temperature Rating: 75°C
Bulk Cable Weight: 41 lbs/1000 ft.
Max. Recommended Pulling Tension: 65 lbs.
Min. Bend Radius (Install): 2.75 in.
APPLICABLE SPECIFICATIONS AND AGENCY COMPLIANCE :

APPLICABLE STANDARDS :
NEC/(UL) Specification: CMG, CL2
CEC/C(UL) Specification: CMG
CSA Specification: I/II A
EU CE Mark (Y/N): Yes
EU RoHS Compliant (Y/N): Yes
EU RoHS Compliance Date (mm/dd/yyyy):: 04/01/2005
Other Specification: ODVA Class 2 Thin

FLAME TEST :
UL Flame Test: UL1685 FT4 Loading
CSA Flame Test: FT4

SUITABILITY :
Sunlight Resistance: Yes
Oil Resistance: Yes

PLENUM/NON-PLENUM :
Plenum (Y/N): N
ELECTRICAL CHARACTERISTICS :

Nom. Characteristic Impedance:

Description Nom. Characteristic Impedance (Ω)
24 AWG Pair 120

Nom. Inductance:

Description Nom. Inductance (µH/ft)
22 AWG Pair .221
24 AWG Pair .251

Nom. Capacitance Conductor to Conductor @ 1 KHz: 24 AWG pair 12.0 pF/ft
Nom. Capacitance Conductor to Conductor:

Description Frequency (kHz) Start Frequency (kHz) Stop Frequency (kHz) Nom. Capacitance Conductor to Conductor (pF/ft)
24 AWG Pair 1 12.0

Nominal Velocity of Propagation:

Description Nominal Velocity of Propagation (%)
24 AWG Pair 75

Maximum Delay:

Description Frequency (MHz) Start Frequency (MHz) Stop Frequency (MHz) Maximum Delay (ns/ft)
24 AWG Pair 1.36

Maximum Conductor DC Resistance:

Description Maximum Conductor DC Resistance @ 20 Deg. C (Ω/1000 ft)
22 AWG 17.5
24 AWG 28.0

Nominal Outer Shield DC Resistance @ 20 Deg. C: 3.2 Ω/1000 ft
Max. Attenuation (dB/100 ft.):

Description Frequency (MHz) Start Frequency (MHz) Stop Frequency (MHz) Max. Attenuation (dB/100 ft.)
24 AWG Pair Only .125 .29
.500 .50
1.000 .70

Max. Operating Voltage - UL:

UL Voltage Description
300 V RMS CL2, CMG
300 V RMS C(UL) AWM
600 V RMS UL AWM

Max. Recommended Current: 1.7 Amps per conductor @ 25°C (24 AWG), 4 Amps per conductor @ 24 V per NEC CL2 (Power Pair)
NOTES :

Notes: Flex Life: +/- 90 Degree Flex Test, 2" Diameter, 2 lbs. tension: 2000 Cycles minimum. Meter marks on jacket to aid users in installation. ODVA DevaiceNet is an Open DeviceNet Vendor Association, Inc. trademark.
PUT-UPS AND COLORS:

Item Description Put-Up (ft.) Ship Weight (lbs.) Jacket Color Notes
3084A 0021000 2 #22, 2 #24 SH PVC 1000 47 RED C
3084A T5U1000 2 #22, 2 #24 SHLD PVC 1000 47 GRAY T5U C
3084A T5U2000 2 #22, 2 #24 SHLD PVC 2000 96 GRAY T5U C Z
3084A T5U500 2 #22, 2 #24 SHLD PVC 500 22 GRAY T5U C

C = CRATE REEL PUT-UP.
Z = FINAL PUT-UP LENGTH MAY VARY (+ OR -) 10% FOR SPOOLS OR REELS AND (+ OR -) 5% FOR UNREEL CARTONS FROM LENGTH SHOWN.
