    首頁 > > Belden-MIL-PVC電子線

    Belden8527 Hook-up/Lead Awg 12(65x30) - (Type MW) MIL-W-76C-PVC 1000V, 80°C 軍規 PVC 高壓電子線
    看原圖
    452039

    商品編號: Belden8527

    Belden-8527 Hook-up/Lead Awg 12(65x30) - (Type MW) MIL-W-76C-PVC 1000V, 80°C 軍規 PVC 高壓電子線


    8527    Hook-up/Lead - (Type MW) MIL-W-76C-PVC
    Tinned copper, PVC insulation, medium wall. The extruded PVC insulation is flame and ozone resistant. Inert to most chemicals, oils, and solvents. Covers single cond., PVC insulated hook-up wire for internal wiring of electrical and electronic equipment.
    For more Information
    please call

    1-800-Belden1

    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    8527 002100 100 FT 3.100 LB RED   12 STR PVC RED
    8527 0021000 1,000 FT 25.000 LB RED P 12 STR PVC RED
    8527 003100 100 FT 3.100 LB ORANGE   12 STR PVC ORG
    8527 0031000 1,000 FT 25.000 LB ORANGE P 12 STR PVC ORG
    8527 0041000 1,000 FT 25.000 LB YELLOW P 12 STR PVC YEL
    8527 005100 100 FT 3.100 LB GREEN, DARK   12 STR PVC GRN
    8527 0051000 1,000 FT 25.000 LB GREEN, DARK P 12 STR PVC GRN
    8527 006100 100 FT 3.100 LB BLUE, LIGHT   12 STR PVC LBLU
    8527 0061000 1,000 FT 25.000 LB BLUE, LIGHT P 12 STR PVC LBLU
    8527 0081000 1,000 FT 25.000 LB GRAY P 12 STR PVC GRY
    8527 009100 100 FT 3.100 LB WHITE   12 STR PVC WHT
    8527 0091000 1,000 FT 25.000 LB WHITE P 12 STR PVC WHT
    8527 010100 100 FT 3.100 LB BLACK   12 STR PVC BLK
    8527 0101000 1,000 FT 25.000 LB BLACK C P 12 STR PVC BLK
    Notes:
    C = CRATE REEL PUT-UP.
    P = STRIPE COLORS ON STOCK SOLID COLORS. STRIPING ADDER OF $8.00/M' FOR1 OR 2 STRIPES. 10000' MINIMUM ORDER FOR COLOR COMBINATION.PUT-UP WILL BE SUBJECT TO TWO PIECES (+ OR -) 10% PER SPOOL

    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Conductors AWG Stranding Conductor Material
    1 12 65x30 TC - Tinned Copper
    Insulation
    Insulation Material:
    Insulation Material Wall Thickness (in.)
    PVC - Polyvinyl Chloride .021
    Overall Insulation
    Overall Cabling
    Overall Nominal Diameter: 0.128 in.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    EU CE Mark: Yes
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 10/01/2005
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Military Specification: MIL-W-76C
    MIL Spec Rating: 1000 V, 80°C
    Plenum/Non-Plenum
    Plenum (Y/N): No

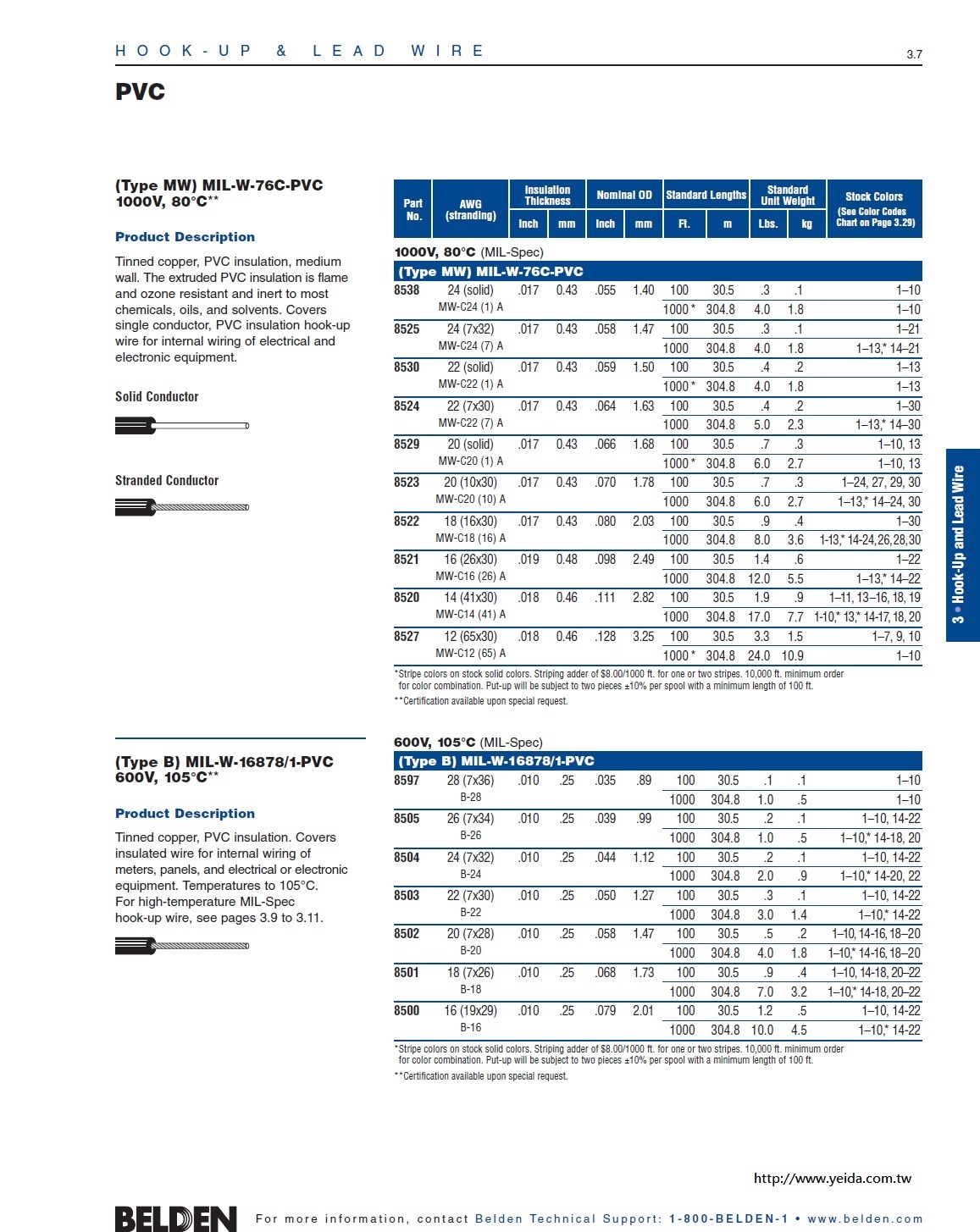

    (Type MW) MIL-W-76C-PVC
    1000V, 80°C**


    Product Description
    Tinned copper, PVC insulation, medium
    wall. The extruded PVC insulation is flame
    and ozone resistant and inert to most
    chemicals, oils, and solvents. Covers
    single conductor, PVC insulation hook-up
    wire for internal wiring of electrical and
    electronic equipment.
