    首頁 > > Belden-MIL-PVC電子線

    Belden8522 Hook-up/Lead Awg 18(16x30) - (Type MW) MIL-W-76C-PVC 1000V, 80°C 軍規 PVC 高壓電子線
    看原圖
    		452041

    商品編號: Belden8522

    Belden-8522 Hook-up/Lead Awg 18(16x30) - (Type MW) MIL-W-76C-PVC 1000V, 80°C 軍規 PVC 高壓電子線

    8522    Hook-up/Lead - (Type MW) MIL-W-76C-PVC
    Tinned copper, PVC insulation, medium wall. The extruded PVC insulation is flame and ozone resistant. Inert to most chemicals, oils, and solvents. Covers single cond., PVC insulated hook-up wire for internal wiring of electrical and electronic equipment.    		 For more Information
    please call

    1-800-Belden1

    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    8522 001100 100 FT 0.800 LB BROWN 　 18 STR PVC BRN
    8522 0011000 1,000 FT 8.000 LB BROWN P 18 STR PVC BRN
    8522 002100 100 FT 0.800 LB RED 　 18 STR PVC RED
    8522 0021000 1,000 FT 8.000 LB RED P 18 STR PVC RED
    8522 003100 100 FT 0.800 LB ORANGE 　 18 STR PVC ORG
    8522 0031000 1,000 FT 8.000 LB ORANGE P 18 STR PVC ORG
    8522 004100 100 FT 0.800 LB YELLOW 　 18 STR PVC YEL
    8522 0041000 1,000 FT 8.000 LB YELLOW P 18 STR PVC YEL
    8522 005100 100 FT 0.800 LB GREEN, DARK 　 18 STR PVC GRN
    8522 0051000 1,000 FT 8.000 LB GREEN, DARK P 18 STR PVC GRN
    8522 006100 100 FT 0.800 LB BLUE, LIGHT 　 18 STR PVC LBLU
    8522 0061000 1,000 FT 8.000 LB BLUE, LIGHT P 18 STR PVC LBLU
    8522 007100 100 FT 0.800 LB VIOLET 　 18 STR PVC VIO
    8522 0071000 1,000 FT 8.000 LB VIOLET P 18 STR PVC VIO
    8522 008100 100 FT 0.800 LB GRAY 　 18 STR PVC GRY
    8522 0081000 1,000 FT 8.000 LB GRAY P 18 STR PVC GRY
    8522 009100 100 FT 0.800 LB WHITE 　 18 STR PVC WHT
    8522 0091000 1,000 FT 8.000 LB WHITE P 18 STR PVC WHT
    8522 010100 100 FT 0.800 LB BLACK 　 18 STR PVC BLK
    8522 0101000 1,000 FT 8.000 LB BLACK P 18 STR PVC BLK
    8522 0111000 1,000 FT 8.000 LB TAN P 18 STR PVC TAN
    8522 0121000 1,000 FT 8.000 LB PINK P 18 STR PVC PNK
    8522 013100 100 FT 0.800 LB BLUE, DARK 　 18 STR PVC DBLU
    8522 0131000 1,000 FT 8.000 LB BLUE, DARK P 18 STR PVC DBLU
    8522 014100 100 FT 0.800 LB WHITE/BLACK A 18 STR PVC WHT/BLK
    8522 0141000 1,000 FT 8.000 LB WHITE/BLACK A 18 STR PVC WHT/BLK
    8522 0151000 1,000 FT 8.000 LB WHITE/RED A 18 STR PVC WHT/RED
    8522 0161000 1,000 FT 8.000 LB WHITE/GREEN A 18 STR PVC WHT/GRN
    8522 018100 100 FT 0.800 LB WHITE/BLUE A 18 STR PVC WHT/BLU
    8522 0181000 1,000 FT 8.000 LB WHITE/BLUE A 18 STR PVC WHT/BLU
    8522 020100 100 FT 0.800 LB WHITE/ORANGE A 18 STR PVC WHT/ORG
    8522 0201000 1,000 FT 8.000 LB WHITE/ORANGE A 18 STR PVC WHT/ORG
    8522 0241000 1,000 FT 8.000 LB WHITE/BLACK/GREEN A 18 STR PVC WHT/BLK/GRN
    8522 0261000 1,000 FT 8.000 LB WHITE/BLACK/BLUE A 18 STR PVC WHT/BLK/BLU
    8522 029100 100 FT 0.800 LB YELLOW/BLACK A 18 STR PVC WHT/BLK/GRY
    8522 0301000 1,000 FT 8.000 LB WHITE/BLACK/VIOLET A 18 STR PVC WHT/BLK/VIO
    Notes: 　
    A = STOCKED STRIPE COLORS.
    P = STRIPE COLORS ON STOCK SOLID COLORS. STRIPING ADDER OF $8.00/M' FOR1 OR 2 STRIPES. 10000' MINIMUM ORDER FOR COLOR COMBINATION.PUT-UP WILL BE SUBJECT TO TWO PIECES (+ OR -) 10% PER SPOOL
    　
    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Conductors AWG Stranding Conductor Material
    1 18 16x30 TC - Tinned Copper
    Insulation
    Insulation Material:
    Insulation Material Wall Thickness (in.)
    PVC - Polyvinyl Chloride .017
    Overall Insulation
    Overall Cabling
    Overall Nominal Diameter: 0.080 in.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    EU CE Mark: Yes
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 10/01/2005
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Military Specification: MIL-W-76C
    MIL Spec Rating: 1000 V, 80°C
    Plenum/Non-Plenum
    Plenum (Y/N): No

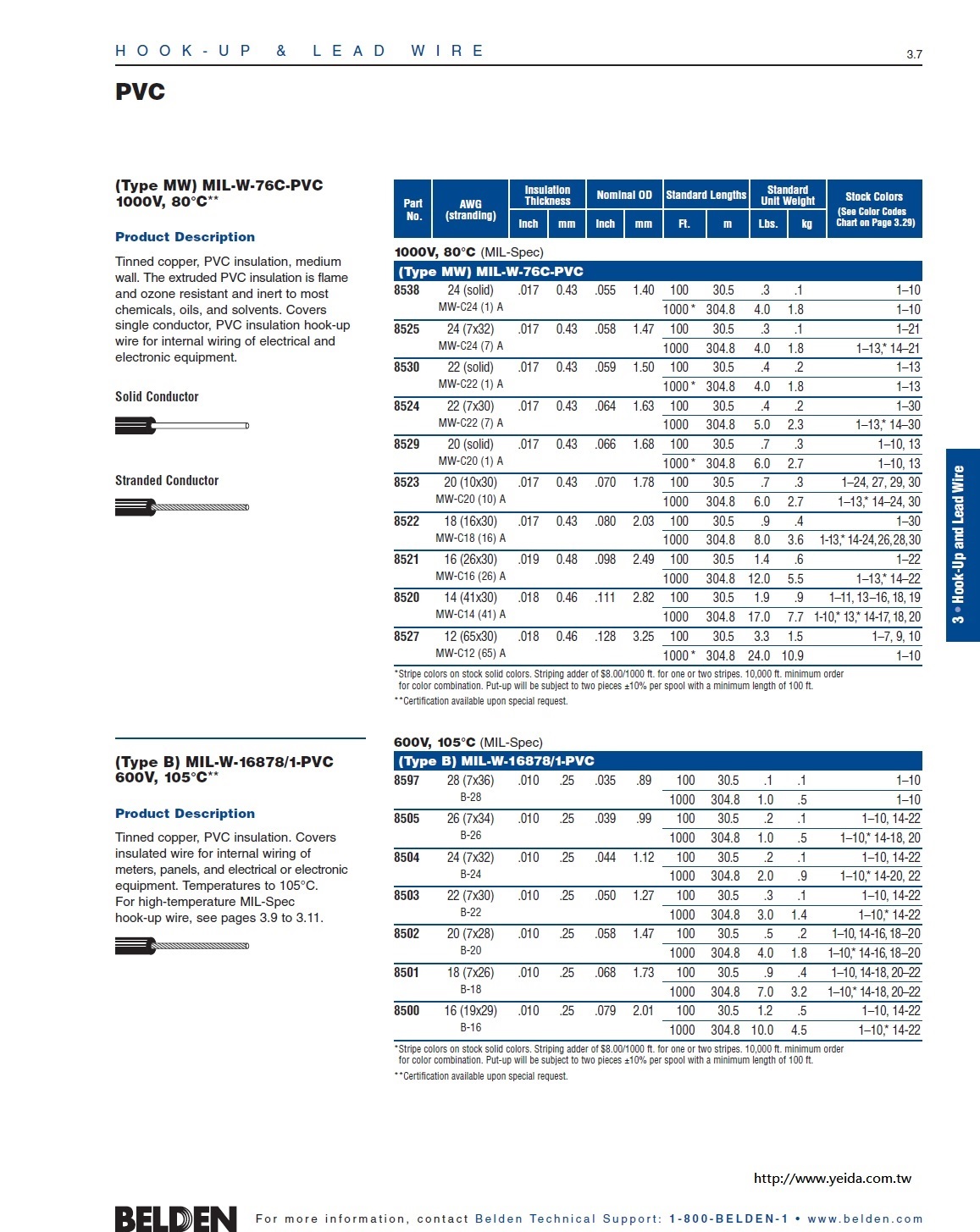

    (Type MW) MIL-W-76C-PVC
    1000V, 80°C**


    Product Description
    Tinned copper, PVC insulation, medium
    wall. The extruded PVC insulation is flame
    and ozone resistant and inert to most
    chemicals, oils, and solvents. Covers
    single conductor, PVC insulation hook-up
    wire for internal wiring of electrical and
    electronic equipment.
