    首頁 > > Belden-MIL-PVC電子線

    Belden8520 Hook-up/Lead Awg 14(41x30) - (Type MW) MIL-W-76C-PVC 1000V, 80°C 軍規 PVC 耐高壓電子線
    看原圖
    		452042

    商品編號: Belden8520

    Belden-8520 Hook-up/Lead Awg 14(41x30) - (Type MW) MIL-W-76C-PVC 1000V, 80°C 軍規 PVC 耐高壓電子線

    8520    Hook-up/Lead - (Type MW) MIL-W-76C-PVC
    Tinned copper, PVC insulation, medium wall. The extruded PVC insulation is flame and ozone resistant. Inert to most chemicals, oils, and solvents. Covers single cond., PVC insulated hook-up wire for internal wiring of electrical and electronic equipment.    		 For more Information
    please call

    1-800-Belden1

    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    8520 001100 100 FT 1.700 LB BROWN 　 14 STR PVC BRN
    8520 0011000 1,000 FT 17.000 LB BROWN P 14 STR PVC BRN
    8520 002100 100 FT 1.700 LB RED 　 14 STR PVC RED
    8520 0021000 1,000 FT 17.000 LB RED P 14 STR PVC RED
    8520 003100 100 FT 1.700 LB ORANGE 　 14 STR PVC ORG
    8520 0031000 1,000 FT 17.000 LB ORANGE P 14 STR PVC ORG
    8520 005100 100 FT 1.700 LB GREEN, DARK 　 14 STR PVC GRN
    8520 0051000 1,000 FT 17.000 LB GREEN, DARK P 14 STR PVC GRN
    8520 006100 100 FT 1.700 LB BLUE, LIGHT 　 14 STR PVC LBLU
    8520 0061000 1,000 FT 17.000 LB BLUE, LIGHT P 14 STR PVC LBLU
    8520 0081000 1,000 FT 17.000 LB GRAY P 14 STR PVC GRY
    8520 009100 100 FT 1.700 LB WHITE 　 14 STR PVC WHT
    8520 0091000 1,000 FT 17.000 LB WHITE P 14 STR PVC WHT
    8520 010100 100 FT 1.700 LB BLACK 　 14 STR PVC BLK
    8520 0101000 1,000 FT 17.000 LB BLACK P 14 STR PVC BLK
    8520 013100 100 FT 1.700 LB BLUE, DARK 　 14 STR PVC DBLU
    8520 0181000 1,000 FT 18.000 LB WHITE/BLUE A 14 STR PVC WHT/BLU
    Notes: 　
    A = STOCKED STRIPE COLORS.
    P = STRIPE COLORS ON STOCK SOLID COLORS. STRIPING ADDER OF $8.00/M' FOR1 OR 2 STRIPES. 10000' MINIMUM ORDER FOR COLOR COMBINATION.PUT-UP WILL BE SUBJECT TO TWO PIECES (+ OR -) 10% PER SPOOL
    　
    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Conductors AWG Stranding Conductor Material
    1 14 41x30 TC - Tinned Copper
    Insulation
    Insulation Material:
    Insulation Material Wall Thickness (in.)
    PVC - Polyvinyl Chloride .018
    Overall Insulation
    Overall Cabling
    Overall Nominal Diameter: 0.111 in.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    EU CE Mark: Yes
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 10/01/2005
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Military Specification: MIL-W-76C
    MIL Spec Rating: 1000 V, 80°C
    Plenum/Non-Plenum
    Plenum (Y/N): No

    　

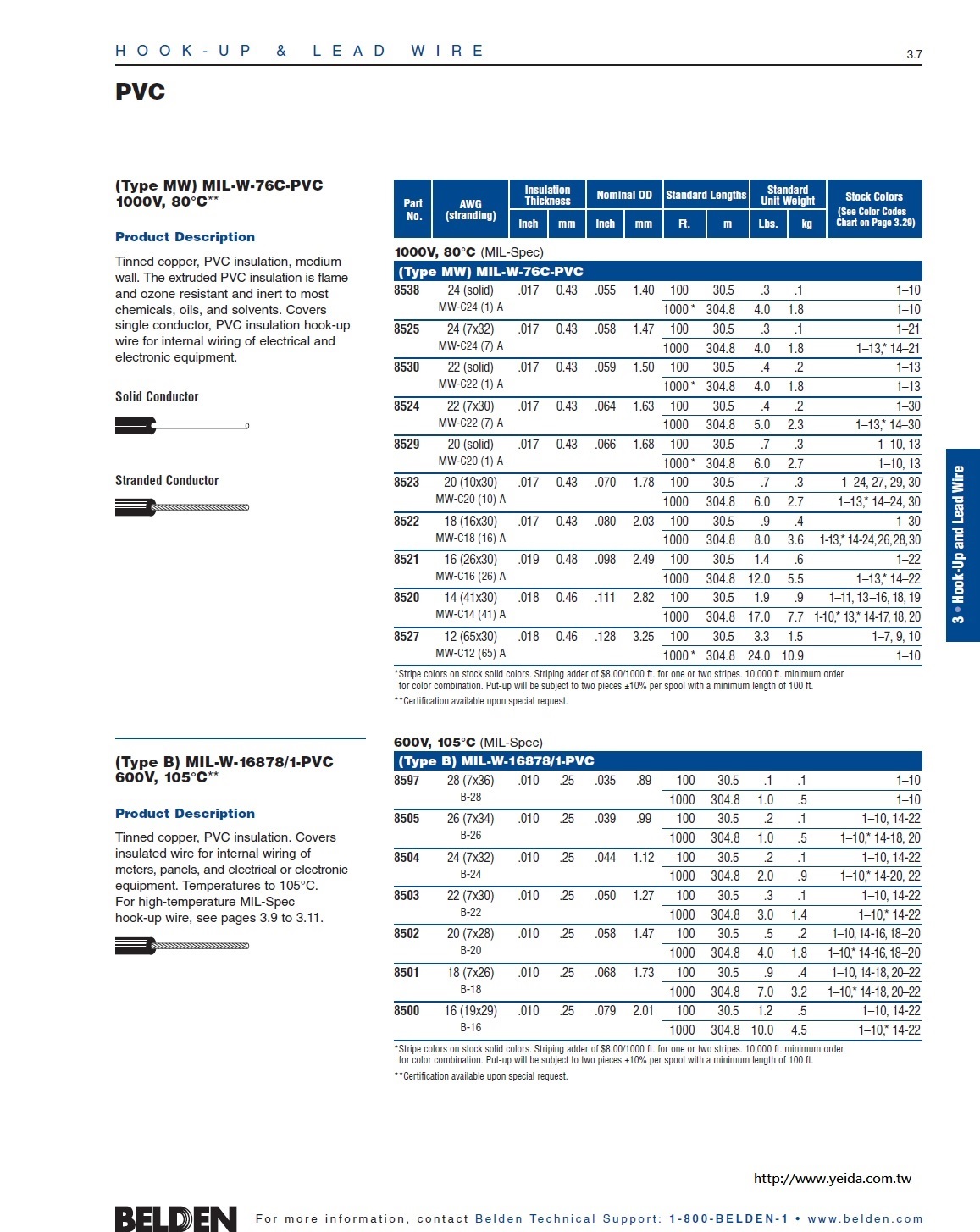

    (Type MW) MIL-W-76C-PVC
    1000V, 80°C**


    Product Description
    Tinned copper, PVC insulation, medium
    wall. The extruded PVC insulation is flame
    and ozone resistant and inert to most
    chemicals, oils, and solvents. Covers
    single conductor, PVC insulation hook-up
    wire for internal wiring of electrical and
    electronic equipment.
