    首頁 > > Belden-MIL-PVC電子線

    Belden8502 Hook-up/Lead Awg 20(7x28) - (Type B) MIL-W-16878/1-PVC 600V, 105°C 軍規 PVC 電子線
    看原圖
    		452053

    商品編號: Belden8502

    Belden-8502 Hook-up/Lead Awg 20(7x28) - (Type B) MIL-W-16878/1-PVC 600V, 105°C 軍規 PVC 電子線

    8502    Hook-up/Lead - (Type B) MIL-W-16878/1-PVC
    Tinned copper conductor, PVC insulation. Covers insulated wire for internal wiring of meters, panels, and electrical or electronic equipment. Temperatures to 105ºC.    		 For more Information
    please call

    1-800-Belden1

    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    8502 001100 100 FT 0.500 LB BROWN 　 20 STR PVC BRN
    8502 0011000 1,000 FT 5.000 LB BROWN P 20 STR PVC BRN
    8502 002100 100 FT 0.500 LB RED 　 20 STR PVC RED
    8502 0021000 1,000 FT 5.000 LB RED P 20 STR PVC RED
    8502 003100 100 FT 0.500 LB ORANGE 　 20 STR PVC ORG
    8502 0031000 1,000 FT 5.000 LB ORANGE P 20 STR PVC ORG
    8502 004100 100 FT 0.500 LB YELLOW 　 20 STR PVC YEL
    8502 0041000 1,000 FT 5.000 LB YELLOW P 20 STR PVC YEL
    8502 005100 100 FT 0.500 LB GREEN, DARK 　 20 STR PVC GRN
    8502 0051000 1,000 FT 5.000 LB GREEN, DARK P 20 STR PVC GRN
    8502 006100 100 FT 0.500 LB BLUE, LIGHT 　 20 STR PVC LBLU
    8502 0061000 1,000 FT 5.000 LB BLUE, LIGHT P 20 STR PVC LT.BLU
    8502 007100 100 FT 0.500 LB VIOLET 　 20 STR PVC VIO
    8502 0071000 1,000 FT 5.000 LB VIOLET P 20 STR PVC VIO
    8502 008100 100 FT 0.500 LB GRAY 　 20 STR PVC GRY
    8502 0081000 1,000 FT 5.000 LB GRAY P 20 STR PVC GRY
    8502 009100 100 FT 0.500 LB WHITE 　 20 STR PVC WHT
    8502 0091000 1,000 FT 5.000 LB WHITE P 20 STR PVC WHT
    8502 010100 100 FT 0.500 LB BLACK 　 20 STR PVC BLK
    8502 0101000 1,000 FT 5.000 LB BLACK P 20 STR PVC BLK
    8502 0151000 1,000 FT 5.000 LB WHITE/RED A 20 STR PVC WHT/RED
    8502 0181000 1,000 FT 5.000 LB WHITE/BLUE A 20 STR PVC WHT/BLU
    Notes: 　
    A = STOCKED STRIPE COLORS.
    P = STRIPE COLORS ON STOCK SOLID COLORS. STRIPING ADDER OF $8.00/M' FOR1 OR 2 STRIPES. 10000' MINIMUM ORDER FOR COLOR COMBINATION.PUT-UP WILL BE SUBJECT TO TWO PIECES (+ OR -) 10% PER SPOOL
    　
    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Conductors AWG Stranding Conductor Material
    1 20 7x28 TC - Tinned Copper
    Insulation
    Insulation Material:
    Insulation Material Wall Thickness (in.)
    PVC - Polyvinyl Chloride .010
    Overall Insulation
    Overall Cabling
    Overall Nominal Diameter: 0.058 in.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    EU CE Mark: Yes
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2006
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Military Specification: MIL-W-16878/1
    MIL Spec Rating: 600 V, 105°C
    Plenum/Non-Plenum
    Plenum (Y/N): No

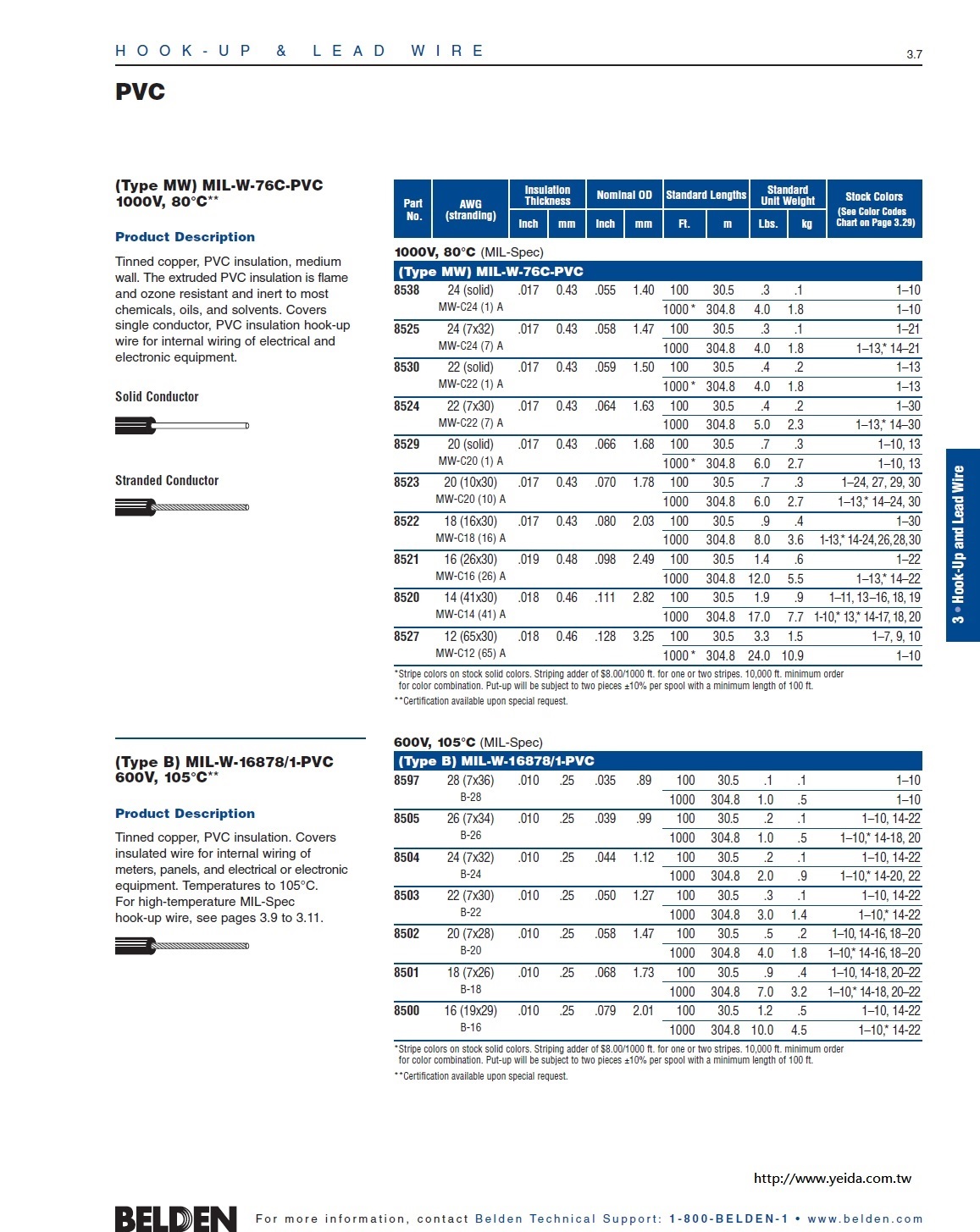

    (Type B) MIL-W-16878/1-PVC
    600V, 105°C


    Product Description
    Tinned copper, PVC insulation. Covers
    insulated wire for internal wiring of
    meters, panels, and electrical or electronic
    equipment. Temperatures to 105°C.
    For high-temperature MIL-Spec
    hook-up wire, see pages 3.9 to 3.11.
