    Belden8501 Hook-up/Lead Awg 18(7x26) - (Type B) MIL-W-16878/1-PVC 600V, 105°C 軍規 PVC 電子線
    看原圖
    		452054

    商品編號: Belden8501

    Belden-8501 Hook-up/Lead Awg 18(7x26) - (Type B) MIL-W-16878/1-PVC 600V, 105°C 軍規 PVC 電子線

    8501    Hook-up/Lead - (Type B) MIL-W-16878/1-PVC
    Tinned copper conductor, PVC insulation. Covers insulated wire for internal wiring of meters, panels, and electrical or electronic equipment. Temperatures to 105ºC.    		 For more Information
    please call

    1-800-Belden1

    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    8501 001100 100 FT 0.700 LB BROWN 　 18 STR PVC BRN
    8501 0011000 1,000 FT 7.000 LB BROWN P 18 STR PVC BRN
    8501 002100 100 FT 0.700 LB RED 　 18 STR PVC RED
    8501 0021000 1,000 FT 7.000 LB RED P 18 STR PVC RED
    8501 003100 100 FT 0.700 LB ORANGE 　 18 STR PVC ORG
    8501 0031000 1,000 FT 7.000 LB ORANGE P 18 STR PVC ORG
    8501 004100 100 FT 0.700 LB YELLOW 　 18 STR PVC YEL
    8501 0041000 1,000 FT 7.000 LB YELLOW P 18 STR PVC YEL
    8501 005100 100 FT 0.700 LB GREEN, DARK 　 18 STR PVC GRN
    8501 0051000 1,000 FT 7.000 LB GREEN, DARK P 18 STR PVC GRN
    8501 006100 100 FT 0.700 LB BLUE, LIGHT 　 18 STR PVC LBLU
    8501 0061000 1,000 FT 7.000 LB BLUE, LIGHT P 18 STR PVC LBLU
    8501 0071000 1,000 FT 7.000 LB VIOLET P 18 STR PVC VIO
    8501 0081000 1,000 FT 7.000 LB GRAY P 18 STR PVC GRY
    8501 009100 100 FT 0.700 LB WHITE 　 18 STR PVC WHT
    8501 0091000 1,000 FT 7.000 LB WHITE P 18 STR PVC WHT
    8501 010100 100 FT 0.700 LB BLACK 　 18 STR PVC BLK
    8501 0101000 1,000 FT 7.000 LB BLACK P 18 STR PVC BLK
    8501 0141000 1,000 FT 7.000 LB WHITE/BLACK A 18 STR PVC WHT/BLK
    8501 0151000 1,000 FT 7.000 LB WHITE/RED A 18 STR PVC WHT/RED
    8501 0181000 1,000 FT 7.000 LB WHITE/BLUE A 18 STR PVC WHT/BLU
    8501 0201000 1,000 FT 7.000 LB WHITE/ORANGE A 18 STR PVC WHT/ORG
    8501 0211000 1,000 FT 7.000 LB WHITE/GRAY A 18 STR PVC WHT/GRY
    Notes: 　
    A = STOCKED STRIPE COLORS.
    P = STRIPE COLORS ON STOCK SOLID COLORS. STRIPING ADDER OF $8.00/M' FOR1 OR 2 STRIPES. 10000' MINIMUM ORDER FOR COLOR COMBINATION.PUT-UP WILL BE SUBJECT TO TWO PIECES (+ OR -) 10% PER SPOOL
    　
    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Conductors AWG Stranding Conductor Material
    1 18 7x26 TC - Tinned Copper
    Insulation
    Insulation Material:
    Insulation Material Wall Thickness (in.)
    PVC - Polyvinyl Chloride .010
    Overall Insulation
    Overall Cabling
    Overall Nominal Diameter: 0.068 in.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    EU CE Mark: Yes
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2006
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Military Specification: MIL-W-16878/1
    MIL Spec Rating: 600 V, 105°C
    Plenum/Non-Plenum
    Plenum (Y/N): No

    　

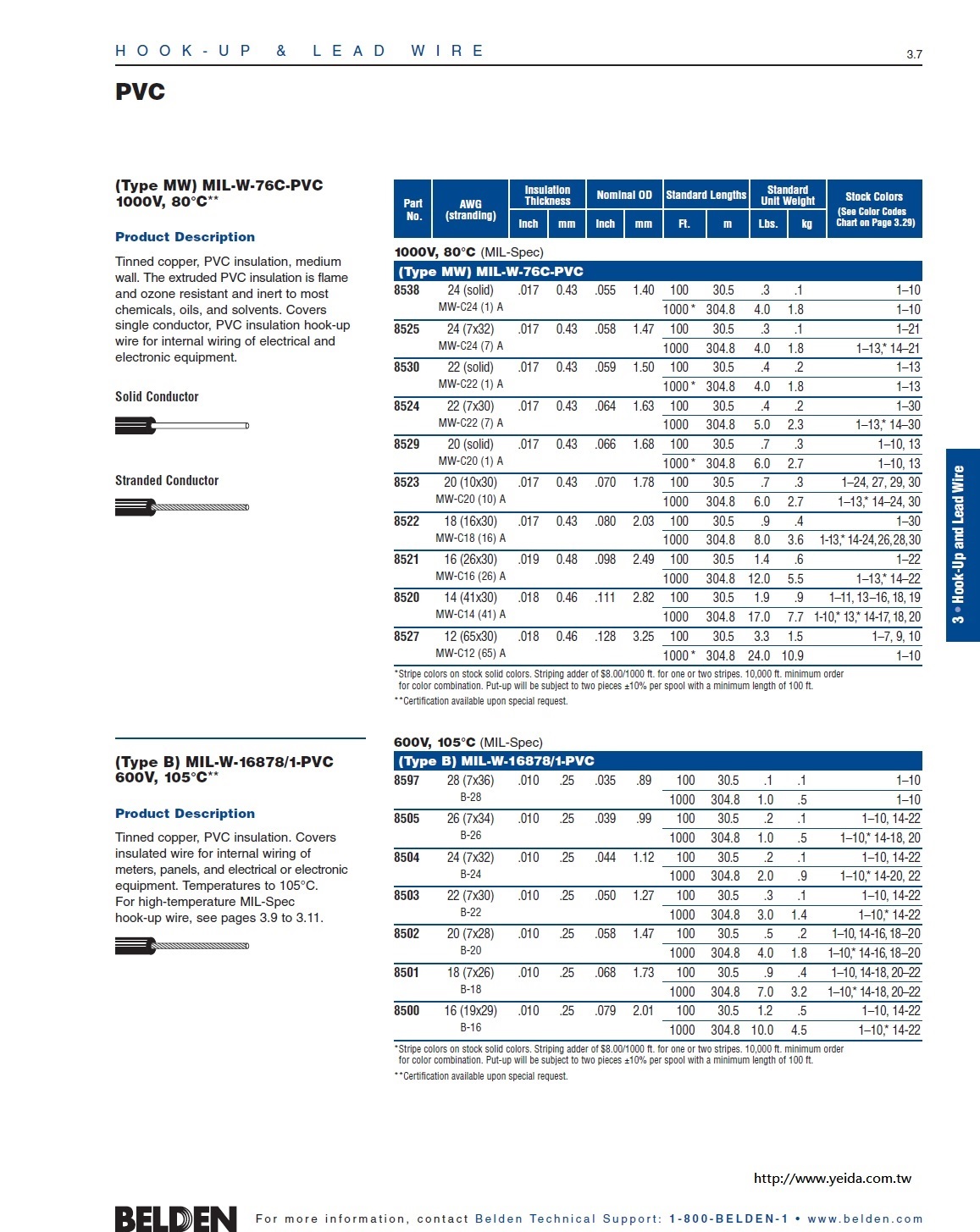

    (Type B) MIL-W-16878/1-PVC
    600V, 105°C


    Product Description
    Tinned copper, PVC insulation. Covers
    insulated wire for internal wiring of
    meters, panels, and electrical or electronic
    equipment. Temperatures to 105°C.
    For high-temperature MIL-Spec
    hook-up wire, see pages 3.9 to 3.11.
