    首頁 > > Belden-MIL-PVC電子線

    Belden8500 Hook-up/Lead Awg 16(19x29) - (Type B) MIL-W-16878/1-PVC 600V, 105°C 軍規 PVC 電子線
    看原圖
    		452055

    商品編號: Belden8500

    Belden-8500 Hook-up/Lead Awg 16(19x29) - (Type B) MIL-W-16878/1-PVC 600V, 105°C 軍規 PVC 電子線

    8500    Hook-up/Lead - (Type B) MIL-W-16878/1-PVC
    Tinned copper conductor, PVC insulation. Covers insulated wire for internal wiring of meters, panels, and electrical or electronic equipment. Temperatures to 105ºC.    		 For more Information
    please call

    1-800-Belden1

    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    8500 0011000 1,000 FT 10.000 LB BROWN P 16 STR PVC BRN
    8500 002100 100 FT 1.100 LB RED 　 16 STR PVC RED
    8500 0021000 1,000 FT 10.000 LB RED P 16 STR PVC RED
    8500 0031000 1,000 FT 10.000 LB ORANGE P 16 STR PVC ORG
    8500 004100 100 FT 1.100 LB YELLOW 　 16 STR PVC YEL
    8500 0041000 1,000 FT 10.000 LB YELLOW P 16 STR PVC YEL
    8500 005100 100 FT 1.100 LB GREEN, DARK 　 16 STR PVC GRN
    8500 0051000 1,000 FT 10.000 LB GREEN, DARK P 16 STR PVC GRN
    8500 006100 100 FT 1.100 LB BLUE, LIGHT 　 16 STR PVC LBLU
    8500 0061000 1,000 FT 10.000 LB BLUE, LIGHT P 16 STR PVC LBLU
    8500 0071000 1,000 FT 10.000 LB VIOLET P 16 STR PVC VIO
    8500 0081000 1,000 FT 10.000 LB GRAY P 16 STR PVC GRY
    8500 009100 100 FT 1.100 LB WHITE 　 16 STR PVC WHT
    8500 0091000 1,000 FT 10.000 LB WHITE P 16 STR PVC WHT
    8500 010100 100 FT 1.100 LB BLACK 　 16 STR PVC BLK
    8500 0101000 1,000 FT 10.000 LB BLACK P 16 STR PVC BLK
    8500 0141000 1,000 FT 10.000 LB WHITE/BLACK A 16 STR PVC WHT/BLK
    8500 0151000 1,000 FT 10.000 LB WHITE/RED A 16 STR PVC WHT/RED
    8500 0161000 1,000 FT 10.000 LB WHITE/GREEN A 16 STR PVC WHT/GRN
    8500 0171000 1,000 FT 10.000 LB WHITE/YELLOW A 16 STR PVC WHT/YEL
    8500 0181000 1,000 FT 10.000 LB WHITE/BLUE A 16 STR PVC WHT/BLU
    8500 0191000 1,000 FT 10.000 LB WHITE/BROWN A 16 STR PVC WHT/BRN
    8500 0201000 1,000 FT 10.000 LB WHITE/ORANGE A 16 STR PVC WHT/ORG
    Notes: 　
    A = STOCKED STRIPE COLORS.
    P = STRIPE COLORS ON STOCK SOLID COLORS. STRIPING ADDER OF $8.00/M' FOR1 OR 2 STRIPES. 10000' MINIMUM ORDER FOR COLOR COMBINATION.PUT-UP WILL BE SUBJECT TO TWO PIECES (+ OR -) 10% PER SPOOL
    　
    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Conductors AWG Stranding Conductor Material
    1 16 19x29 TC - Tinned Copper
    Insulation
    Insulation Material:
    Insulation Material Wall Thickness (in.)
    PVC - Polyvinyl Chloride .010
    Overall Insulation
    Overall Cabling
    Overall Nominal Diameter: 0.079 in.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    EU CE Mark: Yes
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2006
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Military Specification: MIL-W-16878/1
    MIL Spec Rating: 600 V, 105°C






    (Type B) MIL-W-16878/1-PVC
    600V, 105°C

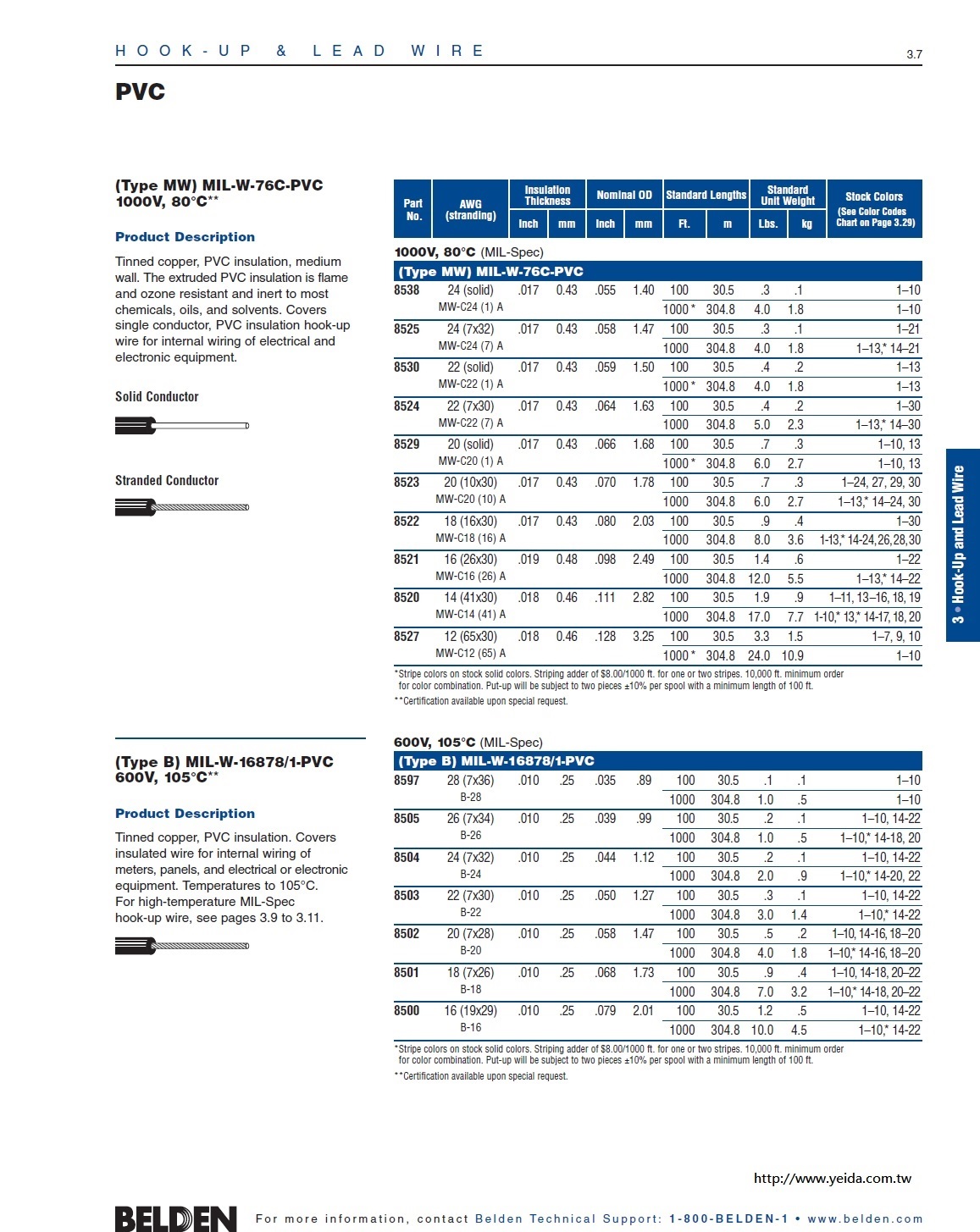

    Product Description
    Tinned copper, PVC insulation. Covers
    insulated wire for internal wiring of
    meters, panels, and electrical or electronic
    equipment. Temperatures to 105°C.
    For high-temperature MIL-Spec
    hook-up wire, see pages 3.9 to 3.11.
