    Belden 7804P Composite - SMPTE 311M HDTV Cable CMP 2芯光纖+鐵氟龍影音傳輸線屬plenum级的複合摄像机電纜(柔軟堅韌質優可用于演播室和轉播車的數位攝影機)
    看原圖
    		5656164

    商品編號: Belden-7804P

    Belden7804P Composite - SMPTE 311M HDTV Cable CMP 2芯光纖+鐵氟龍影音傳輸線屬plenum级的複合摄像机電纜(柔軟堅韌質優可用于演播室和轉播車的數位攝影機)

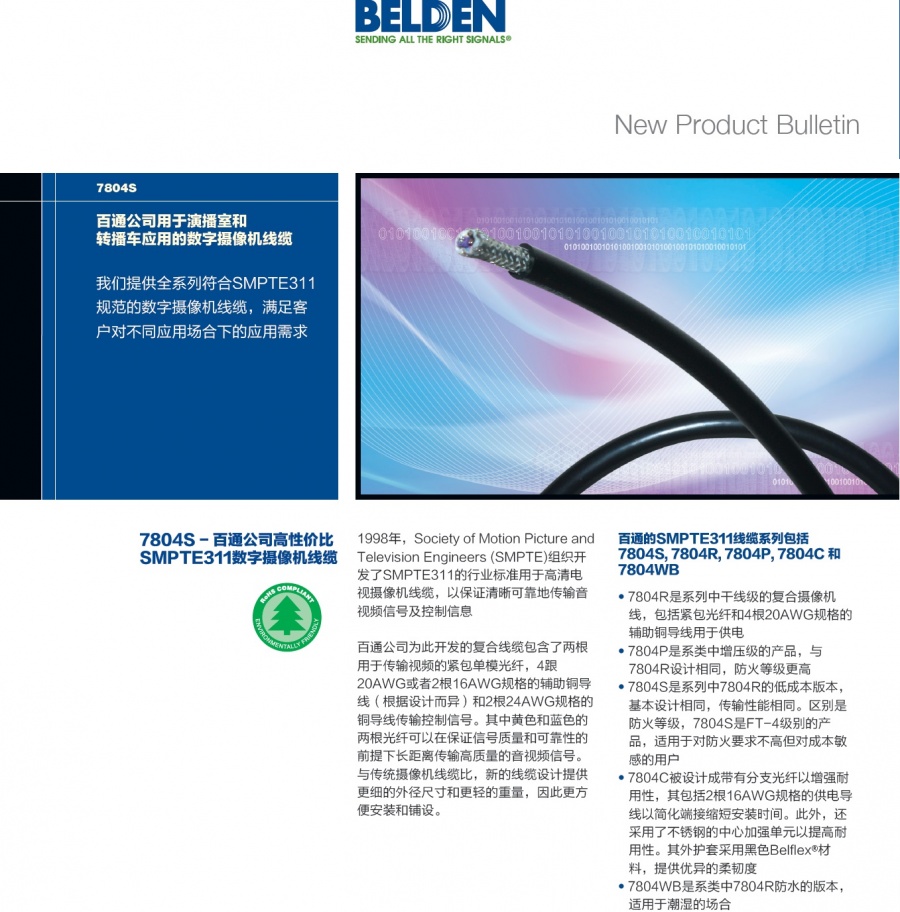

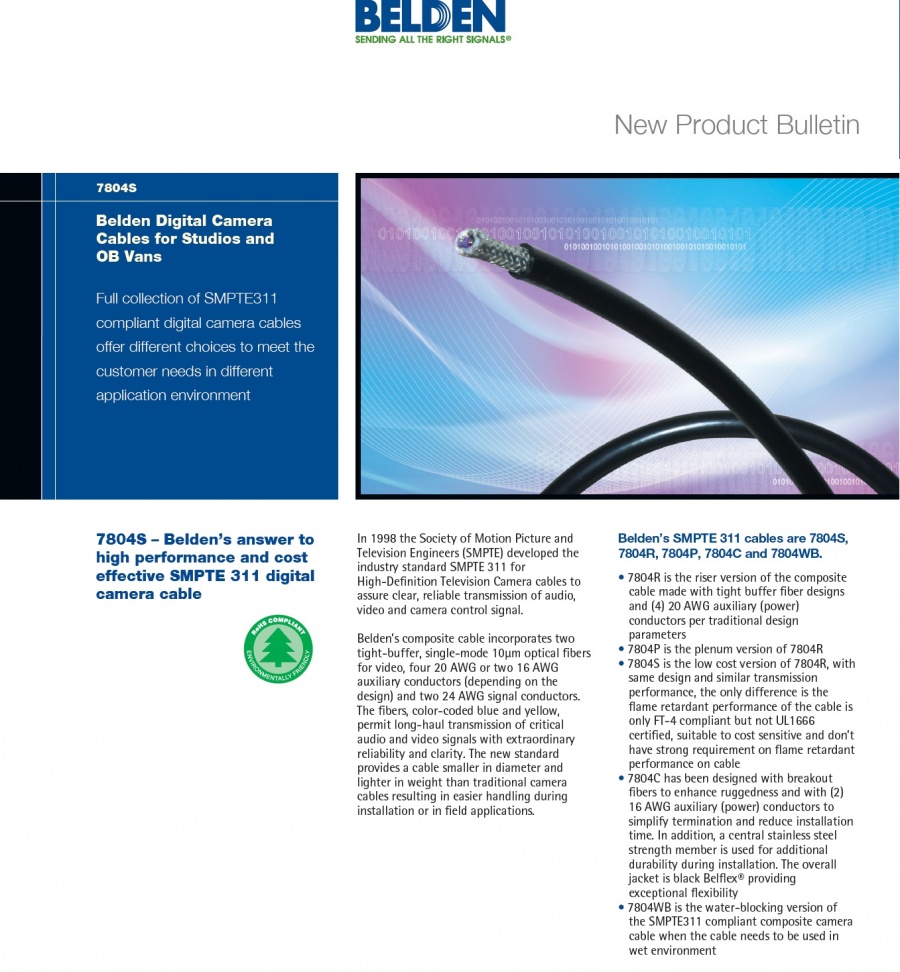

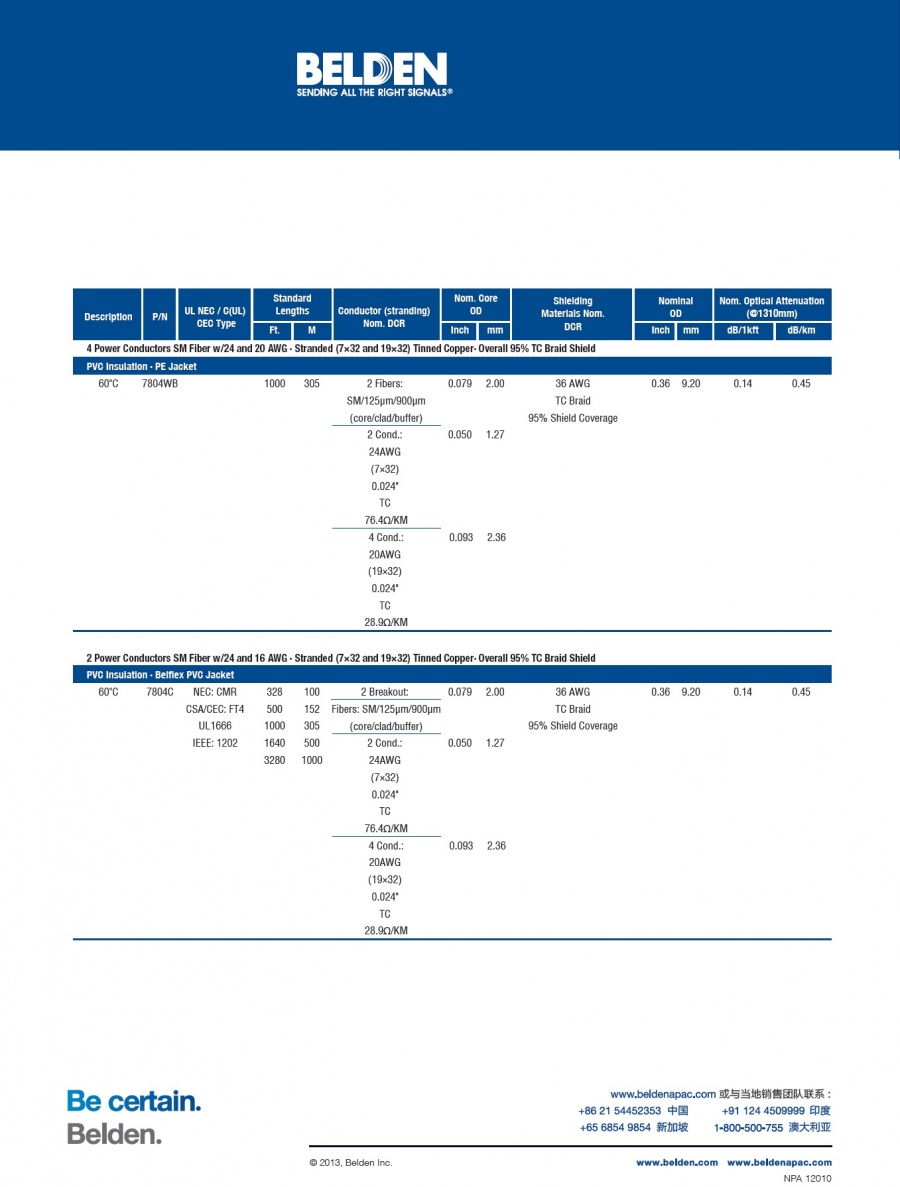

    •7804R是系列中干线级的复合摄像机线，包括紧包光纤和4根20AWG规格的
    辅助铜导线用于供电
    　

    • 7804P是系类中增压级的产品，与
    7804R设计相同，防火等级更高

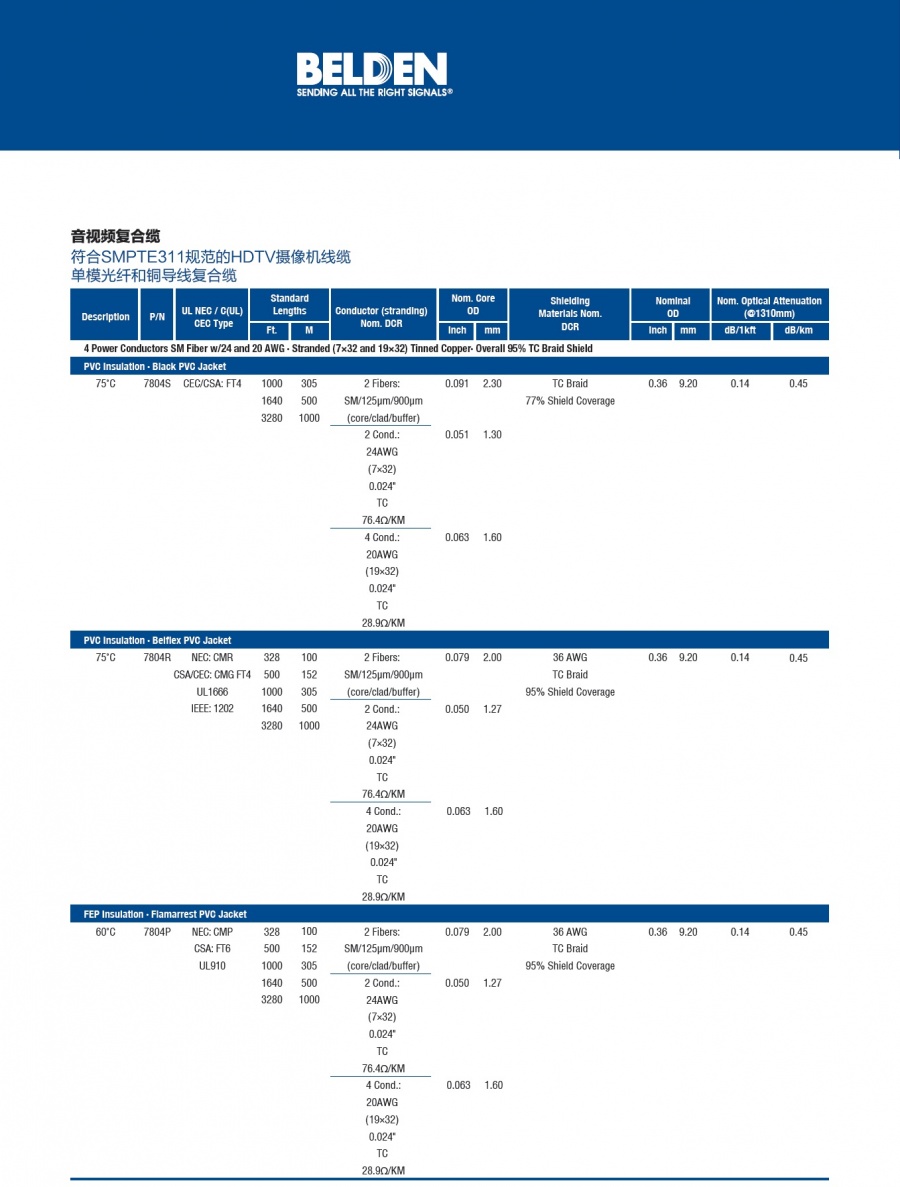

    7804P
    		    Composite - SMPTE 311M HDTV Cable
    4 power conductors, SM fibers w/24 and 20 AWG stranded (7x32 and 19x32) TC conductors, PVC insulation, TC braid shield (95% coverage), Flamarrest® jacket.    		 For more Information
    please call

    1-800-Belden1

    Click here for Certificate
    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    7804P 0101000 1,000 FT 63.000 LB BLACK 　 COMPOSITE CAMERA CABLE PVC
    7804P 0101640 1,640 FT 101.680 LB BLACK 　 COMPOSITE CAMERA CABLE PVC
    7804P 0103280 3,280 FT 203.360 LB BLACK 　 COMPOSITE CAMERA CABLE PVC
    7804P 010500 500 FT 33.000 LB BLACK 　 COMPOSITE CAMERA CABLE PVC
    Usage (Overall)
    Suitable Applications: Camera Cable compliant with SMPTE 311M
    Twisted Pair
    Physical Characteristics
    Individual Shield
    Multi Conductor
    Physical Characteristics
    Conductor
    AWG:
    # Conductors AWG Stranding Conductor Material Dia. (in.)
    2 24 7x32 TC - Tinned Copper 0.024
    4 20 19x32 TC - Tinned Copper 0.037
    Insulation
    Insulation Material:
    Insulation Material Dia. (in.) AWG
    FEP 0.054 20
    FEP 0.038 24
    Insulation Color Code Chart:
    Number Color Description
    1 Red 24 AWG
    2 Gray 24 AWG
    3 White 20 AWG
    4 Black 20 AWG
    5 White/Black 20 AWG
    6 Black/White 20 AWG
    Individual Shield
    Electrical Characteristics
    Nom. Conductor DC Resistance:
    Description DCR @ 20°C (Ohm/1000 ft)
    24 AWG 23.300
    20 AWG 8.800
    Nominal Outer Shield DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    3.500
    Fiber
    Physical Characteristics
    Fiber Type: Single Mode/125/900 Micron
    Number of Fibers: 2
    Mode Field Diameter @ 1310nm: 9.5 +/-1 microns
    Clad Diameter: 125 microns
    Core-clad Concentricity Error: < to 1 micron
    Primary Coating Material: Acrylate
    Buffer Tube Diameter: 900 microns
    Buffer Tube Material: PVC - Polyvinyl Chloride
    Buffer Tube Color Code Chart:
    Number Color
    1 Blue
    2 Yellow
    Optical Characteristics
    Maximum Attenuation @ 1310nm: 0.8 dB/km
    Physical Characteristics (Overall)
    Conductor
    Outer Shield
    Outer Shield Material:
    Type Outer Shield Material Coverage (%)
    Braid TC - Tinned Copper 95.000
    Outer Jacket
    Outer Jacket Material:
    Outer Jacket Trade Name Outer Jacket Material
    Flamarrest® PVC
    Strength Member
    Overall Strength Member Diameter: .079
    Strength Member Material: 302 Stainless Steel
    Overall Cable
    Overall Nominal Diameter: 0.259 in.
    Mechanical Characteristics (Overall)
    Operating Temperature Range: -20°C To +60°C
    Bulk Cable Weight: 70 lbs/1000 ft.
    Max. Recommended Pulling Tension: 450 lbs.
    Min. Bend Radius/Minor Axis: 2.500 in.
    Flex Cycle Rating: UL1581, Sec. 1582: 15,000 Cycles @ 3.6
    Crush Resistance: Compression, FOTP-41: 397 lbs.
    Impact Resistance: FOTP-25: 20 Cycles @ 1.32 lbs.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    NEC/(UL) Specification: CMP
    CEC/C(UL) Specification: CMP
    EU Directive 2011/65/EU (ROHS II): Yes
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 09/23/2011
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Other Specification: SMPTE 311M
    Flame Test
    UL Flame Test: UL910 Steiner Tunnel
    CSA Flame Test: FT6
    Suitability
    Suitability - Indoor: Yes
    Suggested Connectors: SMPTE 304M Connectors
    Plenum/Non-Plenum
    Plenum (Y/N): Yes
    Non-Plenum Number: 7804C, 7804R
    Electrical Characteristics (Overall)
    Other Electrical Characteristic 1: Auxillary Conductors: DC Loop Resistance - 30 Ohms/km nom. (9.1 Ohms/1000ft.) Min. Insullation Resistance - 10, 000 Megaohms x km Dielectric Strength - 1750 V RMS. Signal Conductors: DC Loop Resistance - 150 Ohms/km nom. (45.7 Ohms/1000 ft.) Insulation Resistance - 10, 000 Megaohms/1000 ft. Dielectric Strength: 1750 V RMS
    Notes (Overall)
    Notes: Bend Radius is based upon (FOTP-37) @ 20°C. Other conductor counts/diameters available by special order.
