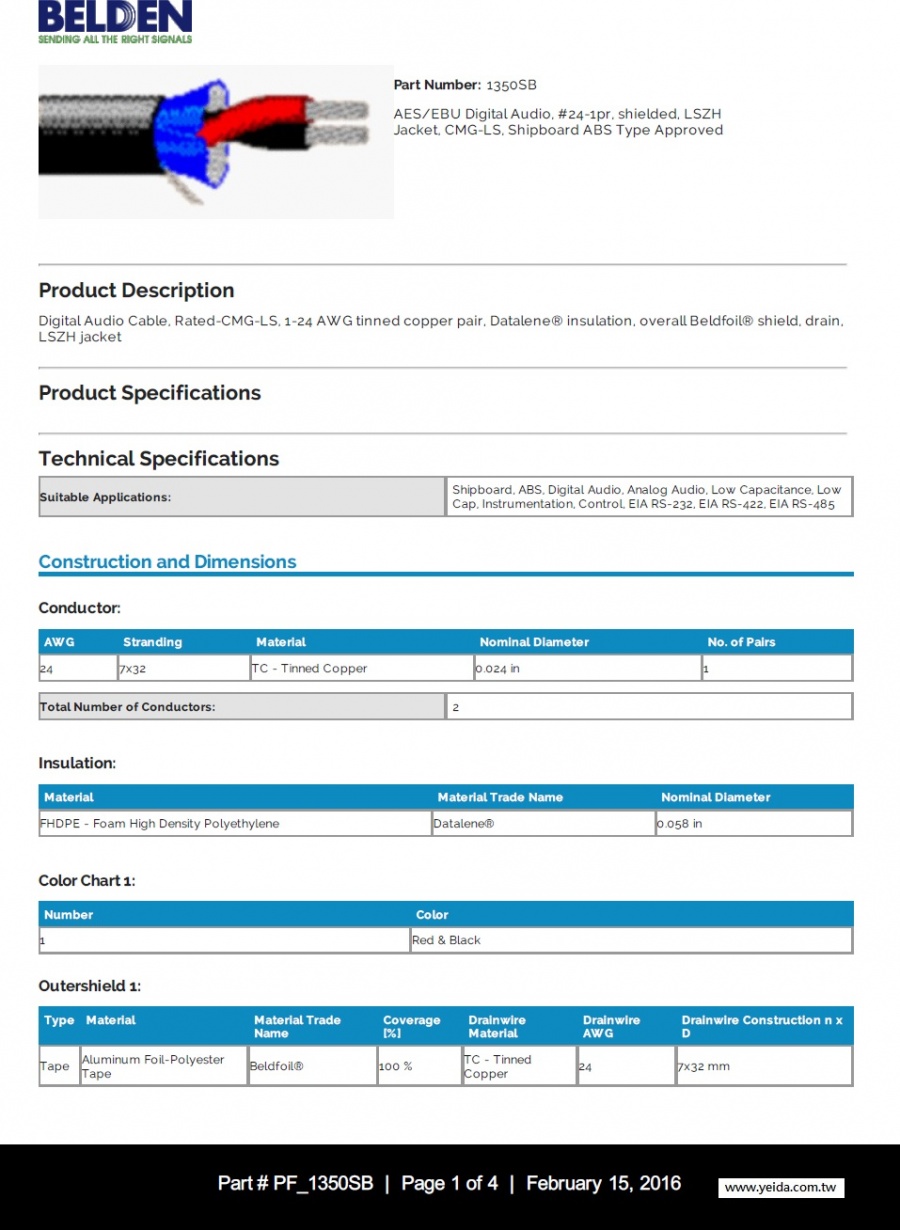

    Belden 1350SB AES/EBU Digital Audio, #24-1pr, shielded, LSZH Jacket, CMG-LS, Shipboard ABS Type Approved 船舶認證聲音傳輸電纜,(低煙無毒)
    看原圖
    		30182604


    商品編號: Belden-1350SB

    1350SB AES/EBU Digital Audio, #24-1pr, shielded, LSZH Jacket, CMG-LS, Shipboard ABS Type Approved 船舶認證聲音傳輸電纜,(低煙無毒)

    1350SB

    Suitable Applications:

    		 Shipboard, ABS, Digital Audio, Analog Audio, Low Capacitance, Low Cap, Instrumentation, Control, EIA RS-232, EIA RS-422, EIA RS-485

    Construction and Dimensions

    Conductor:

    AWG Stranding Material Nominal Diameter No. of Pairs
    24 7x32 TC - Tinned Copper 0.024 in 1

    Total Number of Conductors:

    		 2

    Insulation:

    Material Material Trade Name Nominal Diameter
    FHDPE - Foam High Density Polyethylene Datalene® 0.058 in

    Color Chart 1:

    Number Color
    1 Red & Black

    Outershield 1:

    Type Material Material Trade Name Coverage [%] Drainwire Material Drainwire AWG Drainwire Construction n x D
    Tape Aluminum Foil-Polyester Tape Beldfoil® 100 % TC - Tinned Copper 24 7x32 mm

    Outerjacket 1:

    Material Nominal Diameter
    LSZH - Low Smoke Zero Halogen 0.179 in

    Electrical Characteristics

    Conductor DCR:

    Nominal Conductor DCR Nominal Outer Shield DCR
    25.7 Ohm/1000ft 18.1 Ohm/1000ft

    Capacitance:

    Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
    13.4 pF/ft 26 pF/ft

    Impedance:

    Nominal Characteristic Impedance
    100 Ohm

    High Frequency (Nominal/Typical):

    Nom. Insertion Loss
    0.57 db/100ft
    0.84 db/100ft
    0.88 db/100ft
    1.01 db/100ft
    1.18 db/100ft
    1.22 db/100ft
    1.37 db/100ft
    1.55 db/100ft
    1.6 db/100ft
    1.79 db/100ft
    2.03 db/100ft
    2.09 db/100ft
    2.36 db/100ft
    2.73 db/100ft
    2.84 db/100ft
    4.01 db/100ft

    Delay:

    Nominal Velocity of Propagation (VP) [%]
    79 %

    High Freq:

    Frequency [MHz]
    0.384 MHz
    0.7056 MHz
    0.768 MHz
    1.024 MHz
    1.4112 MHz
    1.536 MHz
    2.048 MHz
    2.8224 MHz
    3.072 MHz
    4.096 MHz
    5.6448 MHz
    6.144 MHz
    8.192 MHz
    11.2896 MHz
    12.288 MHz
    24.576 MHz

    Current:

    Max. Recommended Current [A]
    2.75 Amps per conductor @ 25°C

    Inductance:

    Nominal Inductance
    0.18 µH/ft

    Voltage:

    UL Voltage Rating
    300V RMS

    Use

    Suitability - Indoor:

    		 Yes

    Suitability - Outdoor:

    		 Yes

    Suitability - Sunlight Resistance:

    		 Yes

    Max Recommended Pulling Tension:

    		 16.5 lbs

    Safety

    CSA Flammability:

    		 FT4

    ISO/IEC Flammability:

    		 60332-1,60332-3-22 (Category A)

    IEEE Flammability:

    		 1202

    UL Flammability:

    		 UL1685 FT4 Loading, Limited Smoke

    Temperature Range

    Operating Temp Range:

    		 -30°C To +75°C

    UL Temp Rating:

    		 75°C

    Mechanical Characteristics

    Min Bend Radius/Minor Axis:

    		 1.75 in

    Part Number

    Standards

    CA Prop 65 (CJ for Wire & Cable):

    		 Yes

    CEC/C(UL) Specification:

    		 CMG-LS

    IEEE Specification:

    		 Std. 45 Clause 23

    MII Order #39 (China RoHS):

    		 Yes

    NEC/(UL) Specification:

    		 CMG-LS

    Other Specification:

    		 UL444, AES/EBU, ABS Type Approval Certificate 06-HS184641D

    EU Directive Compliance:

    		 EU Directive 2003/11/EC (BFR)

    EU CE Mark:

    		 Yes
